Handspring Visor Edge Flip Cover Spring Replacement

Geschrieben von: Blaize Steiger
  • Kommentare: 0
Handspring Visor Edge Flip Cover Spring Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

3 - 7 Minuten

Einleitung

  1. T4sNMKrEsPxnlwcE
    T4sNMKrEsPxnlwcE
    3BWFTbYKDZYotF44

    • Open the flip cover so that the tab on the back is easy to access.

    • Place the Visor Edge face down.

    • Identify the tab connecting the flip cover to the PDA located at the top of the backside.

    • Gently push the tab forward.

    • Do not pull on the flip cover in an attempt to remove it from the PDA.

  2. mAAuUMu461HWJJN1

    • Once flip cover is removed, turn over and remove the four 3.9 mm screws connecting the hinge.

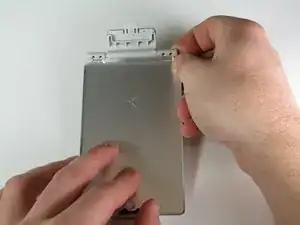

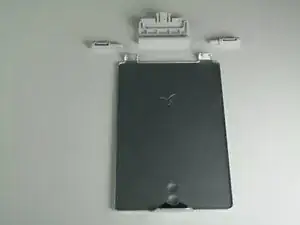

  3. fdoEB11UHJRYEmhQ
    fdoEB11UHJRYEmhQ
    41oNUUlZceG2cuJB

    • Gently pull away the plastic hinge from the cover.

    • Be careful to pull out evenly and not bend the plastic, as it can crack.The spring may also shoot out if it is not pulled out evenly.

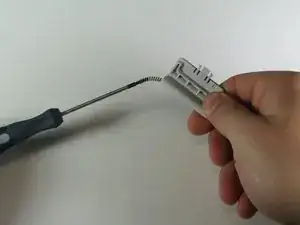

  4. Tpsp3eaYQXl1p26H

    • Turn the hinge piece on its side or use a screwdriver to pull out the spring.

    • Reinsert new spring.

Abschluss

To reassemble your device, follow these instructions in reverse order.
