In this guide, you will learn how to replace the screen on the Handspring Visor Edge PDA. You will need tweezers, a Phillips screwdriver, and a spudger to get under the screen.
Werkzeuge
-
-
Open the flip cover so that the tab on the back is easy to access.
-
Place the Visor Edge face down.
-

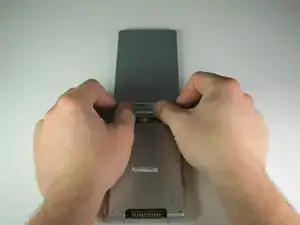

Identify the tab connecting the flip cover to the PDA located at the top of the backside.
-
Gently push the tab forward.
-
-
-

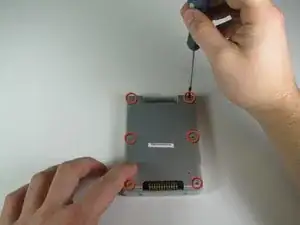

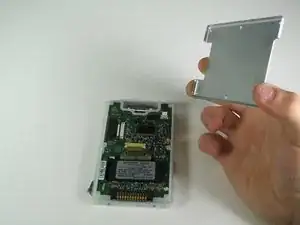

Remove the six 4.1 mm Phillips screws from the back plate using the #00 Phillips Scewdriver.
-
-
-

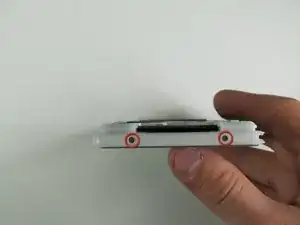

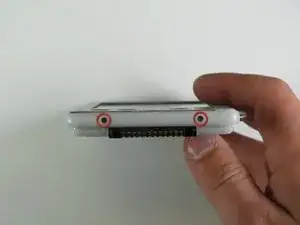

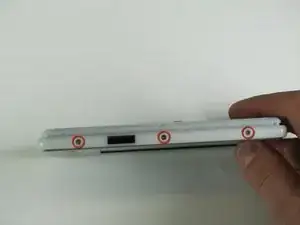

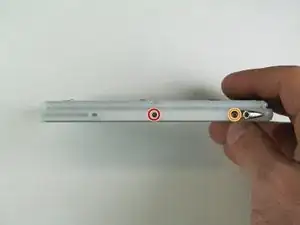

Remove the four 2.6 mm Philips screws that are on the sides of the frame.
-
Remove the 3.9 mm Philips screw holding the stylus holster to the frame.
-
-
-

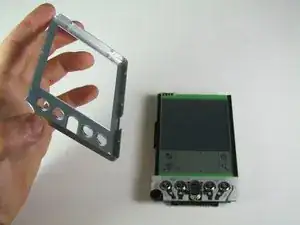

Flip over the PDA.
-

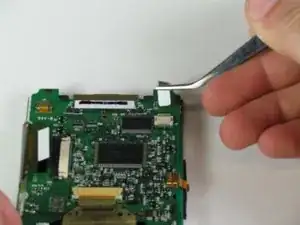

Use the tweezers to remove the ribbon cable attaching the screen to the circuit board.
-
-
-

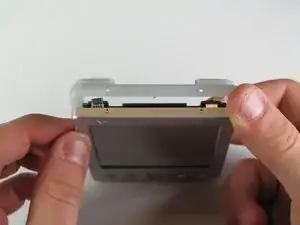

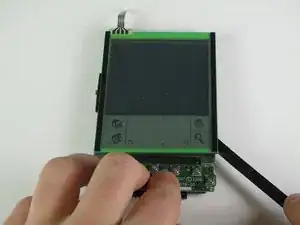

Wedge the spudger in between the glass and the metal frame.
-
Slide the spudger down the length of the screen to detach from the frame.
-

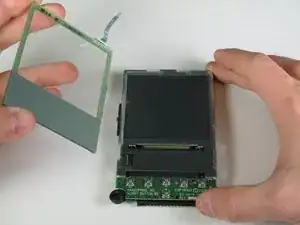

With your hands, pry the screen up from the detached side. The screen will pop off.
-
To reassemble your device, follow these instructions in reverse order.
