Handy-Akku verdoppeln

Geschrieben von: Terrance
  • Kommentare: 64
Handy-Akku verdoppeln

Schwierigkeitsgrad

Sehr schwierig

Schritte

7

Zeitaufwand

45 Minuten

Einleitung

Smartphones haben keine lange Akkulaufzeit, unter normaler Benutzung meistens nur einen Tag oder sogar weniger. Diese Anleitung zeigt dir, wie du die Leistung verdoppeln kannst: doppelte Zeit, doppelter Spaß.

Hinweis:

Mit Lithium-Ionen Akkus spielt man nicht! Wenn du dir nicht sicher bist was du tust lass es sein!

Die Modifikation von Li-Ion Akkus verstößt in manchen Ländern gegen geltende Gesetzt. Du bist dafür verantwortlich nichts Illegales zu tun!

FAQs (zumindest ein wenig)

Q: Kann ich alte und neue Akkus kombinieren?

A: Kurze Antwort: Ja. Lange Antwort: Google es.

Q: Kann ich das auch mit nicht-Samsung Geräten machen?

A: Ja, dies ist nur ein Beispiel. Fast jedes Gerät, bei dem sich die Rückseite aufschneiden lässt, kann auch mehrere Akkus verkraften.

Q: wie kann man am Besten die Akkuspannungen ausbalancieren?

A: meine Meinung dazu: Entlade die Akkus unter 3,5 V oder bis sie sich von selbst ausschalten. Das ist aus Sicherheitsgründen sowieso besser. .

Q: Was ist zu tun, wenn ein Akku in Brand gerät?

A: (sollte nicht passieren, wenn du die Anleitung genau befolgst) Wenn es noch geht, schneide die Kabel ab. Wirf die Akkus in Wasser und gehe ein paar Schritte zurück. Informiere alle Personen in der Nähe. Berühre die Akkus nicht, bis sie ganz abgekühlt sind.

  1. Yn5ZfpOsTZuNbNHd

    • WARNUNG: Fragile Folien-Lithium-Ionen Akkus. Beschädigung der Akkus kann zu Bränden führen.

    • Eine Sache vorweg. Doppelte Anzahl an Akkus für die doppelte Laufzeit. Da gibt's keine Magie!

    Safe, retro-fitted double battery packs are sold. These safely enable two batteries to be soundly, neatly carried contiguously and, used consecutively by the phone. I'm astounded this dangerous, disreputable, frankly insane method is being demonstrated and recommended here. No. It is inadequate and disingenuous to state this method is being shown for informative/educational purposes. That is like Tucker Carlson saying he only asks questions and, what is wrong with asking questions ... ?

    Mrs. Cairns -

    Why bother to ask me to provide a unique user name, only to use my actual name for display purposes? Has any other user had this experience on this website?

    Mrs. Cairns -

    This madness being displayed by iFixit is doubly disturbing. With one page iFixit has drastically reduced its credibility. Thereby allowing any company to use it as an example of why THEIR products really should not be repaired with advice and/or instruction from iFixit. Undoubtedly, there are many, many companies who are privately furious that the game of built in exclusivity/obsolescence, is finally moving into its end stage. They can claim that Oh Yes, they DO believe reducing consumer waste by allowing easier domestic repair and increasing product longevity, is a Great Idea ... But, consumers really ought to wait until THEIR company produces The Correct Models, instead of simply Attempting Dangerous Domestic Repairs/Mods. These companies can then state that naturally, in keeping with the Reduce, Reuse, Recycle ethos, what better way to help ecology in the meantime, than continuing to buy THEIR products which, decreases waiting time for the (secretly putative) release date of The Correct Model/s?

    Smh

    Mrs. Cairns -

    Fellas. This is a very old guide. Very likely obsolete. Modern smartphones have internal batteries very difficult to access, and parts gets ridiculously tinier and tinier. It's very not recommend to practice this guide if you are not a skilled DIYer or electronics guy. Please, be safe.

    Thank you for your support for years!

    -- The author

    Terrance -

  2. YarOiCYAYjuHSEgE
    YarOiCYAYjuHSEgE
    Hl6GVJhGtunKkOQx
    3i3tPQ3FGjVWLkcY

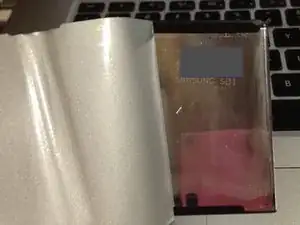

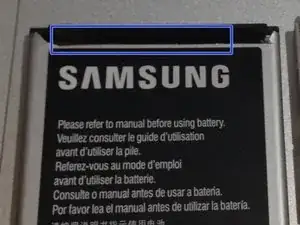

    • Ziehe die Folie ein bisschen von EINEM der Akkus ab.

    • Schneide von der anderen Folie auf beiden Seiten ein kleines Stück ab, bis man das schwarze Plastik-PCB-Cover leicht entfernen kann.

    PCB cover (can ) be...

    Angel -

  3. 6IVClyeeVMQdBXf6

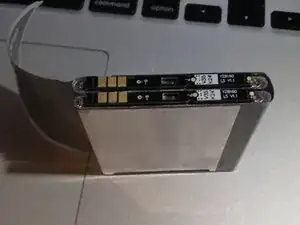

    • Tue 2 Batterien in einer Linie zusammen, Bauch zu Bauch. Binde sie mit der abgezogenen Folie zusammen.

    • Aber nicht zu fest!

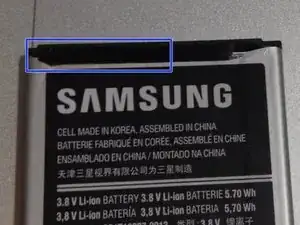

    • Entferne beide schwarzen Plastik-PCB-Abdeckungen.

  4. ayPwSaDo2b6lQAWx
    ayPwSaDo2b6lQAWx
    jD6nhkMxakZBxCxn

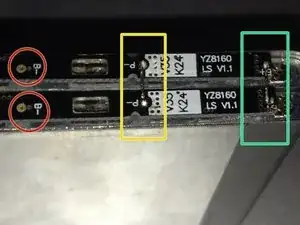

    • Sei dir, bevor du die beiden Batterien verbindest, sicher, dass der Volt-Unterschied der beiden weniger als 50mV beträgt! Neue Batterien haben sehr wahrscheinlich circa 3.9 Volt, aber es variiert.

    • Verlöte als erstes mit einem Lötkolben B+ mit B+.

    • Dann verlöte P- mit P-.

    • Lass beide B- offen!

    • Einer weitere Warnung! Sei vorsichtig mit dem B- Testpunkt(Kontakt). SEI BEHUTSAM MIT DIESEN KONTAKTEN! B- Punkte sind nicht mit "Schutzkreisläufen" geschützt. Verbinde B- Punkte NICHT miteinander!

    • Auch klar, schließe NIEMALS zum Beispiel B- zu B+, oder P- zu B+, oder P- zu B- kurz!

  5. PTfMJIpnDyyXvJL2
    PTfMJIpnDyyXvJL2
    GNhOs5ywWnpmeCQC

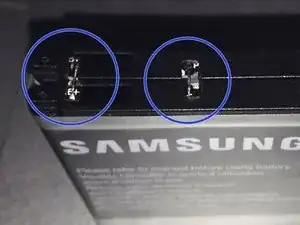

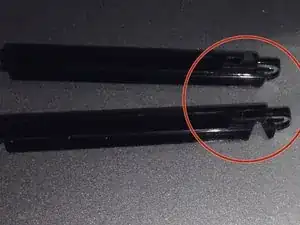

    • Schneide bei den Verbindungskabeln 2 Kerben in beide Plastik-PCB-Abdeckungen, so dass die Kabel die Abdeckung nicht herausspringen lassen können.

    • Diese sind nicht ganz fertig.

    • So ist es richtig.

    • Befestige beide PCB-Abdeckungen wieder. Wenn du die Batterien zu fest gemacht hast musst du sie nochmal leichter zusammenbinden, und erst später fester ziehen.

  6. GuyEdVoKP2O5uFBS

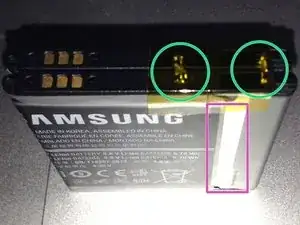

    • Benutze ein bisschen Tape um die Batterien vollständig zu verbinden.

    • Decke die Kerben und Kabel mit Tape ab. Das gezeigte PI/Kapton Tape ist die beste Wahl, irgendwas was dünn genug ist und isoliert, ist ok.

    • Die Folie der Batterie ist ein bisschen zu kurz für 2 Batterien. Das übergebliebene Metall sollte auch bedeckt sein. Sie sind das positiv geladene Material. Du willst ja nichts kurzschließen, oder? (Diese Fotos zeigen nicht, wie es abgedeckt sein sollte.)

  7. JinhDIpVDcDsaiji
    JinhDIpVDcDsaiji
    mZYtCUCeQcFTBEXi
    JmvlyT6LBAVBkPMJ

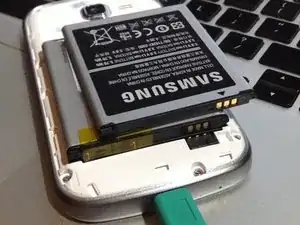

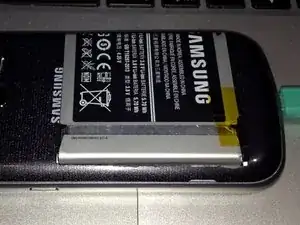

    • Doppelbatterie im Gegensatz zu einer einzelnen Batterie.

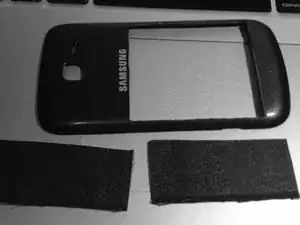

    • Die Doppelbatterie wird nicht mehr in das Rückgehäuse passen, darum schneide ein Stück raus, so dass sie wieder hineinpasst.

    • (Noch nicht ganz) Fertig. Vielleicht solltest du, wenn möglich, eine Extraabdeckung in einem 3D Drucker erstellen und auf das bereits bestehende und ausgeschnittene Rückgehäuse kleben.

    • Ich habe einen 3D Druck gemacht und eine angepasste RFID Karte als Backcover verwendet. Funktioniert genaus so gut!
