Hannspree Hannspad SN1AT71 Front and Rear Camera Replacement

Geschrieben von: matthew vandeventer
  • Kommentare: 0
Hannspree Hannspad SN1AT71 Front and Rear Camera Replacement

Schwierigkeitsgrad

Easy

Schritte

12

Zeitaufwand

10 Minuten

Einleitung

After getting into the Hannspree Hannspad SN1AT71, the Camera is fairly easy to replace.

  1. crTcDhXRZNBTsaSK

    • Place the tablet screen side up.

    • Make sure the device is turned off to avoid damage.

  2. gSRUtEKDofl4hBhl
    gSRUtEKDofl4hBhl
    6CHYhpR1QVtgRUn2

    • Use the metal spudger to press an opening between the screen and back cover.

    • The plastic tabs are located on each corner of the back cover.

    • Be careful, as the plastic tabs are delicate.

  3. mVBNelWYYH1aIfDF

    • Wedge the plastic opening tool between the screen and the back panel to prevent re-engagement

  4. ni1ZWURpk3R6Wb1J
    ni1ZWURpk3R6Wb1J
    qXhK51xor5QV33Jc

    • Slide the metal spudger around the casing to separate it from the inside of the tablet.

  5. ZclvyJI6AVtMUUpG
    ZclvyJI6AVtMUUpG
    jGHJfaGIm1nAJIfc

    • Flip the tablet over so the screen side is down after all the tabs are separated.

    • Remove the back panel by delicately lifting it straight up.

  6. B11OBycQTcpFojHZ
    B11OBycQTcpFojHZ
    hMwPcutvYtYtIgch

    • Remove the adhesive tape from the power connection cables.

  7. LS3WeLD6TnFYqbGQ
    LS3WeLD6TnFYqbGQ
    TSD5oAneSPp3h5DU
    BCIlRtDA2RpiJreE

    • Instructions for desoldering can be found on the iFixit website.

    • The soldering iron is hot. It can burn you and it can cause damage to the wires and motherboard.

    • Grab hold of the red wire using the tweezers.

    • Desolder the red wire connection from the motherboard using the tip of the soldering iron.

    • Move the wire connection away from the motherboard.

    • Do not let the red wire connection touch other wires or the motherboard.

  8. BQnqsVJXiE2VxjTw
    BQnqsVJXiE2VxjTw
    UHbJ4ClHYLKAXKpZ
    keeG3i4kfKuobsOR

    • Desolder the black and yellow wire connection from the motherboard by following the previous step.

    • When moving the wire connections, do not let the red wire connection touch other wires or the motherboard.

  9. WXnDoRPD2WCf46VX
    WXnDoRPD2WCf46VX
    IiFkUwNOvER1N3xO
    qJiSnqXrKqlTGpQb

    • Insert the flat end of the nylon spudger between the battery and the case.

    • The battery is connected to the tablet with an adhesive tape and will come free slowly.

    • Do not puncture or bend the battery while removing. If your battery is swollen, take appropriate precautions.

  10. Dn1j2r64eINlvUEh
    Dn1j2r64eINlvUEh
    efDGkmIhTDGiMs4c

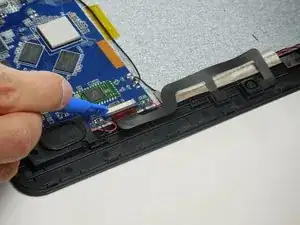

    • Identify the ribbon connecter attached to the camera and where it connects to the circuit board.

    • The two cameras are connected with one ribbon cable.

    • Zero insertion force connector.

  11. YPLJRfGMBiyAVjBn
    YPLJRfGMBiyAVjBn
    eHViRaUnyJ5SJ2Ug
    IPDn4fNXW3recDhy

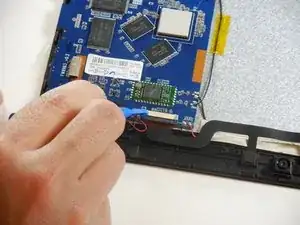

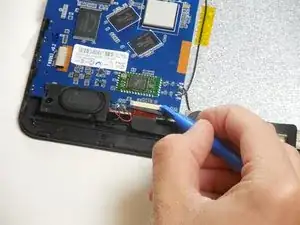

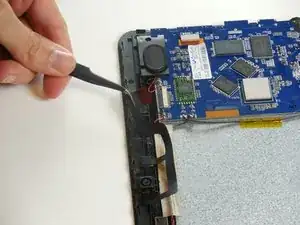

    • Disconnect the sliding zero insertion force (ZIF). Use the plastic opening tool or a fingernail to slide the tab out, then pull the cable out.

  12. oTFEoKCxbEVkx3RK
    oTFEoKCxbEVkx3RK
    YDV1HDgbMLcSwnAC
    OIqwuVcadaN4vE5u

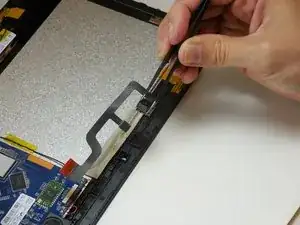

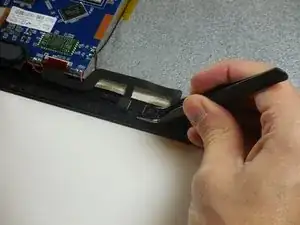

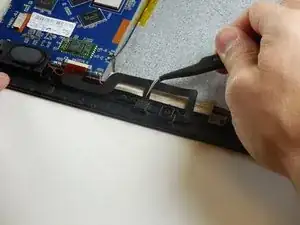

    • Pull the cameras out of their resting places in a straight upward motion.

Abschluss

To reassemble your device, follow these instructions in reverse order.
