Hard Drive Replacement Guide

Geschrieben von: Steven Park
  • Kommentare: 0
Hard Drive Replacement Guide

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

This guide is for replacing the hard drive on a Gateway LT2104u Laptop.

  1. wLsMeQZNNAvQqIXk

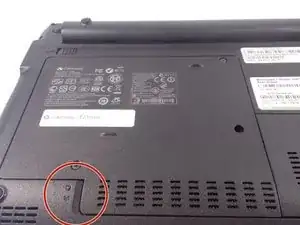

    • Use a Phillips #0 screwdriver to loosen the screws.

    • The screws are designed to remain in the panel.

  2. TBZrSRgoPbDm2XXN
    TBZrSRgoPbDm2XXN
    J4vQjJJ6EwBqNVKs
    CQJDHkJErAFng5Ee

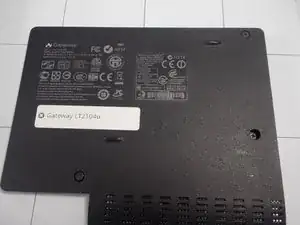

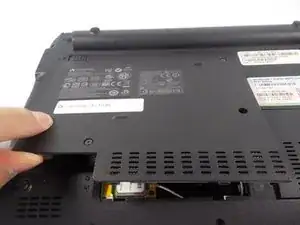

    • To open the panel, use a plastic opening tool or your finger.

    • If there is difficulty opening the panel, than the screws may not be lose enough.

  3. PNwXDWGWlhHXQiOr
    PNwXDWGWlhHXQiOr
    HbFknltfM1ISDICg

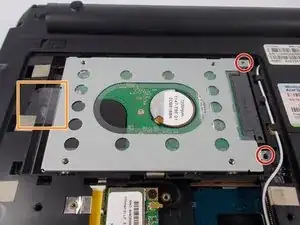

    • Use the Phillips #0 screwdriver to unscrew the two 5mm screws.

    • Remove the hard drive by using your fingers to pull firmly on the clear tab.

  4. GScNW3WsKnMEE1wp

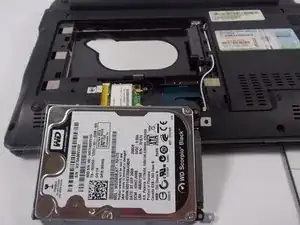

    • You have successfully removed the hard drive from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
