Einleitung

This guide will show you how to remove the old front brake pads and then install new ones.

Brake pads should be changed at the owner's discretion. Most brake pads will make a squeaking or scraping noise when they are approaching the end of their life.

  1. ccIsTJo112AtbMo5
    ccIsTJo112AtbMo5
    UXfPgcF1enfFWtLU
    • For the best access to the brake pads, we recommend securing the motorcycle in an upright position.

    • If you do not have a motorcycle lift, you will still be able change the brake pads, but it is still a good idea to secure the front wheel in place.

    • Be sure to allow time for the brake pads to cool completely before working on them. It may take ten to twenty minutes, especially if the motorcycle has just been ridden.

  2. mOxoLiZenMuWMBix
    • Allowing the brake assembly to dangle from the brake lines can cause damage to the line.

    • Hang the caliper on a metal hanger attached to the handlebars or headlights.

  3. DJIdoeY4Cmd1ucCA
    DJIdoeY4Cmd1ucCA
    tUQE5nKRNYdSu3lg
    L3YHQ1gdukijTfbL
    • Using a 1/4" hex head or allen wrench, unscrew the two bolts holding the front brake assembly to the fork.

    • Unscrew and remove the bottom bolt, but do not completely remove the top bolt yet.

  4. 65SXV1H3o1dQTHKN
    65SXV1H3o1dQTHKN
    65HcamJiN6hXOqu4
    WH6L6pqBGJVpCYVf
    • Supporting the brake assembly with one hand, remove the top bolt.

    • Carefully slide the brake off of the brake rotor and hang it from the metal hanger.

  5. E2PPJx6VZiXYZEdK
    E2PPJx6VZiXYZEdK
    gbFiR4VyOG6xPb4e
    a6uvrpYamYgHsQvH
    • Using a 5/16 wrench, remove the bolt holding the stationary brake pad cover in place.

    • Remove the stationary brake pad cover from the brake assembly.

  6. PgOykQjSnFLoZt4d
    • Being careful to not let any loose parts fall out of the brake assembly, remove the stationary brake pad from the front brake assembly.

    whomever was in there last time didn’t install the spring clip correctly.

    hogdoctor -

  7. NSJZcbAYv1pWki6h
    • Remove the floating caliper and remaining brake pad from the caliper assembly.

    • The brake pad and floating caliper are not attached to each other. Be careful to not drop either the brake pad or caliper.

  8. tkbry33fcuq5u235
    • Using a can of brake cleaner, spray out the piston and inside of the brake caliper.

    • Make sure to do this over a bucket or tray; there tends to be a lot of grime inside the brake caliper and spraying it out can make quite a mess.

  9. XUV3rOvxrhDWgoNs
    XUV3rOvxrhDWgoNs
    ijlHTCmtJtUeg6VK
    jQNgRFGUt6xA1vTW
    • Using a Phillips #2 screwdriver, remove the two screws securing the cover on the master brake-fluid reservoir.

    • Carefully remove the cover of the master reservoir, making sure that you do not spill any of the brake fluid.

    • Brake fluid can cause ugly stains and scarring on cosmetic components of the motorcycle. Make sure you don't spill any.

    Many 90’s Harleys use DOT5, which doesn’t scar the paint like DOT3/4/5.1 will. The reservoir will have a label telling you which type of brake fluid to use.

    Wade Bartlett -

  10. tK5GacRcswtLqQRV
    tK5GacRcswtLqQRV
    6nfAqQvTZPHC4N4Q
    • Position the screw of a large C clamp so that the head of the screw is pressing against the inside of the brake piston.

    • It is possible to use your hands rather than a C clamp, but it is much more difficult.

    • Slowly tighten the C clamp, forcing the brake piston back into the brake cylinder until it is completely depressed.

    • Make sure that you work slowly, or else the piston will force brake fluid out of the master reservoir and all over the motorcycle.

  11. oye1pjl1jIntLYHW
    oye1pjl1jIntLYHW
    kQwgxU6r4e2ekltF
    3cexYXMvMXJ3mheG
    • To prevent spilling any brake fluid, first clean the area around the master cylinder with a clean rag, then replace the cover.

  12. LLqONEmDwFrWhgtj
    LLqONEmDwFrWhgtj
    RLn2wbKOpHLyatUk
    s2ENv1KpACndKKBV
    • Inspect the new brake pads for chips or other signs of wear.

    • Apply a moderate amount of anti-squeal compound to the back of each new brake pad.

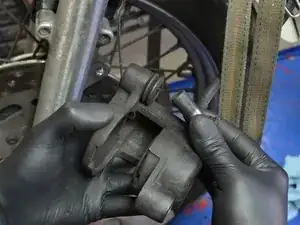

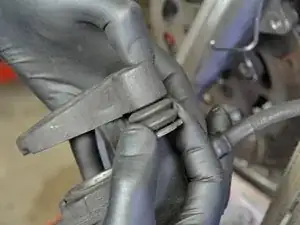

  13. ZobjJaAsG2D3oiOr
    ZobjJaAsG2D3oiOr
    kg1cgY4tU4BwWd6c
    • Using your fingers, pull the alignment peg out of its hole in the stationary caliper.

    • Apply a thin layer of grease to the alignment peg.

    • Re-install the alignment peg, but do not push it all the way in. Only push it in about half-way.

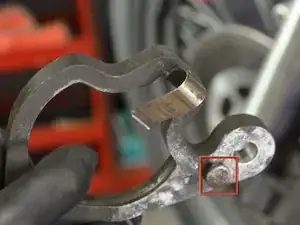

  14. uDJkdqNixDkWk3l6
    uDJkdqNixDkWk3l6
    kqQmInxEv3LisIFL
    • Make sure that the floating caliper spring is in the proper place before re-installing the floating caliper.

    • The spring should be on the same side as the alignment peg.

    • Place one of the brake pads into the floating caliper, with the anti-squeal side facing away from the spring and mount peg.

    it looks like you made the same mistake with the spring clip that the last person did. Look at the factory manual and you’ll see how you installed it improperly.

    hogdoctor -

  15. NyAQLiFNMKCbhcP1
    NyAQLiFNMKCbhcP1
    pWAHLYWhXaA42xAI
    BvX4pULJBvQXfdUD
    • Holding the brake assembly in one hand and the floating caliper in the other, gently slide the floating caliper into the front brake assembly.

    • The anti-squeal side of the brake pad should be facing away from the stationary caliper, and towards the brake piston.

    • Move the floating caliper alignment peg so that the metal tab on the floating caliper fits together with the indentation on the alignment peg.

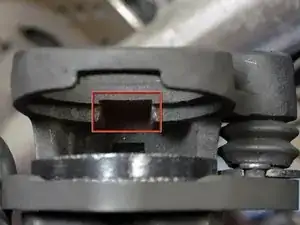

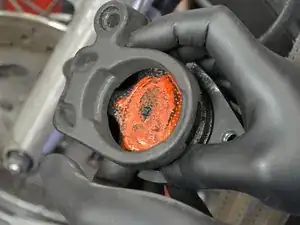

  16. gZHNma3tMqdoatBi
    gZHNma3tMqdoatBi
    FUw4nIYeSVbeUANy
    • Being careful to not dislodge the floating caliper, insert the stationary brake pad so that the tab on the brake pad fits into the corresponding slot on the stationary caliper.

    • Make sure that the abrasive side of the brake pad is facing inwards, and the anti-squeal side is facing outwards.

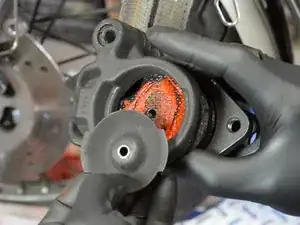

  17. pcWbbrwLjSITPTYr
    pcWbbrwLjSITPTYr
    ZILEG2WNjBOJVM2Q
    HyaMUrhJyC6gSYEh

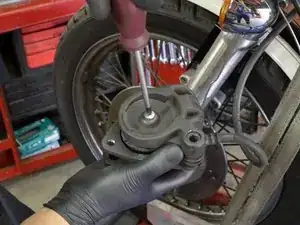

    • Using one hand to keep the brake pads from falling out, replace the cover on the stationary brake pad.

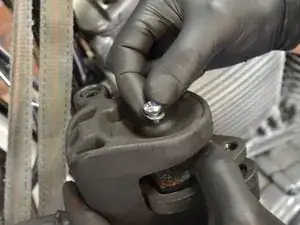

    • Insert the screw and lock washer that came with the brake pads and tighten using a Phillips #2 screwdriver.

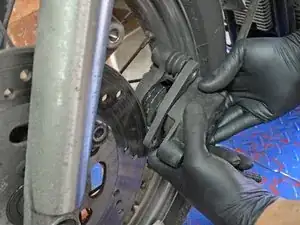

  18. LRwEr1bPPQ4ANeSu
    LRwEr1bPPQ4ANeSu
    O3OFocOlDpWWUAU3
    WyDm2hqYLCWfNqMr

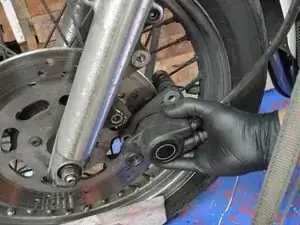

    • With the piston on the outside of the rotor, carefully slide the front brake assembly back over the rotor

    • Slide the brake assembly until the lower hole in the brake assembly aligns with the lower mount hole on the fork.

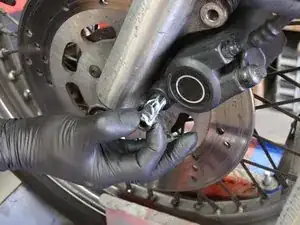

  19. 1V6BRW5pYtQ2suro
    1V6BRW5pYtQ2suro
    wuRIiVTOgWcUHNAb
    • Apply a small amount of grease on the lower brake mount screw.

    • The brake assembly should stay attached to the rotor. If it does not, go ahead and hang it from the metal hanger while you grease the screw.

    • Insert the screw into the lower mount hole.

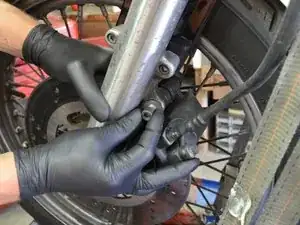

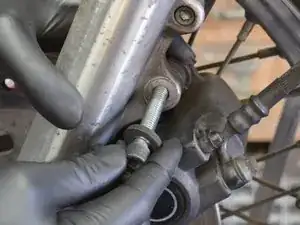

  20. yI2PVYaTXndxht4L
    yI2PVYaTXndxht4L
    TwcfSLF2APY6fqBc
    • Insert the upper retaining bolt into the upper bolt hole in the fork and brake assembly.

    • Using only your hands, tighten the bolt as much as possible.

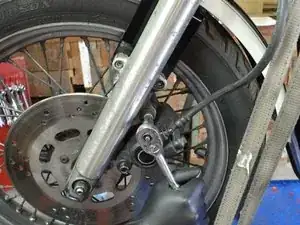

  21. Qvi2vuSjRcGojYeW
    Qvi2vuSjRcGojYeW
    UTTxGsmJcsHN5pYE
    • Using a torque wrench, tighten both screws to between 25 and 30 foot-pounds.

Abschluss

Before taking the motorcycle up to full speed on the open road, test that the brakes work by starting and stopping at low speeds in an empty street or parking lot.

Brett Hartt

Mitglied seit: 13/04/10

125814 Reputation

9 Kommentare

Thanks for taking the time to explain and for posting the detailed pictures. This was very helpful.

James -

Nice job. Was looking for a picture of that darn anti vibration clip. Thanks

Blake Will -

The spring clip is installed wrong. The brake pad will rattle. Push the brake pad in from the rotor side with the clip pushing down hard on the pad holding it in the housing. The clip is to stop the pad from rattling in the housing, not to hold it against the piston.

Frank Lock -

GOOD JOB !!! This is almost the same exact as my 98 road king brakes.

Robert Denniston -

Brett Hartt: this is so valuable for simple latin american like me. A professional tool that you are giving away. G. bless your generations forever.

Manu Costa -

I think Brett has the anti-rattle spring in the correct position, with the loop part sticking out on the same side of the mounting plate as the friction surface and rivet/lug.

My HD workshop manual emphasises “The spring clip loop and friction material must always face away from the piston”

Cheers Brett

Steve Wray -

Well dictated, easy to follow, nice to see that my “winging it” was very close to these instructions!

Mark Dupré -

Great tutorial- the photos are excellent. One think I noticed- in the manual, at least for my 1997 Sportster, the torque setting for the caliper-to-fork bolts is 25-35 FOOT-pounds, not inch-pounds. In-lbs would be too light, I think.

Phil Palombi -

The spring clip is improperly installed. Both ends should be fit between the frame and the pad. Refer to the factory service manual for the correct installation method.

hogdoctor -
