Harley-Davidson Sportster Evolution Primär-/Getriebeölwechsel

Geschrieben von: Brett Hartt
  • Kommentare: 55
Harley-Davidson Sportster Evolution Primär-/Getriebeölwechsel

Schwierigkeitsgrad

Mittel

Schritte

10

Zeitaufwand

20 Minuten - 1 Stunde

Einleitung

Diese Anleitung zeigt dir, wie man das Primär-/Getriebeöl des Evolution Motors der Harley-Davidson Sportster wechselt.

Die Evolution Sportster haben Nasskupplungen und Primärantriebe. Es wird empfohlen, den ersten Ölwechsel nach 1000 Meilen (1600 km) und danach alle 10.000 Meilen (16.000 km) einen Ölwechsel durchzuführen.

Der Hersteller empfiehlt 20w50 Öl. Achte darauf, dass das Öl, das du verwendest, für Nasskupplungen zugelassen ist. Viele Fahrzeugöle sind nicht dafür zugelassen, also empfehlen wir Öl zu kaufen, auf dem explizit draufsteht, dass es für den Gebrauch in Motorradgetrieben geeignet ist. 75w90 Getriebeöl wird hier oft durch 20w50 Motoröl ersetzt.

  1. xUwXYZUeiEgyKIP1
    xUwXYZUeiEgyKIP1
    3ZEMCTJioscPKjFG

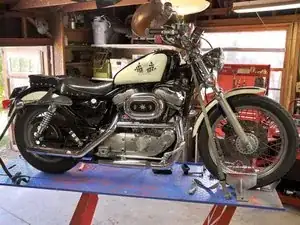

    • Wir empfehlen, das Motorrad in eine erhöhte Position zu bringen. Dies stellt eine einfache Zugänglichkeit zum Ölwechseldeckel, beste Ablaufeigenschaften und zielsicheres Befüllen sicher.

  2. FUnhLNHiLViffsLO
    FUnhLNHiLViffsLO
    1OqZVPiAnHjuQYxU
    YMvHYiunaDArfPqx

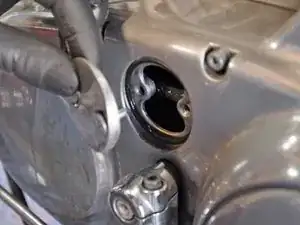

    • Löse mit einem 5/32" (fast exakt 4 mm) Sechskant- oder Innensechskant-Schraubendreher die beiden Schrauben von der Inspektionsabdeckung der Primärkette.

    • Je nach Baujahr ist die Abdeckung möglicherweise nicht rund. Sie wird jedoch an der gleichen Stelle sein und durch ähnliche Schrauben befestigt werden.

    • Nimm die Inspektionsklappe der Primärkette vom Getriebegehäuse ab.

    How do I get these off if they're real tight? I've already broken a few Allan keys trying and almost striped one of them

    Cameron lambert -

    I have same problem cannot move the inspection cover bolts -

    Skull -

    Use an impact screwdriver.

    Peter -

    Lightly tap the Allen wrench ( like driving a nail)with a rubber mallet due to aluminum corrosion. This helps free the Allen bolt

    Edmund Lincoln -

  3. FMNKxYRN11XPnYLe
    FMNKxYRN11XPnYLe
    hQKV2nGAKlfJQn1P
    JFXJE2BKAZcxgspV

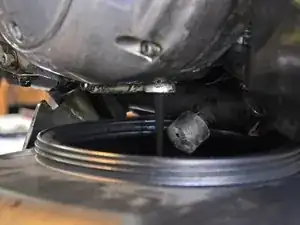

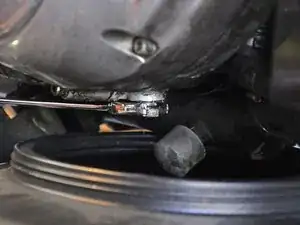

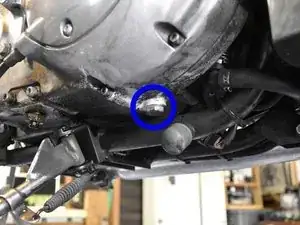

    • Die Ölablassschraube befindet sich an der Unterseite des Getriebes, links am Motorrad neben dem Gummipuffer des Seitenständers.

    • Stelle eine Ölfangwanne unter die Ölablassschraube.

    • Drehe die Ölablassschraube mit einem Schraubenschlüssel heraus und entferne sie.

    • Je nach Baujahr kann die Ablassschraube die Größe 5/8" oder 3/4" haben.

    • Lasse das ganze Öl ablaufen. Das sollte etwa fünf Minuten dauern.

  4. amFRm5uQZHT6E3Dw
    amFRm5uQZHT6E3Dw
    gGy2GZ2YHPKKHl1H

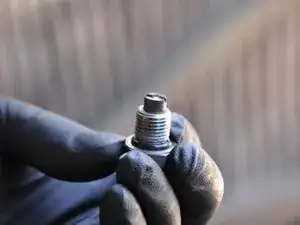

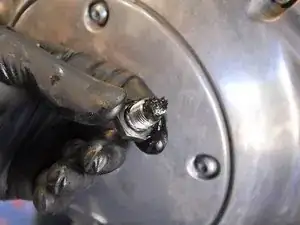

    • Während das Öl herausläuft, solltest du die Ölablassschraube reinigen.

    • Reinige die Schraube mit einem alten Lappen oder einem Papiertuch. Entferne dabei das Öl und den Metallabrieb.

    • Unten an der Schraube ist ein Magnet befestigt, der die Eisenspäne festhält.

  5. uBHHxW5Uow6LNcSy
    uBHHxW5Uow6LNcSy
    12lNoPdstDo22Nvg

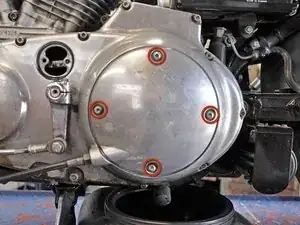

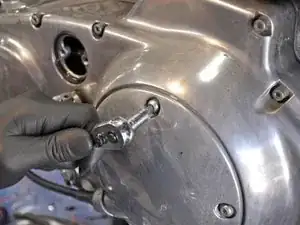

    • Entferne die vier T27 Torx Schrauben, die die Wartungsklappe der Kupplung befestigen.

    With this cover off, do I check anything or is this just to make sure all the oil has drained?

    Don -

    I saw somewhere it said to remove and replace these screws in sync, in a certain order? Why? And does it matter? I only have 4 screws on my '01 sportster. And how do you get the large O ring to stay in place when putting cap back on?

    Lori Parr -

    And how do you get the large O ring to stay in place when putting cap back on?

    Lori, I have the same question. Did you figure it out? My first attempt it slipped down and then the cover leaked when I tried to start it up. The ring is slightly stretched so I’m going to purchase a new one and see if it will stay in place any better. I will report back if it is any easier for the new one to stay in place.

    John Pile -

    Update: The new o’ring was much easier to install and get it to stay in place. $2 from Harley shop.

    John Pile -

    Interestingly, on my 1200 Sportster Custom (1996), I needed to use a T30 bit. My service manual also says T27, but they were definitely T30 for me.

    John Pile -

    How can I get the bolts out of the cover if they are stripped?

    alfred reynolds -

  6. VWVUMcxYVKL4PnGH
    VWVUMcxYVKL4PnGH
    maFlsXJQuyD1mYWv

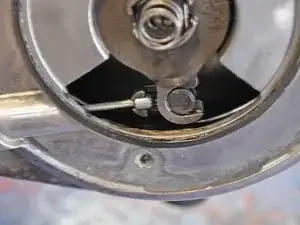

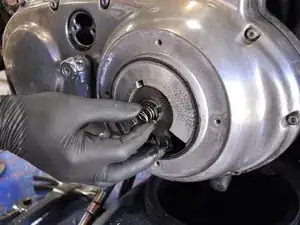

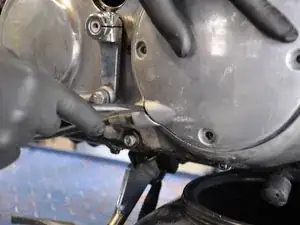

    • Setze ein geeignetes Werkzeug, z.B. einen kräftigen Spatel, in den Spalt zwischen der Wartungsklappe und dem Getriebegehäuse ein, dort, wo der Kupplungszug in das Gehäuse hineingeführt wird.

    • Heble die Wartungsklappe vorsichtig vom Kupplungsgehäuse weg.

    • Die Feder an der Wartungsklappe fällt dabei möglicherweise heraus. Bewahre sie gut auf und setze sie wieder ein, bevor du die Wartungsklappe wieder befestigst.

    What should I look for while it's open?

    Marty Glynn -

    Not to mention that's where you check ur oil level for the trans but also ur clutch adjustment is be hind that cover. ( type in clutch adjustment for more info)

    Up N coming screwdriver -

  7. 2qu3dZdAIQjewIj2
    2qu3dZdAIQjewIj2
    cstYnPc6kLkNTCMI

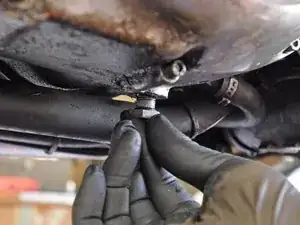

    • Setze die Ablassschraube wieder in das Getriebegehäuse ein und ziehe sie mit der Hand an.

    • Ziehe die Ablasschraube mit einem 3/4" Schlüssel wieder fest.

    • Es ist wichtig, dass die Schraube nicht zu fest angezogen wird. Wenn du sie überdrehst, können die Gewindegänge im Aluminiumgehäuse ausschlagen. Das richtige Drehmoment ist 19 - 28,5 Nm.

    Why not just fill through the top of the oil tank????

    D penglase -

    That's not the same. The oil bag is the crankcase oil and this is showing

    The trans oil. The oil is the same(20w50) but it's two different compartments.

    Up N coming screwdriver -

    The oil is not necessarily the same depending on the bike, make sure you check your manual.

    I have a 2011 Iron 883 and the transmission requires GL-5 certified GEAR OIL (75w90).

    Derek -

    Make sure rubber o ring is in good condition, mine was smashed out and my oil leaked out. Bike ok. Thanks this site was very helpful. Like the steps and the information.

    mascavrone -

  8. YhINflgc3TPPcNVr
    YhINflgc3TPPcNVr
    QGOY2xJpf6OpMpuC

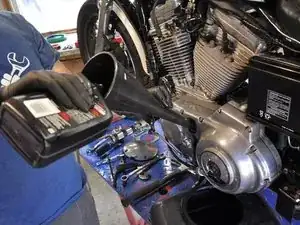

    • Setze das Ende eines Trichters in das Wartungsloch der Primärkette ein.

    • Lasse langsam etwas weniger als einen Liter Öl in das Getriebe einlaufen.

    • Während es einläuft, beobachte das Wartungsloch. Achte darauf, dass das Öl nicht über den Rand des Lochs steigt.

    • Es kann schon sein, dass du weniger als einen Liter Öl benötigst.

    what kind of oil

    tabfive99 -

    You need to use a motorcycle gear oil.. DO NOT put regular motorcycle motor oil in the transmission. Which is what I almost did after reading this because up top it says 20/50 motor oil. I went to motorcycle shop and asked what kind of transmission oil to use. He said that some people say u r supposed to b able to use the motor oil, but NOT to, as it is bad for the bike. Use gear oil meant for motorcycle transmissions

    JWag -

    They say not to use 20w-50 for transmission.

    They recommend 75w-90. Gear oil.

    Make sure its says GEAR OIL.

    Thats what I run on mine.

    Alex Flotte -

    SAE 20w50 Motorcycle oil is what is recommended by Harley Davidson. Engine and gear oil are measured on different scales. SAE 20w50 is the same as 75w90 gear oil. Some modern synthetic automotive oils are not compatible with wet clutches. 20w50 is still the correct oil recommended by the manufacturer, just make sure not to buy an oil not approved for use with motorcycle clutches. http://www.harley-davidson.com/store/syn...

    Eric Essen -

    Amsoil 20w 50 is specifically for Harley motor oil and wet clutch, it is also the best.

    Dirk -

    Thanks very useful info for beginners

    henryaburchett58 -

    I poured a quart of primary oil and I still cannot feel the oil when I put my finger in there does it need another one

    garciacowboys73 -

    There's also a weep hole located on the back of the primary towards the bottom of the rear curve. You can pull that and put oil into primary until you see it coming out of said weep hole.

    Michael C -

  9. iwlGhW6ea3yqysWG
    iwlGhW6ea3yqysWG
    fZrKZvoUEMPcKRLj
    Wm2HjmSTnBXOctBn

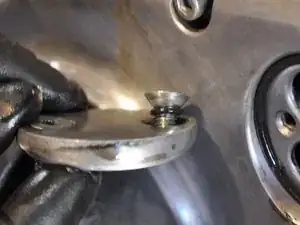

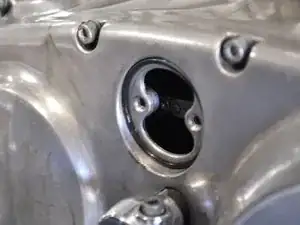

    • Bevor du den Wartungsdeckel an der Primärkette wieder aufsetzt, musst du darauf achten, dass der O-Ring aus Gummi an der Innenseite der Inspektionsöffnung der Primärkette sauber ist und korrekt sitzt.

    • Achte genauso darauf, dass die O-Ringe aus Gummi sauber und in gutem Zustand sind, bevor du die Schrauben am Wartungsdeckel der Primärkette eindrehst.

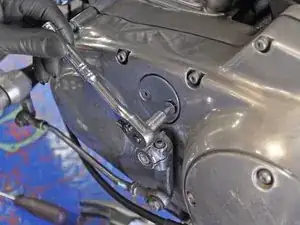

    • Befestige mit Hilfe eines 5/32" (fast exakt 4 mm) Sechskant- oder Innensechskant-Schraubendrehers den Wartungsdeckel der Primärkette.

    What is the purpose of the inspection hole? Doesn't show oil level

    Doug -

    The inspection hole is used to set the timing.

    johnsonwjoseph -

    What if the shift linkage don't come back like it should

    jamescaleb2000 -

  10. wVN3QD6pFVuucPiy
    wVN3QD6pFVuucPiy
    lwHZohIsUSYhTbMV

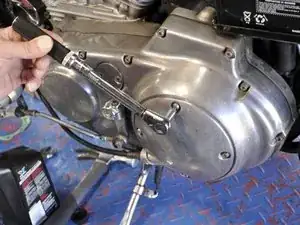

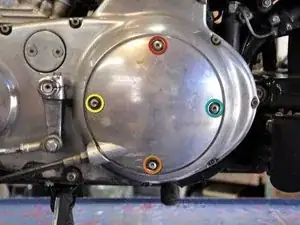

    • Befestige mit einem T27 Schraubendreher die Wartungsklappe der Kupplung.

    • Oben

    • Unten

    • Links

    • Rechts

    • Ziehe alle Schrauben händisch leicht an, danach benutze einen Drehmomentschlüssel mit 9,49 - 16,28 Nm. Achte darauf, dass sie in der gleichen Reihenfolge festgezogen werden.

    The 1991 Sportster has the small derby cover like the chain inspection cover and I am sure being a trans / primary I had to by two qts of sport trans and it's the 1st year of the 5 speed trans and belt drive on the xlh1200

    Tcorson -
