This guild help you how to replace the external stand. The stand may not support the device, this may be because of the spring being over-worn or because of some kind of debris on the surface of the stand. A plastic opening tool and PH0 screwdriver will be needed to accomplish this guide.
-
-
Using the plastic opening tool, to open the back panel of the device. Start on the longer sides to avoid bending the metal frame at the plug ports.
-
Push down on the plastic opening tool, and push the back panel, repeat this for the 4 sides of the device.
-
-
-
Using the PH0 screw driver, remove the 7.5 mm screws by turning in a counter-clockwise direction. There are 6 screws on the front panel.
-
Remove all of the 7.5 mm screws, by repeating the same step above. It is not necessary to remove the stand-leg.
-
After unscrewing the 7.5 mm screws, just lift the plastic and you will see the motherboard.
-
-
-

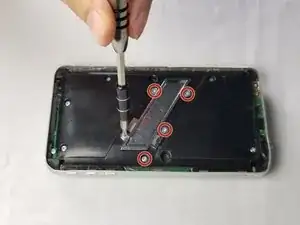

Using the Pentalobe screw driver, unscrew the 5.1 mm screws by applying a clockwise force.
-
Remove all of the 5.1 mm screws, and slowly lift the stand. There are 4 screws on the stand.
-
After the stand is removed, replace the stand with a new one.
-
To reassemble your device, follow these instructions in reverse order.
