Hasbro Bop-It Micro Series Buttons Replacement

Geschrieben von: Glenn Haag
  • Kommentare: 0
Hasbro Bop-It Micro Series Buttons Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

If the game is turned on but the Bop-It button(s) does not work, this is because the button inside the device that provides functionality may be broken. To effectively replace them see this step-by-step guide.

  1. e2Nl3KmHtwdPU22N

    • Loosen the two captive 8 mm screws in the back cover using a Phillips #0 screwdriver.

  2. sGcKSWnUL43NLku1

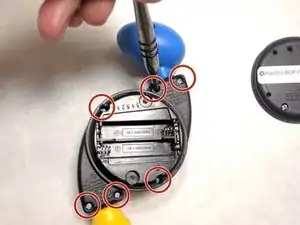

    • Remove the six 6 mm screws from the back cover using a Phillips #0 screwdriver.

    • When removing the final screw, hold the assembly together. There is a spring inside the device which will pop the assembly apart when all the screws are removed.

  3. qvUGEJ2vd6llJ6Ob

    • Carefully separate the two sections, leaving them connected by the wires.

  4. alLSVB1yDoKVsfXF

    • Remove the buttons by de-soldering them from the wires they are attached to or from the mother board. Refer to the soldering guide here.

  5. JO2rnYiWbAcQUhvx

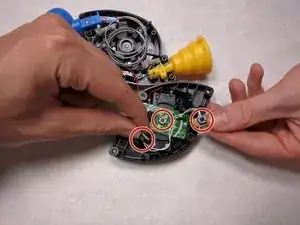

    • After removing the buttons, solder new, operational buttons back into place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
