Hasee Z7M-i78172D1 Battery Replacement

Geschrieben von: Desiree Mora
  • Kommentare: 0
Hasee Z7M-i78172D1 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

  1. 1idkDGKnwYm5NacM

    • Use a #0 Phillips head screwdriver and unscrew the sixteen 7mm screws on the back of the device.

  2. 63UxqIMKE3XFBefn
    63UxqIMKE3XFBefn
    RSuWdhSRYgOtaciE
    gs6NXGKskeAckfUQ

    • Use a plastic opening tool to take off the back plastic panel.

  3. lhNX5RYrKQFALNCL

    • Use a Phillips #0 head screwdriver to remove the four 7mm screws that hold the battery in place.

  4. xpLTNUiKsrmHLbWF
    xpLTNUiKsrmHLbWF
    NA6JLTkF5y5jKoZY

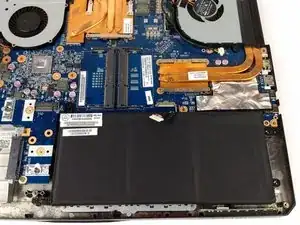

    • Gently pry off the connecting wires with the plastic opening tool.

  5. 1CdjhDbU2LDvfjSi
    1CdjhDbU2LDvfjSi
    bQejcBg4ngqa61kd

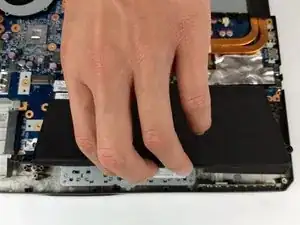

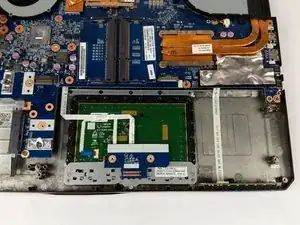

    • Lift the battery out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
