Hatch Restore Bottom Circuit Board Replacement

Geschrieben von: Bobrobot1
  • Kommentare: 1
Hatch Restore Bottom Circuit Board Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

4 Minuten

Einleitung

  1. Y22iEX6gT3KAjjgr
    Y22iEX6gT3KAjjgr
    iSQENlBwGDmidLyR

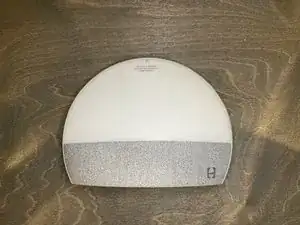

    • Replacing your bottom circuit board will be easy.

  2. 1ZWnReZGKIlQ2AWL
    1ZWnReZGKIlQ2AWL
    KXyEGHOVvGLhKbQT

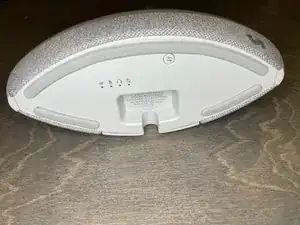

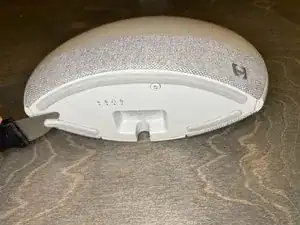

    • Peel away the rubber feet.

  3. fYXinDDQDEsL5AuI
    fYXinDDQDEsL5AuI
    nv2rVZGfvvWRoPUm

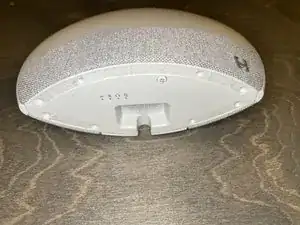

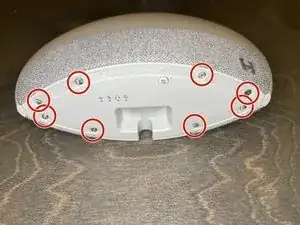

    • Remove the indicated 8 screws.

    • You may need to remove some adhesive from the screws to remove them.

  4. DL2Y6Pal5BqTkdKa
    DL2Y6Pal5BqTkdKa
    WsAOnPrF2csvqqwC

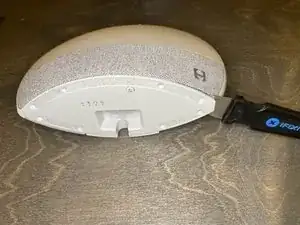

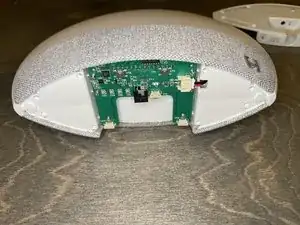

    • Pry off the bottom cover.

  5. OvGSE5JgoYWbGWZV

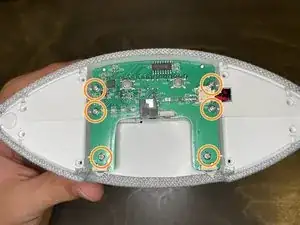

    • Remove the 6 indicated screws.

  6. FsfsSHrCVZTZTsZw
    FsfsSHrCVZTZTsZw
    3qGtjCyo4YYZXPjn

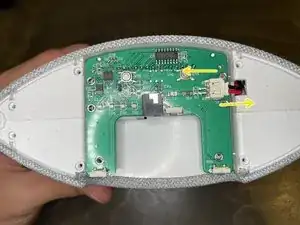

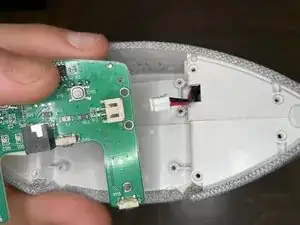

    • Remove the power cable

    • There is a ribbon cable under the board. Do not pull the circuit board too far from the device.

  7. AYR2XiPWMtC46dnM
    AYR2XiPWMtC46dnM
    FgnwCayYoSTftP1M

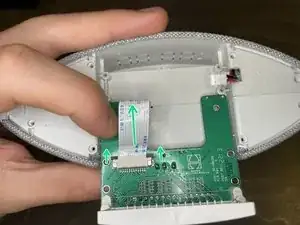

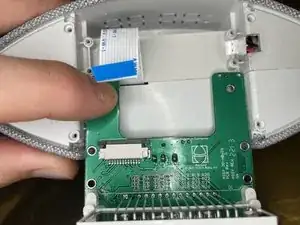

    • Push the black tabs on the ZIF connector towards the cable, then remove the cable.

    • The cable should have no resistance when pulled out. Do not forcefully remove the cable.

    Do you know where to buy the replacement circuit board?

    Brandon Chuck -

Abschluss

To reassemble your device, follow these instructions in reverse order.
