Einleitung
Before beginning this repair, you should be familiar with soldering a circuit board. The soldering skills needed aren't very in-depth, but you'll be working very close to some other components.
Ersatzteile
-
-

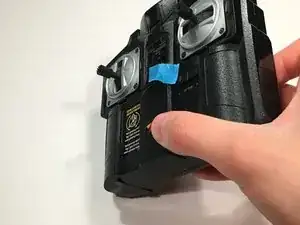

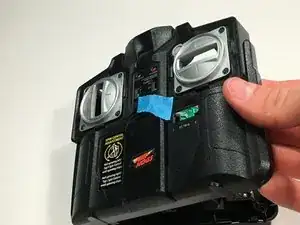

Place a small piece of tape over the Light button to prevent it from falling out in later steps.
-
Flip the controller over so the back is facing up.
-
-
-

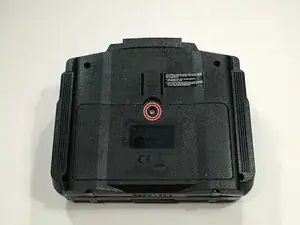

Remove the battery compartment screw with a small Phillips screw driver.
-

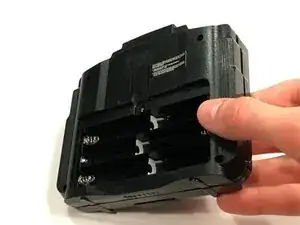

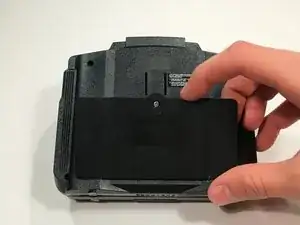

Lift off the battery cover.
-

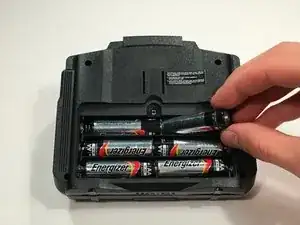

Remove the six AA batteries from the compartment.
-
-
-

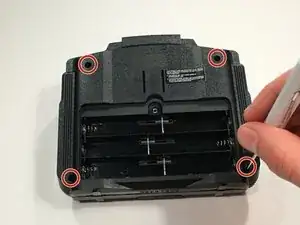

Remove the remaining four screws with a small Phillips screw driver.
-
Flip the device over so the front is facing up.
-
Remove the front cover and place it to the left side.
-
-
-

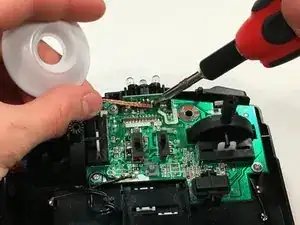

Use the soldering iron and solder wick to remove the solder from the IR LED you're replacing.
-

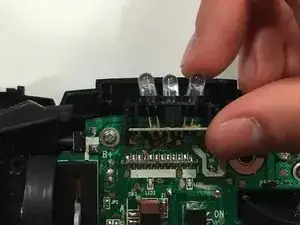

Pull the LED out through the top.
-
-
-
Insert the new LED into the slot.
-

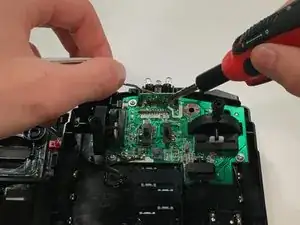

Use the soldering iron and solder to connect the new LED.
-
To reassemble your device, follow these instructions in reverse order.
