Hipstreet Titan 2 HD Battery Replacement

Geschrieben von: Jeffrey
  • Kommentare: 0
Hipstreet Titan 2 HD Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

15 - 20 Minuten

Einleitung

Users must disassemble the front cover to replace the battery. A replacement battery will be needed. This is a difficult process for users who do not have experience with soldering connections.

  1. gCRBiCw5RAGrkUrX

    • Using the PH#00 screwdriver, remove the two 0.145 inch Phillips head screws.

    • The screws are located on the bottom face of the device, near the power and volume controls.

  2. ZXyrbAphyHyiB4v2

    • Place the small suction cup on your screen.

    • Moisturize the bottom of the suction cup to ensure a proper seal.

    • If the screen is cracked, the suction cup may not seal correctly; too much pressure may crack or damage the screen.

  3. VgAAbMKcSbAD4yrN

    • Insert the plastic opening tool between the screen cover and rear cover of the tablet.

    • Grasp the small suction cup.

  4. IfIWRaropH2Wr4Lu
    IfIWRaropH2Wr4Lu
    UHktHmbJcWwZ3Vgv

    • Slide the plastic opening tool along device edge to separate the screen cover from the rear cover.

    • Pull upward on the small suction cup handle while sliding the opening tool.

    • When sliding the plastic opening tool, avoid sliding the tool too far into the cover. This could damage the speaker connector on the back cover.

  5. Jr2wSiJNH3ZwTwUs
    Jr2wSiJNH3ZwTwUs
    XavD62CZHypknKjr

    • Use the plastic opening tool to remove the speaker from the rear cover.

    • The speaker is held in place with adhesive and is easily removed.

    • Do not pull on the speaker wires. This could damage the soldering connections.

  6. eOxhtYvbbRpAVCKy

    • Once the speaker is disconnected, the cover removal is complete.

  7. tAhwBRROcL2KOKkM
    tAhwBRROcL2KOKkM
    AcrLKPAoEBLiIAlv

    • Remove the black placement tape from the battery.

    • Find the two battery solder connections on the circuit board.

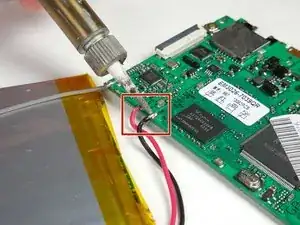

  8. pWH6MfAoabq5kOV6

    • Remove the red and black battery wires from the circuit board with the solder removal tool.

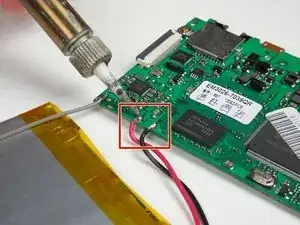

  9. 1FBRUdgOobVrwTya

    • Solder the new battery wire connectors to the circuit board.

    • The battery wires must be installed with the red wire on the left and black wire on the right.

Abschluss

To reassemble your device, follow these instructions in reverse order.
