Hisense Chromebook C11 Hard Drive Replacement

Geschrieben von: Chelsea Charles
  • Kommentare: 1
Hisense Chromebook C11 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

30 Minuten

Einleitung

This guide involves the manipulation of small, intricate parts. Please use caution.

Before dissembling your device, please refer to the troubleshooting guide to investigate other possible solutions to your problem.

  1. NmLHj1fSWBmavyJA

    • Remove the front two hub caps.

    • When finished the back cover should be able to be removed.

  2. oY6KI1EoEFt4gYdb

    • Unscrew the screws with Phillips #00 screwdriver.

  3. 2MWaBhKYHxCfFPFv

    • Pry the perimeter of the case with a plastic opening tool.

    • Remove the back panel.

  4. 44HqAb4oHsVqNJK2

    • Be careful not to puncture the battery with the screwdriver or any sharp instrument.

    • Unscrew the screws with a PH000 screwdriver.

  5. s6YcDhtJwMosml3c

    • Use tweezers to unplug the battery.

  6. F3jlKbYNt2dmmdGH

    • Remove the battery.

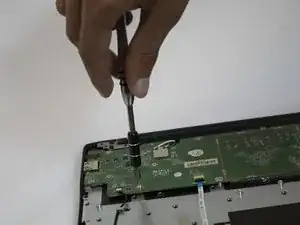

  7. bPTSDH1HmA2uPcfa
    bPTSDH1HmA2uPcfa

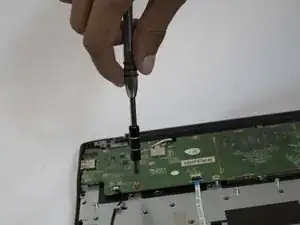

    bcbR6LqyUw6kZLHm

    • Unscrew all of the screws that you can access on the hard drive.

    • If you cannot reach the screw beneath the black strip, move on to the next step.

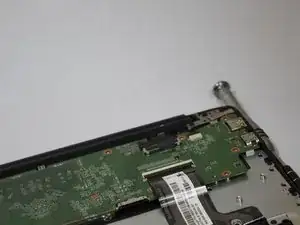

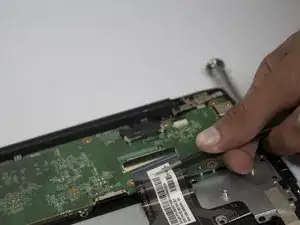

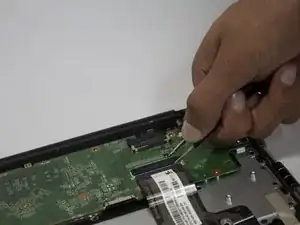

  8. BhbJeEDnEgukTR3B
    BhbJeEDnEgukTR3B
    GtkbVicsYfAQYASH
    PTOlGnxhuVvdGLYP

    • Remove the black strip using tweezers.

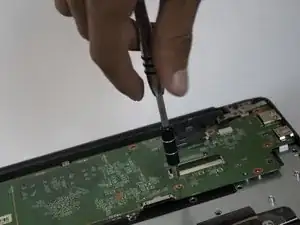

  9. XWEgewVmpFVGNmgO

    • Unscrew the screw beneath the black strip if you have not done so already.

  10. r3qiNU1KMOprHcaT
    r3qiNU1KMOprHcaT
    ZeGWCU1QONtmiZKv

    • Remove the ribbon with the tweezers.

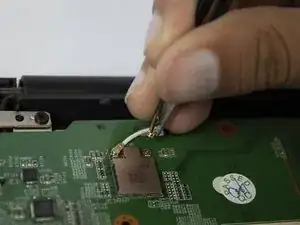

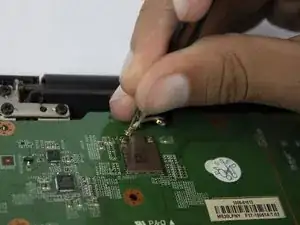

  11. Kyf5P1XtCTCLQwlV
    Kyf5P1XtCTCLQwlV
    E6aX5idlR5hZrnmv

    • Using the tweezers, carefully remove the latches attaching the silver computer chip.

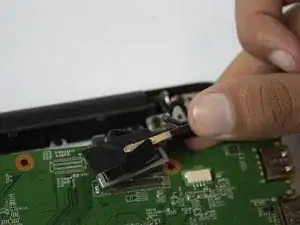

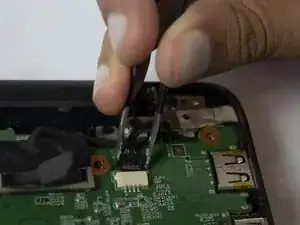

  12. vawStNySkolacP1R
    vawStNySkolacP1R
    1KF4wJWOgya4G6jW

    • Continue gently removing all remaining points of attachment.

  13. 1qCrDDXXRPUnpYG3

    • Carefully remove the hard drive.

    that is the motherboard, not the hard drive

    Dred Porter -

Abschluss

To reassemble your device, follow these instructions in reverse order.
