Hitachi HB-B102 Automatic Home Bakery II Control Panel Replacement

Geschrieben von: Mike
  • Kommentare: 1
Hitachi HB-B102 Automatic Home Bakery II Control Panel Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

2 Minuten

Einleitung

This guide will demonstrate how to disconnect and replace the Hitachi HB-B102 main control panel. The control panel contains the motherboard and the plastic housing which surrounds the motherboard.

  1. IZFrQDQTPsFByjuq

    • Begin by using a # 2 Phillips head screwdriver to remove the two 1.3 cm screws that secure the control panel onto the main body.

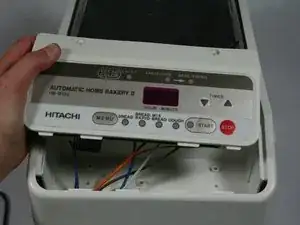

  2. YZShrWdJIhiE5CUP

    • Now gently pry on the top of the control panel with a metal spudger, it should then pop up.

    • Be careful when it is being removed that you do not damage the tabs that hold the bottom of the panel in place.

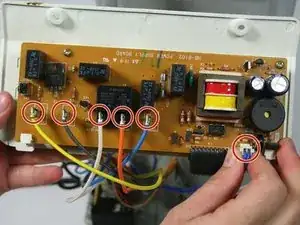

  3. BJwsGXGVNEGxLIGn

    • Now flip the control panel over so that the wire connections are visible.

    • All of the wires are easily removed by grabbing the metal connector and pulling straight out from the panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
