Holmes Blizzard Fan Oscillation Gear Replacement

Geschrieben von: Mike Bolton
  • Kommentare: 2
Holmes Blizzard Fan Oscillation Gear Replacement

Schwierigkeitsgrad

Easy

Schritte

12

Zeitaufwand

20 Minuten

Einleitung

In this guide, you will learn how to dissasemble the majority of the Blizzard fan. By following these easy steps, you can clean, service, or replace several components of this fan.

  1. mFNQIrIHEcUCWDHc
    mFNQIrIHEcUCWDHc
    o2S6TeTXeruOiLGx
    Zw4aItCEjyxyymSZ

    • Using a Phillips #2 Screwdriver, remove the 3 screws located on the back of the fan cage.

    • Next, loosen the screw located on the bottom of the fan.

    • The bottom screw does not need to be removed, but only loosened about 3 or 4 turns.

    • The front of the fan's cage is now able to be removed by prying the front away from the back.

  2. c1DdEabMxWcOo5VU
    c1DdEabMxWcOo5VU
    SvUtCFYNulPnuDiV
    M2y6XTQ6dYBWja5w

    • Using a 7 mm socket and wrench, remove the 2 nuts that are behind the fan blades.

    • There is a washer located behind each nut. Be sure not to lose these.

  3. RgXeI4pAeVsjTeAX
    RgXeI4pAeVsjTeAX
    l1Fn4V2wnwNYRPSk

    • On the top of the fan, there is a screw fastening the oscillation button to the gear train within the housing. Remove this screw with the Phillips #0 Screwdriver.

  4. FOuiOPYG6hkTOAl3
    FOuiOPYG6hkTOAl3
    NYgeEh6v6YXhKMkV

    • The on/off and fan speed nob can be removed by simply pulling it away from the main housing.

  5. MilQOhuTWZSgAACR
    MilQOhuTWZSgAACR
    aTjKRdBBxuDOV5kc
    6IR4wBjWPqFLxjwj

    • Remove the 2 screws holding the clear plastic plate in place with a Phillips #2 Screwdriver.

    • The plate is now free and can be taken out by hand.

  6. IbJuc4QnydOkoVZe
    IbJuc4QnydOkoVZe
    LaYSZToCiwTGMMKp

    • The motor switch is also free and can be removed by hand to reveal a screw holding the housing assembly in place.

    • Be sure not to damage the wires on the switch during removal. While you do not need to be overly gentle during this step, excessive force could cause the wires to be pulled out.

  7. fXUOsAOypgyCKJuo
    fXUOsAOypgyCKJuo
    bw6yDF2BsjTA2Jud

    • Remove the screw that holds the housing assembly in place by using a Phillips #2 Screwdriver.

  8. jTEShJK62KQJkDWm
    jTEShJK62KQJkDWm
    SSTQmT1DSJNNkGDE
    OtWmXIKYZN6TMd3a

    • The housing assembly can now be pulled off and pushed to the side to reveal the fan motor and gear train.

    • The oscillation button the was unscrewed earlier will fall out of the housing assembly.

    Then you put all back together you should make steps for that too hehe ?

    Rilee Watts -

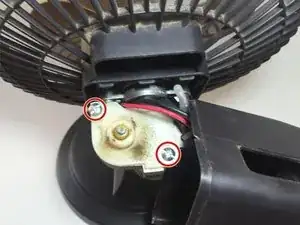

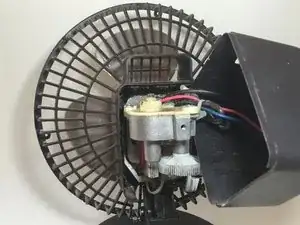

  9. 4CoVBs5NSFCxe4Hq
    4CoVBs5NSFCxe4Hq
    PFWF6MB3SJGgGMU3

    • Remove the 2 screws fastening the lid on the oscillation gear housing with a Flathead Screwdriver.

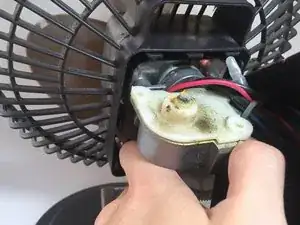

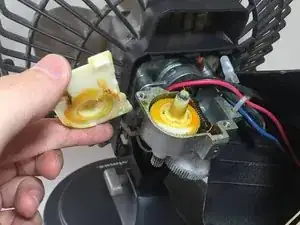

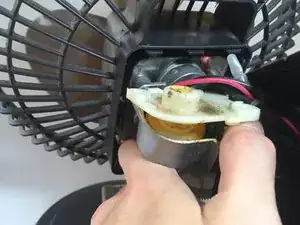

  10. r654hE6r6kOGePRu
    r654hE6r6kOGePRu
    SYVZFeMi2iTUQAEk
    pmAuK2Oc4AfjuZRH

    • Using your thumb, the lid can easily be popped off to reveal the oscillation gear.

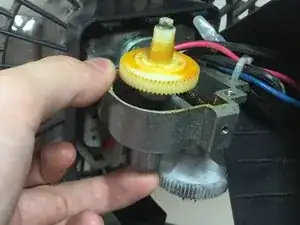

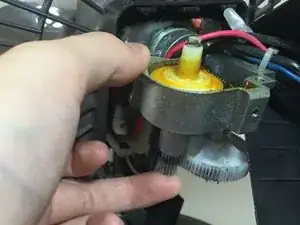

  11. lMrddle6UKWWN4YA
    lMrddle6UKWWN4YA
    cEgIyfJQNYvax5gk
    hoaJNONSehYWXjOI

    • The oscillation gear is removed by pressing it up from the bottom.

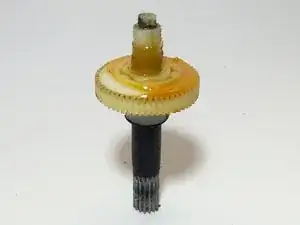

  12. BCRYtncE3Trgt2MB

    • The oscillation gear has been removed and fresh grease can be applied or it can be replaced.

Abschluss

To reassemble your device, follow these instructions in reverse order.
