This guide will show how to safely remove and replace a faulty power cord on the Holmes HEH8031 space heater.
Werkzeuge
Ersatzteile
-
-

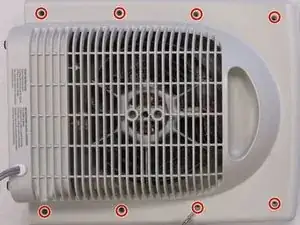

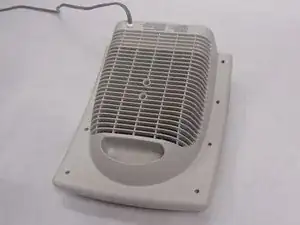

Turn heater over so the controls are facing up.
-

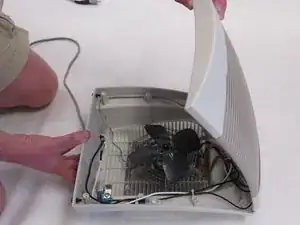

Lift the front housing away from the back of the fan and slowly fold the front housing back down to the floor.
-
-
-

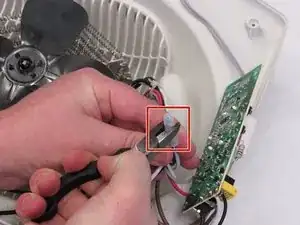

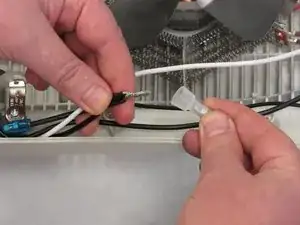

Decrimp the wire nuts from both wire connections.
-
Remove wire nuts to expose wire strands.
-

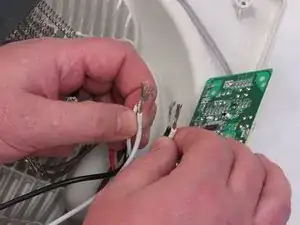

Separate all connected wires.
-
-
-

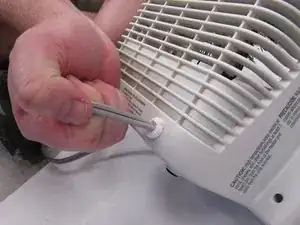

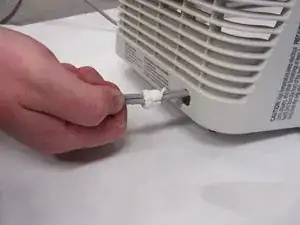

Pull on the cord from the outside of the heater with great finesse. At the same time, push the cord clamp out of the housing from the inside.
-

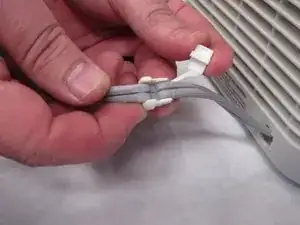

Separate the two halves of the cord clamp and remove from cord.
-
-
-

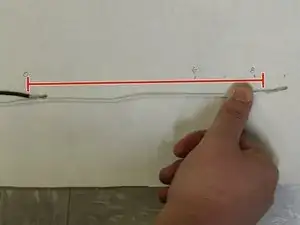

Prepare the replacement cord by cutting the negative branch (black) at least 8 inches shorter than the positive branch (white).
-

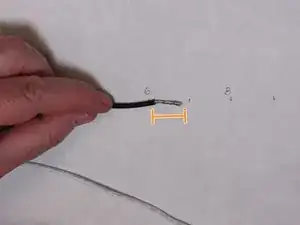

Strip at least 3/4 inch of insulation from the cord to expose bare wire.
-
Twist wire ends to form a tight braid.
-
To reassemble your device, follow these instructions in reverse order.
