Holmes box fan motor replacement

Geschrieben von: Max Cossalter
  • Kommentare: 5
Holmes box fan motor replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

This is a very simple guide that will help you dissasemble and replace the motor of your Holmes box fan, this process is easy and it only requires a screwdriver and a new motor to install.

  1. MKCEVxnwAdpWrAXa
    MKCEVxnwAdpWrAXa
    UIuDmWHNUFWAoGpk
    4FqbrFS24wY1WARb

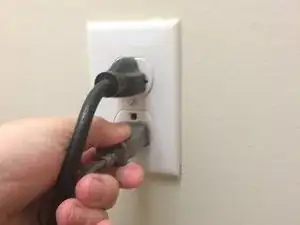

    • The first step is to make sure you unplug your fan from the outlet.

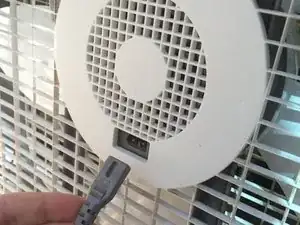

    • Make sure you also unplug the power cord from the back of the fan.

    My plug won’t unplug from the back of the fan what do I do? How should I try to get it out. The plug is really stuck in their.

    Marisol Walls -

  2. 4f5BVRPVW2cAAtx4
    4f5BVRPVW2cAAtx4
    RRNFOiZrbH3P46Ds

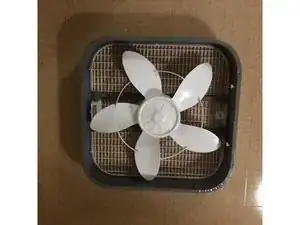

    • Now that your fan is unplugged, lay it flat with the brand label facing upward.

    • Next is to remove the front cover.

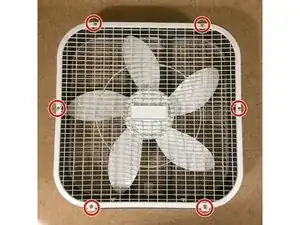

    • Remove the six screws from the perimeter of the cover in order to remove the front cover.

  3. yKatlaWkeroIxxbW
    yKatlaWkeroIxxbW
    ONPodGYaUbx4x5Ml

    • Next is the back cover.

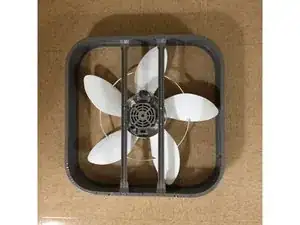

    • Flip over the fan so you have access to these six screws.

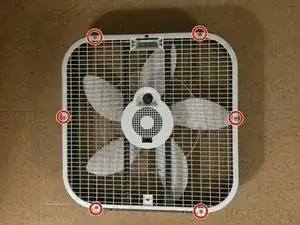

    • Remove the six screws from the perimeter of the cover in order to remove the back cover.

  4. wA1bHvJYwNXy4eaI

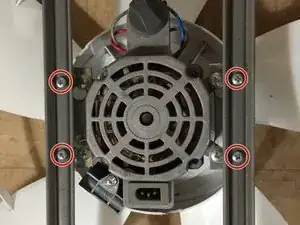

    • Remove these four screws in order to remove the motor and fan blades from the housing.

  5. PtfACFQyI1S2OqmS

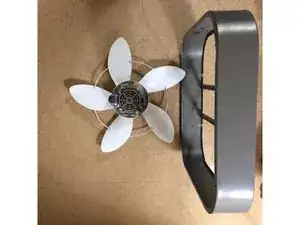

    • The housing should now be able to lift away from the motor and fan blade.

  6. AiAGGdaNJKxryQwB
    AiAGGdaNJKxryQwB
    SW31YlqCQRDtRRec
    KADlCBsaRPMFVJZG

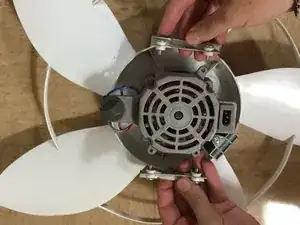

    • The next step is to remove the mounts that held the motor to the housing.

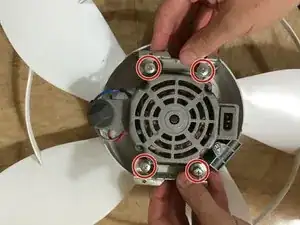

    • Remove these four screws to remove the mounts.

  7. FO62g3VZnqwk6Xdk
    FO62g3VZnqwk6Xdk
    GoGFknYZwsFSlbIm

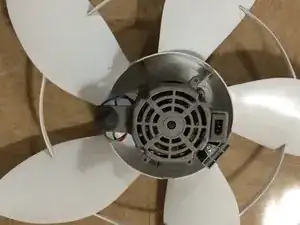

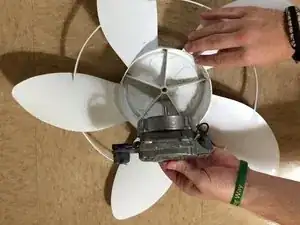

    • Now you are able to remove the motor from the fan blades.

    • Be careful, if you used your fan recently the motor may be quite hot.

  8. tsHKqKgiaGYiretS

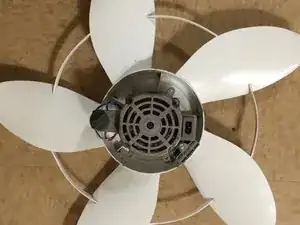

    • Now you can insert your new motor and you are done!

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Max Cossalter

Mitglied seit: 29/09/15

281 Reputation

4 Kommentare

Where might one find a replacement motor for a older box fan

Chris Cook -

Also, I would like to know where to get a replacement motor, as shown in step 4.

Vince Doriean -

Great guide! Upon reassembling, I noticed that the center of the propeller touches the front grill where it says Holmes. Anyone know if they rub on each other by design?

Zeev -

My version of the fan came with a similar cord, however the female end had a bump in the center on the end that latches into the fan. Without shaving that piece off, the plug doesn’t detach without taking it apart and prying it out.

applejack_ -
