Homelite UT44172 Blades Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

10 - 20 Minuten

Einleitung

If you are having trouble with your Homelite UT44172 Cordless Grass Shear cutting grass due to dull, loose, or broken blades, follow this guide to replace them.

  1. VvT26LE3ipCg1LYO

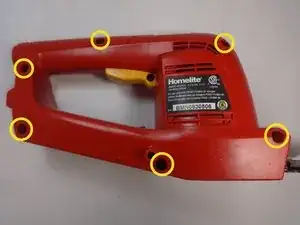

    • Remove the six 15.0 mm screws from the body of the device with a Phillips #2 screwdriver.

  2. vmcFVOCwBuPiJxYP

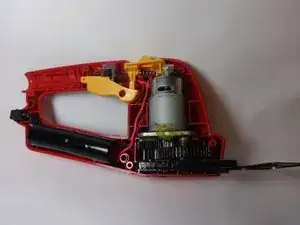

    • Remove the face plate by lifting it away from the other half of the device. This will expose the interior.

  3. 1Uw6JUMqWGSEIPRP
    1Uw6JUMqWGSEIPRP
    SCqAAwTsH2t4VCMs

    • Use the Phillips #2 screwdriver to remove the four 10.0 mm screws on the bottom of the blades.

  4. GnYDDeXJuOnuOsM3
    GnYDDeXJuOnuOsM3
    KK6ZtuDpEP3nrOTC
    BBAKQWtaIrxWdoSZ

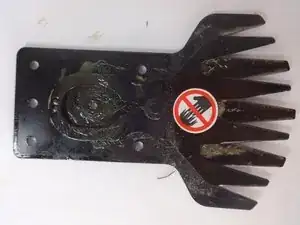

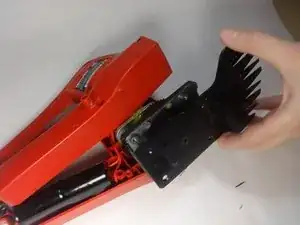

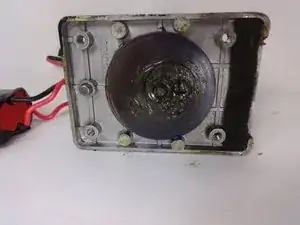

    • Remove the old blades by pulling them away from the gears and motor.

    • Be careful handling the blades. They are sharp.

Abschluss

To reassemble your device, follow these instructions in reverse order.
