Homelite UT44172 Operating Switch Replacement

Geschrieben von: Adam soto
  • Kommentare: 0
Homelite UT44172 Operating Switch Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

2 - 7 Minuten

Einleitung

If you are having problems turning on the shear or the operating switch seems too loose, this guide might be useful for replacing the part.

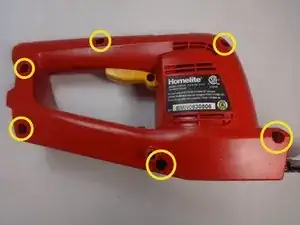

  1. hD2nKKlLWlMMW1SO

    • Use a Philips-head screwdriver to remove the six, 15 mm screws from the casing.

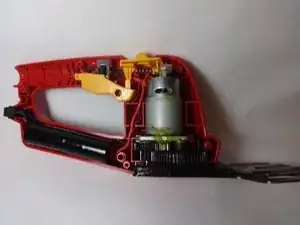

  2. 6WNuWnPCarHGkqsA

    • Remove the faceplate from the main body of the device, lift it and expose the inner mechanisms.

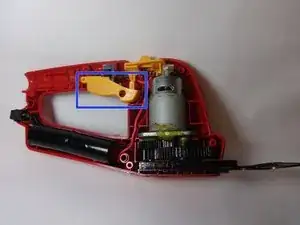

  3. TWTf1dpA6P2IYGPM
    TWTf1dpA6P2IYGPM

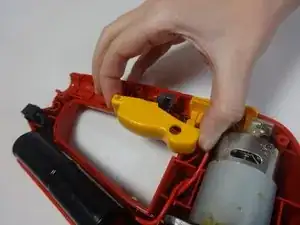

    RGNKNuxaYviONg1f

    • Locate and remove the operating switch from the device.

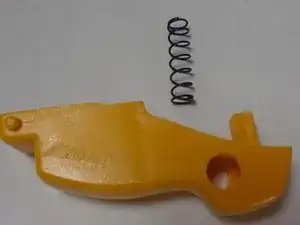

  4. kdRToninsurIDhMs

    • Replace the spring if it is deformed or broken.

    • Be careful that the wires do not get caught in the spring when replacing it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
