Honda 3000 Watt Generator EB3000CK2A Circuit Breaker Replacement

Geschrieben von: Tarun Thiruma
  • Kommentare: 1
Honda 3000 Watt Generator EB3000CK2A Circuit Breaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

20 - 30 Minuten

Einleitung

This guide demonstrates how to remove or replace the main circuit breaker in your Honda EB3000CK2A 3000 Watt Generator.

  1. LJprNZigAHiOTmKi
    LJprNZigAHiOTmKi
    2dPCI5qOTUqYFMN2

    • Before you begin, disconnect the spark plug connector from the spark plug.

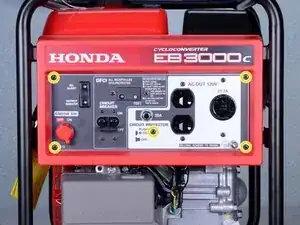

  2. u1mOBZwDTrtIcKQa

    • Use a Phillips #2 screwdriver to remove the five 15 mm screws securing the control box cover.

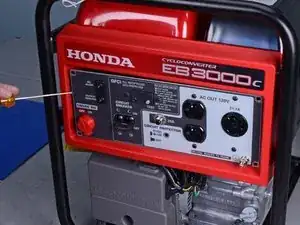

  3. oCxpIkvlXuQTZgFX
    oCxpIkvlXuQTZgFX
    kJeyLDTjqDAqxphq
    6vL5VCBJoaAaUGUP

    • Use a flathead screwdriver to pry and loosen the control panel from the control box.

    • Tilt the control panel down so the rear of the panel is accessible.

  4. RVycHbxYqQQ6aJvd

    • Use a Phillips #2 screwdriver to remove the four 5 mm screws securing the circuit breaker to the control box panel.

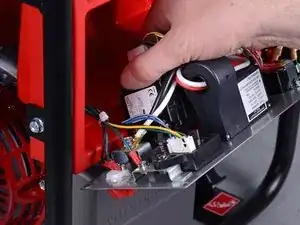

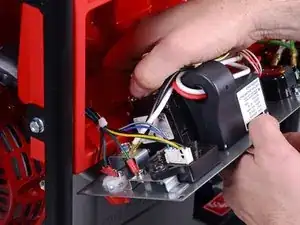

  5. tJhUdaQ3jtLbPGWJ
    tJhUdaQ3jtLbPGWJ
    IE2sgLQRiPUEcx5N
    wjfAElcatiRnlQpX

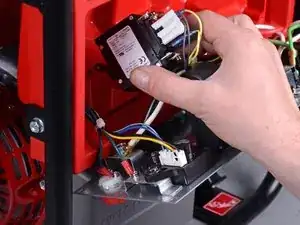

    • Carefully pull the circuit breaker away from the panel.

    • This may require a significant amount of force. Take care as the circuit breaker is still wired to the rest of the generator.

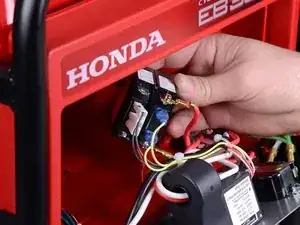

  6. MsJrIW6eWKHMifHP

    • Take note of where each cable connects to the breaker for reassembly.

    • It can be helpful to disconnect and reconnect one cable at a time to the new circuit breaker to maintain cable management and prevent mix ups.

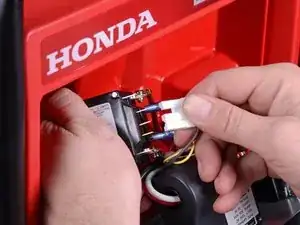

  7. XErcPZYVq15kRwyY
    XErcPZYVq15kRwyY
    5A6Z23ClTWq6XiER

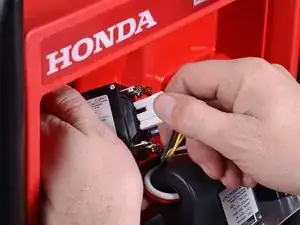

    • Disconnect the large white connector from the circuit breaker.

    • Take note of the orientation of the connector in relation to the breaker for reassembly.

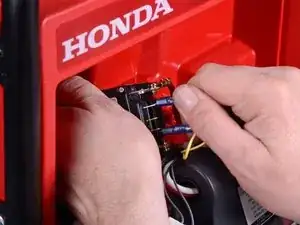

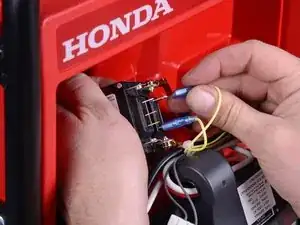

  8. qxVNegVnoKcWJHtl
    qxVNegVnoKcWJHtl
    AgL4oQA1oO45eLhD
    3y4rPbltWmmDI1qa

    • Disconnect the two spade crimp connectors from the breaker.

    • This may require a significant amount of force. If you are having trouble, you can use pliers to grip the connectors. Pull only on the blue crimp connector, not the actual wire.

  9. 44qfloBNJGMgYJFF
    44qfloBNJGMgYJFF
    bWqW3mMTrDkqSGKA

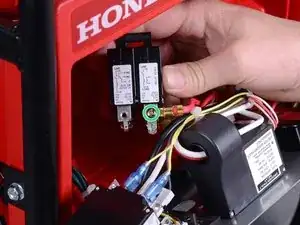

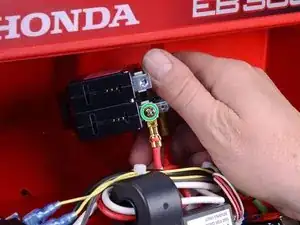

    • Use a Phillips #2 screwdriver to remove the two 6 mm screws securing the cables to the terminals on the breaker.

  10. oZZA1DmPwNYy1gQN

    • Remove the circuit breaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
