Einleitung
This guide demonstrates how to remove or replace the recoil starter assembly on your Honda EB3000CK2A 3000 Watt Generator.
Werkzeuge
Ersatzteile
-
-

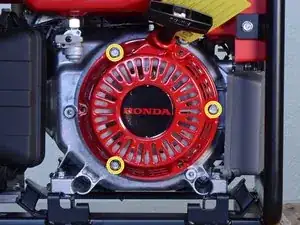

Use a 10 mm socket to remove the three 12 mm-long bolts securing the recoil starter assembly.
-

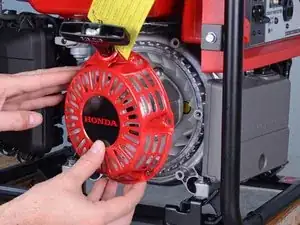

Remove the recoil starter assembly.
-
-
-

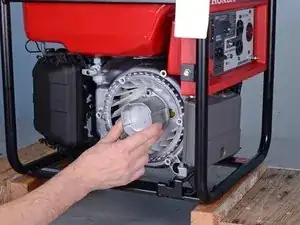

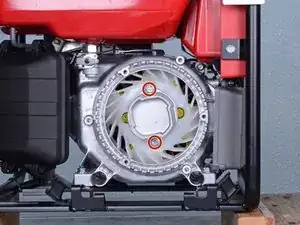

Use a 10 mm socket to remove the two 20 mm-long bolts securing the recoil starter pulley.
-

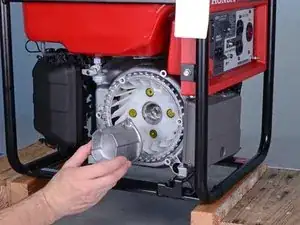

Remove the recoil starter pulley.
-
Abschluss

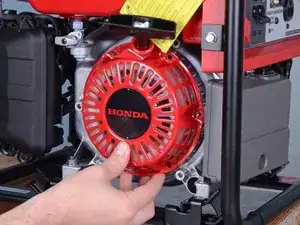

To reassemble your device, follow these instructions in reverse order.
