This guide shows how to remove the front metal frame on the Honda EU3000IS1AWK 3000 watt generator in order to access the rotor and stator.

This is a prerequisite guide! This guide is part of another procedure and is not meant to be used alone.

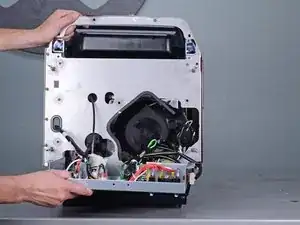

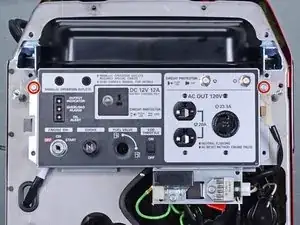

At this point, it may be helpful to temporarily re-attach the control panel back onto the front frame with some 10 mm bolts.

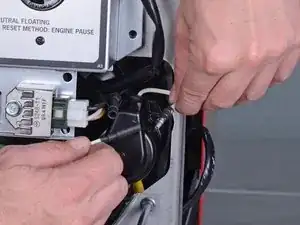

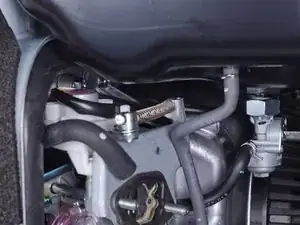

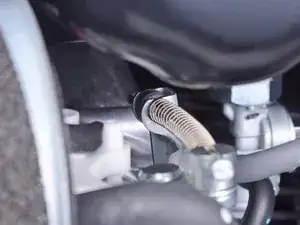

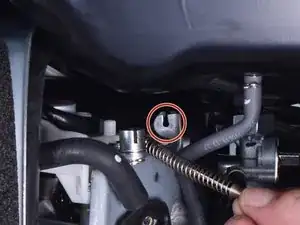

Lift up and release the choke cable's rubber bushing from the choke stay.
During reassembly, make sure that the choke cable's rubber bushing is properly seated on the choke stay.

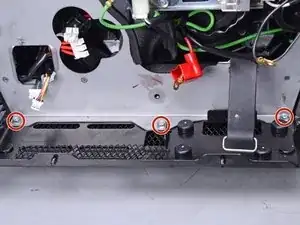

Use a 10 mm socket to remove the three frame bolts securing the bottom of the front frame.

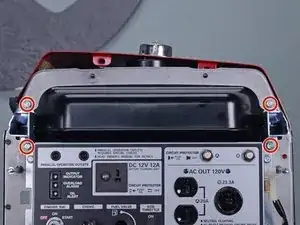

Use a 10 mm socket to remove the four bolts securing the top of the front frame.

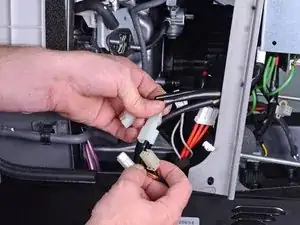

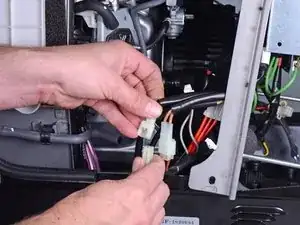

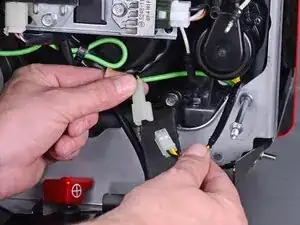

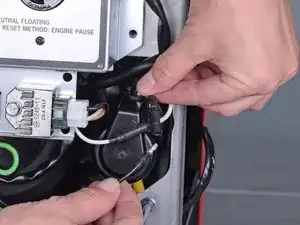

Pull and disconnect the starter motor's black barrel and white barrel connectors.
During reassembly, the wires should be reconnected to their respective colors.

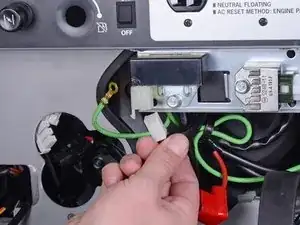

Unplug the four-wire regulator connector from the bottom edge of the control panel.

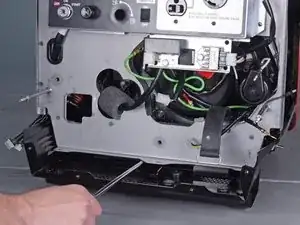

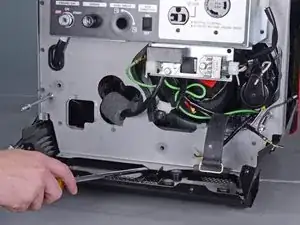

Insert the edge of a large flathead screwdriver under the bottom edge of the front frame.

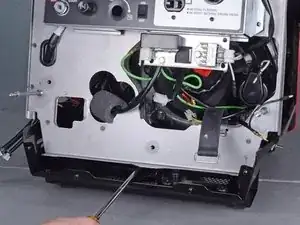

Pry up and outward to release the bottom edge of the front frame.

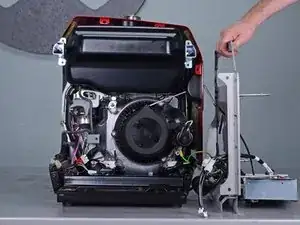

Carefully swing the front frame to the right side of the generator.
While the images show the control panel unbolted from the front frame, you can keep it bolted to the frame.
The front frame is still connected to the generator by many wires. Be careful not to strain any wires.

Abschluss

To reassemble your device, follow these instructions in reverse order.
