Repairing an exhaust system on a dirt bike is a relatively easy process that most people can accomplish at home with little mechanical skills and knowledge. The new exhaust system that I will be installing is the Two Brothers S1R slip-on exhaust system for Honda CRF250L/Rally 2017. Two Brothers’ slip-on option allows for customers to have an easy solution to fixing their exhaust. I purchased this exhaust on Revzilla’s website. When purchasing the Two Brothers slip-on exhaust make sure that you select the correct model and year of your dirt bike. When an exhaust system is damaged the airflow that the dirt bike receives can be poor, leading to long-term damage to the machine. This procedure will increase airflow for the Honda CRF250L.
Werkzeuge
Ersatzteile
-
-

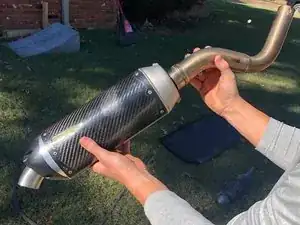

Take off the existing exhaust.
-

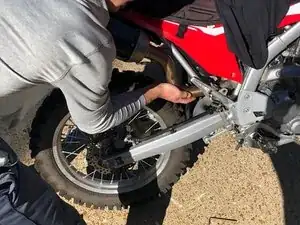

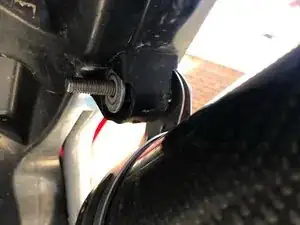

Remove the external hex bolt by the header with the 1/2" socket.
-

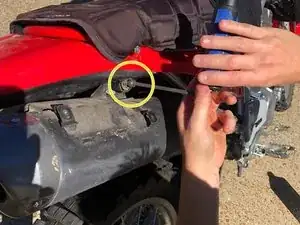

Then, remove the internal hex socket bolt by the exhaust with the 6mm Allen wrench.
-
-
-

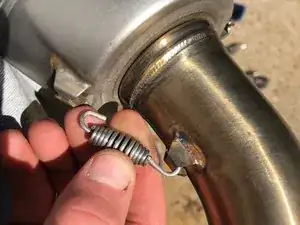

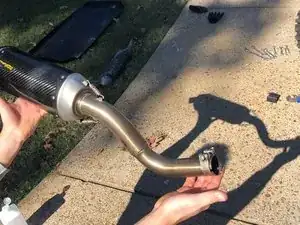

Hook the spring on to one of the slots that is welded on the pipe and exhaust.
-

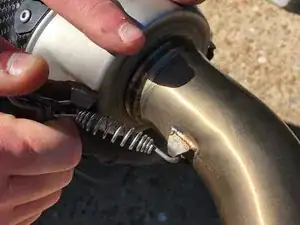

Then, expand the spring to hook around the opposing slot using the spring hook.
-
-
-

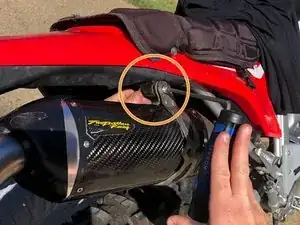

Insert the bolt attached to the mount.
-

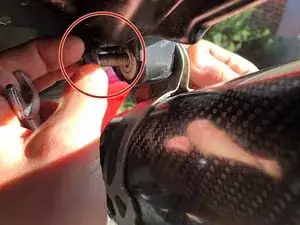

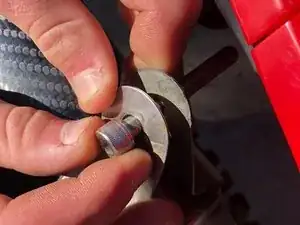

Install the nut to the backside of the internal hex socket bolt.
-

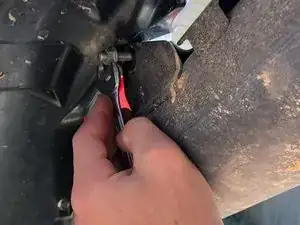

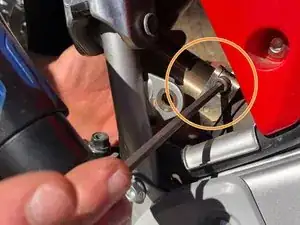

Tighten the internal hex socket bolt using the 6mm Allen wrench.
-
-
-

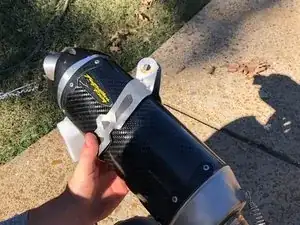

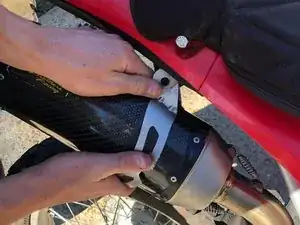

Tighten the clamp.
-
Tighten the internal hex socket bolt on the clamp using the 6mm Allen wrench.
-
To reassemble your stock exhaust, follow these instructions in reverse order.
