Honda EU2200IT A2 Air Cleaner Housing Replacement

Geschrieben von: Arthur Shi
  • Kommentare: 0
Honda EU2200IT A2 Air Cleaner Housing Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

Keine Schätzung

Einleitung

This guide shows how to remove the air cleaner housing for the Honda EU2200IT generator.

You can also follow this guide to replace a worn air intake gasket.

  1. 2RcWcdXnpuMICOPf

    • Before you begin, make sure the generator is switched off and the generator is cool to the touch.

  2. 4pUWZSMoPDsUsmgB
    4pUWZSMoPDsUsmgB
    ovqPPHBsYDOyPTWB

    • Lift and remove the spark plug cover.

  3. LBekvfGNewVuFSmt
    LBekvfGNewVuFSmt
    GSUCKM2i6mTB6bAt

    • Grab the plastic housing at the end of the spark plug wire.

    • Pull firmly to disconnect the wire from the spark plug.

  4. OHs3UlmVblBpcMIe

    • Use a Phillips #2 screwdriver to loosen the screw holding the maintenance cover in place.

  5. aTiAjAVTQqrOBmJd
    aTiAjAVTQqrOBmJd
    3FVmFTPjDxllE1XA
    qWOoL4xyWLOLq3vO

    • Swing the top of the maintenance cover out.

    • Remove the maintenance cover.

  6. 4DJ5UYn3U2PpBVLc

    • Remove the Phillips screw securing the filter cover.

    • During reassembly, be sure to tighten the screw to at least 1.7 ft-lb to prevent it from loosening during operation.

  7. lC6GoVaGvl6O1ySn
    lC6GoVaGvl6O1ySn
    lxFGMkoOXjJNHjgw

    • Remove the filter cover.

  8. efCClSVPYBPOLpGy
    efCClSVPYBPOLpGy
    BwXyPUop6H32DX2d

    • Remove the air filters from the filter box.

    • To clean the filters:

    • Clean the filters in warm soapy water.

    • Allow the filters to dry thoroughly.

    • Dip the filters in clean engine oil, and squeeze out any excess oil.

  9. LY1MV5MCiyJoqe16
    LY1MV5MCiyJoqe16
    qBBGC2uE4OUuTHGk
    YFcBZwjFIYEIm4IJ

    • Use a flathead screwdriver to loosen the breather tube from the air cleaner housing.

    • Disconnect the breather tube from the air cleaner housing.

  10. qVYrgTLZiBZ2xErt

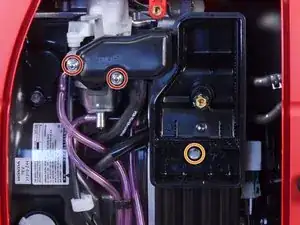

    • Remove the following fasteners securing the housing:

    • Two 8 mm nuts

    • During reassembly, tighten these to 3.6 ft-lb.

    • One 8 mm bolt

  11. PtiWRFDAI1fEeXYq
    PtiWRFDAI1fEeXYq
    dJnU2xCYrYn5Ms6A

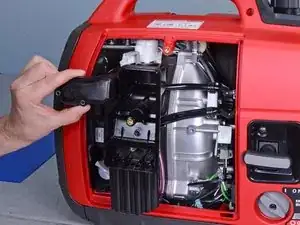

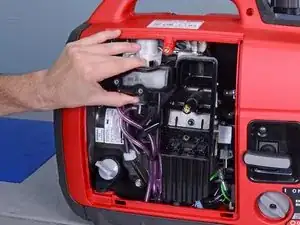

    • Remove the air cleaner housing.

  12. 2cWmqetOXKshBaRF

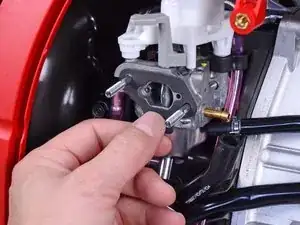

    • During reassembly, replace the air intake gasket if it shows signs of wear.

Abschluss

To reassemble your device, follow these instructions in reverse order.
