Honda EU2200IT A2 Air Filters Replacement

Geschrieben von: Arthur Shi
  • Kommentare: 0
Honda EU2200IT A2 Air Filters Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

This guide shows how to remove and replace the air filters on the Honda EU2200IT generator.

  1. 2RcWcdXnpuMICOPf

    • Before you begin, make sure the generator is switched off and the generator is cool to the touch.

  2. 4pUWZSMoPDsUsmgB
    4pUWZSMoPDsUsmgB
    ovqPPHBsYDOyPTWB

    • Lift and remove the spark plug cover.

  3. LBekvfGNewVuFSmt
    LBekvfGNewVuFSmt
    GSUCKM2i6mTB6bAt

    • Grab the plastic housing at the end of the spark plug wire.

    • Pull firmly to disconnect the wire from the spark plug.

  4. OHs3UlmVblBpcMIe

    • Use a Phillips #2 screwdriver to loosen the screw holding the maintenance cover in place.

  5. aTiAjAVTQqrOBmJd
    aTiAjAVTQqrOBmJd
    3FVmFTPjDxllE1XA
    qWOoL4xyWLOLq3vO

    • Swing the top of the maintenance cover out.

    • Remove the maintenance cover.

  6. 4DJ5UYn3U2PpBVLc

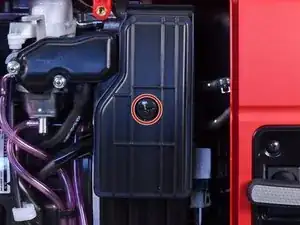

    • Remove the Phillips screw securing the filter cover.

    • During reassembly, be sure to tighten the screw to at least 1.7 ft-lb to prevent it from loosening during operation.

  7. lC6GoVaGvl6O1ySn
    lC6GoVaGvl6O1ySn
    lxFGMkoOXjJNHjgw

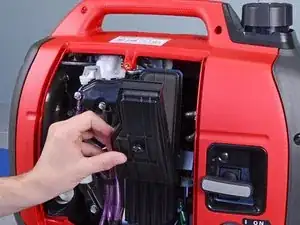

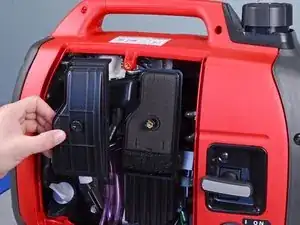

    • Remove the filter cover.

  8. efCClSVPYBPOLpGy
    efCClSVPYBPOLpGy
    BwXyPUop6H32DX2d

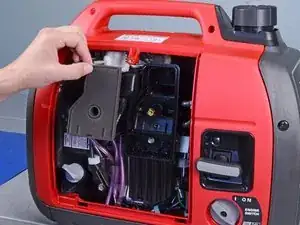

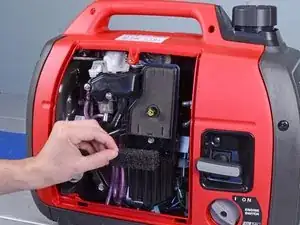

    • Remove the air filters from the filter box.

    • To clean the filters:

    • Clean the filters in warm soapy water.

    • Allow the filters to dry thoroughly.

    • Dip the filters in clean engine oil, and squeeze out any excess oil.

Abschluss

To reassemble your device, follow these instructions in reverse order.
