Honda FC600 Tiller Tine Replacement

Geschrieben von: Craig Lloyd
  • Kommentare: 0
Honda FC600 Tiller Tine Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 - 15 Minuten

Einleitung

Follow this guide to replace a damaged tine on the Honda FC600 tiller.

  1. afWWneI6nJJNnTSX
    afWWneI6nJJNnTSX
    aS1c2GhSauaImBWG
    NhrR5ZLy6WLc61ai

    • Before you begin, it's important that you completely cut power to the tiller by disconnecting the spark plug. This will prevent the engine from accidentally starting up while you're working on the tiller.

    • Grab the spark plug cap and pull it straight out to disconnect the spark plug from the engine.

  2. JhkJOZMg3LCyoPRS

    • The next two steps demonstrate how to prop up the tiller to work on the tines.

    • Set down a block (or blocks) of wood onto your work surface.

    • Make sure the wood blocks are narrow enough to fit in between the left- and right-side tines.

  3. aRcnASMJN6BKGTjT
    aRcnASMJN6BKGTjT
    JS6fHxUsWAwBZTu2
    vE1d6o4ZlPkODpKJ

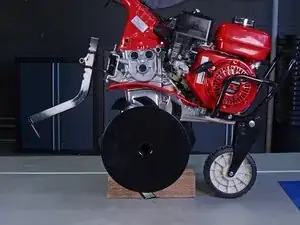

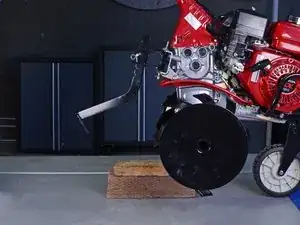

    • Lift and roll the tiller over the wood block until the center of the tine axle is hovering over the wood block.

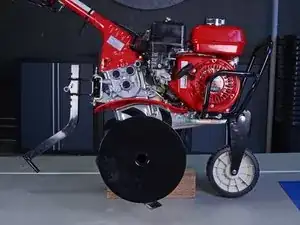

    • Gently set the tiller down so that the center of the tine axle rests on the wood block.

    • You may need to lean the tiller to one side to make sure the tines on the other side are completely off the work surface.

  4. mR4yErWxV4l3Rnkm

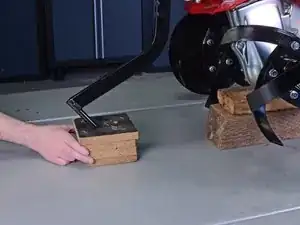

    • Place a block (or blocks) of wood under the tiller's drag bar to prevent the tiller from leaning back.

  5. 6HHIBar5AG1XYEk3
    6HHIBar5AG1XYEk3
    tmHGRRCQBWRvwmhv
    CaPGYKCdg4wZVGMl

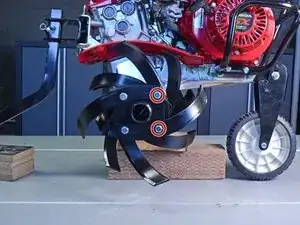

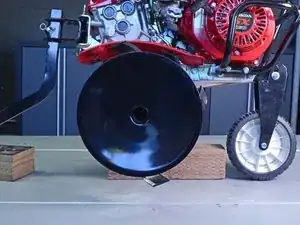

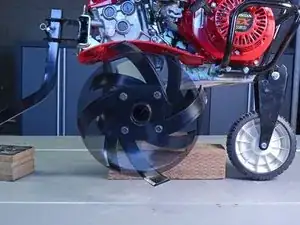

    • Remove the two 14 mm nuts securing the tine to the mounting bracket.

    • It is not required to remove the side disc.

    • Depending on which tine you're replacing, you may need to remove different nuts.

  6. X23tPxuDUwNdVLun
    X23tPxuDUwNdVLun
    v21SJlQ3JTgU1taJ

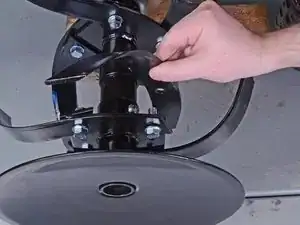

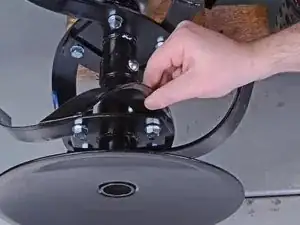

    • Grab the tine and pull it straight off of the mounting bracket.

    • Removing the bolts is not required.

Abschluss

To reassemble your device, follow these instructions in reverse order.
