Honda Lawn Mower HRS216K6 PKAA Engine Removal

Geschrieben von: Carsten Frauenheim

Kommentare: 0

Honda Lawn Mower HRS216K6 PKAA Engine Removal

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

1 - 2 Stunden

Einleitung

Prerequisite only! This guide shows how to remove the engine from a Honda HRS216K6 lawn mower to perform internal repairs.

Drain the fuel from the fuel tank before you begin this procedure. Any fuel remaining in the tank will spill out. Be ready to contain any spillage.

Werkzeuge

Schritt 1

Before you begin, make sure the engine is switched off and cool to the touch.
Grab the plastic housing at the end of the spark plug wire and pull firmly to disconnect it.

Schritt 2

Turn the fuel cutoff valve to the off position to restrict fuel flow during disassembly.
Turn the fuel cutoff valve clockwise so the handle becomes vertical.

Schritt 3

Use needle nose pliers to compress and slide the tube clamp away from the cutoff valve's fitting.

Schritt 4

Residual fuel may leak out of this hose. Be ready to catch any spillage.
Disconnect the fuel line from the cutoff valve.

Schritt 5

Use needle nose pliers to squeeze the two locking tabs on the brake cable latch.

Schritt 6

Pull to unlatch the cable sheath.
Pull the brake cable away from the motor.

Schritt 7

Push the cable towards the cable anchor to give it enough slack to be removed.
Remove the brake cable from the motor.

Schritt 8

Pull the pull start cord out of the small opening on the handle post and remove it.

Schritt 9

Remove the three 10 mm nuts securing the fan cover.

Schritt 10

Remove the fan cover.
The fuel tank is connected to the fan cover. They will both come out as one unit.

Schritt 11

Remove the 19 mm nut securing the flywheel and cooling fan to the motor.

Schritt 12

Remove the washer on top of the cooling fan.
Remove the cooling fan.

Schritt 13

Caution: The flywheel may come loose at any time during this step, potentially sending itself and the puller into the air. Before you begin this step, be sure to wear PPE.
Use a universal puller to loosen the flywheel from the tapered pressure fit on the end of the crankshaft.
Attach the universal puller arms underneath the denoted "puller" sections on the flywheel.
Use a wrench to torque down the puller to slowly loosen the flywheel.
This may take a lot of force.
If the flywheel seems to become stuck after significant pressure is applied with the universal puller, use a blowtorch to slowly apply heat where the flywheel contacts the crankshaft.
The flywheel will "pop" off the crankshaft once loose.

Schritt 14

Remove the flywheel.
If the flywheel became deformed at all during the last step, it will need to be replaced before reinstallation.
During reassembly, make sure to align the flywheel with the flywheel key.

Schritt 15

Use needle nose pliers to remove the flywheel key from its slot in the crankshaft.
During reinstallation, make sure the key is fully seated in the slot. Otherwise the flywheel will not fit correctly.

Schritt 16

Loosen, but don't remove, the shiny 14 mm blade holder bolt.
Remove the two matte 14 mm bolts securing the blade to the blade holder.

Schritt 17

Remove the blade.
If the blade is heavily used, it may be sharp in some areas. If this is the case, use gloves to remove it.

Schritt 18

Fully remove the 14 mm bolt securing the blade holder to the crankshaft.

Schritt 19

Remove the blade holder.
If the blade holder is difficult to remove by hand, use a pry bar for more leverage.
The blade holder will come out with its accompanying shaft key.

Schritt 20

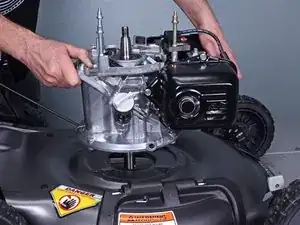

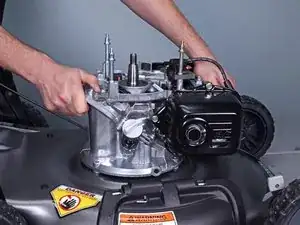

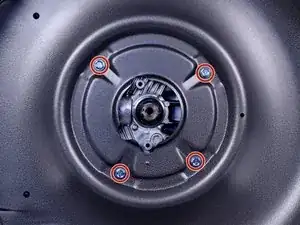

Remove the four 12 mm bolts securing the motor to the frame.
Once these bolts are removed, the engine will be free to fall off the mower frame. If you are removing the bolts while the mower is on its side, you may need another person to steady the motor.
