Honda Light Duty Tiller F220K1AT715492 Oil Seal Replacement

Geschrieben von: Adam O'Camb
  • Kommentare: 0
Honda Light Duty Tiller F220K1AT715492 Oil Seal Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 - 20 Minuten

Einleitung

Use this guide to remove or replace the tine oil seal in a Honda Light Duty Tiller F220K1AT715492.

You will need to support the tiller during this process. Use jack stands, large pieces of wood, or other strong supports. Rock the tiller back and forth on its supports before beginning to ensure that it won’t fall or tip over during repairs. Make sure you can still remove the right-side tines while the tiller is supported.

Drain the oil before you begin this procedure. Any remaining oil will spill out when you remove the seal. Be ready to contain any spillage.

You will need to refill the engine oil after this procedure. The recommended oil is 10W-30.

  1. IWoGKIyIaTVIVqGE
    IWoGKIyIaTVIVqGE
    5nuIbIXCMAYpCNM1

    • Before you begin, make sure the engine is switched off and cool to the touch.

    • Pull the spark plug connector straight off of the spark plug.

  2. gNDZBVmLTbn1orvS
    gNDZBVmLTbn1orvS
    ntkF6eMVZyhGudJn

    • This procedure is on the right side of the tiller. The left side has a different seal and its procedure may differ slightly.

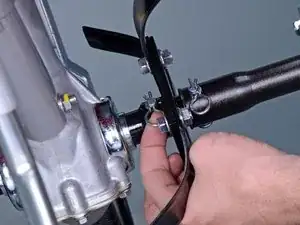

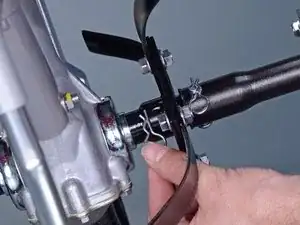

    • Pull the snap pin straight out of the pin securing the right tine to the tine shaft.

    • The tine shaft pin may fall out when you remove the snap pin. If the tine shaft pin did not fall out, remove it now.

  3. Aym4JCH5hTnSqVFt
    Aym4JCH5hTnSqVFt
    rDZFWtLUxPj4hCIK

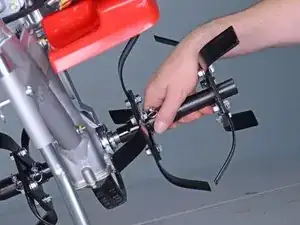

    • Pull the tines straight off of the tine shaft.

  4. DuiAlUdrYMQmwKfY
    DuiAlUdrYMQmwKfY
    6PkP4GfIRqCyv1xn

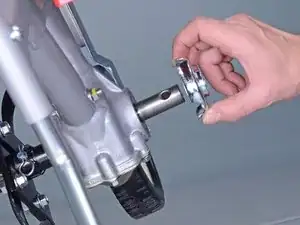

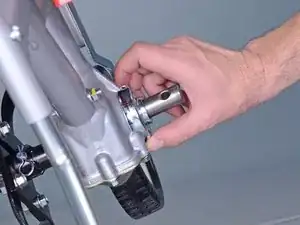

    • Pull the grass guard straight off of the tine shaft and remove it.

  5. 2qaLy5KP2Ywp6uRH
    2qaLy5KP2Ywp6uRH
    QOLTeyVvqUmMqbWQ
    TRXHF361xjxVPBKx

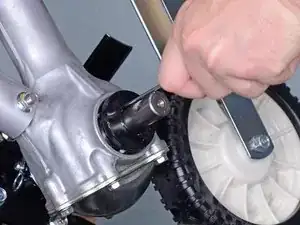

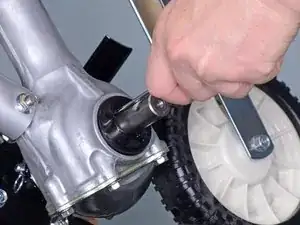

    • Slide an angled pick under the inner ring of the seal so that you can pry the seal out of the reduction case.

    • If you did not drain the oil already, oil may start to leak out as soon as you insert the pick. Make sure you have a container ready to contain the spillage.

    • Pry the seal out of the reduction case, taking care not to mar the aluminum reduction case.

    • It may take significant force to pry out the seal. It's rigid and fits very tightly in the reduction case.

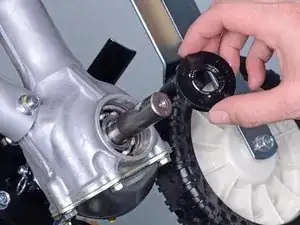

    • Remove the oil seal.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Refill the oil after reassembly.
