Use this guide to replace the throttle cable in a Honda Light Duty Tiller F220K1AT715492.

  1. IWoGKIyIaTVIVqGE
    IWoGKIyIaTVIVqGE
    5nuIbIXCMAYpCNM1
    • Before you begin, make sure the engine is switched off and cool to the touch.

    • Pull the spark plug connector straight off of the spark plug.

  2. CJnfGBabBcJNHObn
    CJnfGBabBcJNHObn
    uZVVLLdHmbx3ylWj
    • Push down on the two tabs at the top of the air filter cover.

    • With the two tabs depressed, swing the top of the cover down.

    • Remove the cover.

  3. PWpoh3v3kHvJCYBf
    • Pull the air filter out of the housing and remove it.

  4. MlkOFivNhMY31MmB
    • Use an 8 mm socket to remove the following fasteners securing the air cleaner housing:

    • Two silver nuts

    • One black bolt

  5. Va4HVV3R24b2BnqG
    Va4HVV3R24b2BnqG
    NZKMNiNBbQKCfcPT
    • Slide the pink breather tube out of its clip on the back of the air cleaner housing.

  6. F1A2vyMPPHXx3EuQ
    F1A2vyMPPHXx3EuQ
    EgIUDsnN4BSqRoyi
    JdUDWV2irbXhsmTq
    • Use a flathead screwdriver to gently pry the black breather tube off of its connector on the back of the air cleaner housing.

  7. fWuanXU6NJ6q5qHw
    fWuanXU6NJ6q5qHw
    5kv2YASZxnCutCtI
    oVUQDSF2wXUrmmPK
    • Hold the black carburetor hose in place and rotate the air cleaner housing clockwise until you can slide the hose out of its slot on the air cleaner housing.

    • Remove the air cleaner housing.

  8. CNMowCZMKUfZsHwK

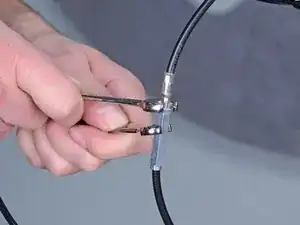

    • Use an 8 mm wrench to hold the throttle cable barrel adjuster in place while you use a 10 mm wrench to loosen the lock nut.

    • Continue to loosen the lock nut until it is against the end of the threads.

    • With the lock nut against the end of the threads, tighten the barrel until it is against the lock nut to add as much slack as possible to the cable.

  9. epxqWSEgFgHqQPoB
    epxqWSEgFgHqQPoB
    AlOGSwsaJOGN6rNs
    IbneblWAP2PZcDMC

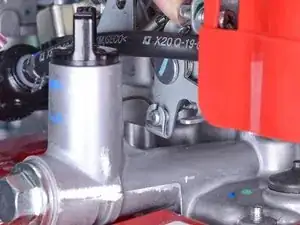

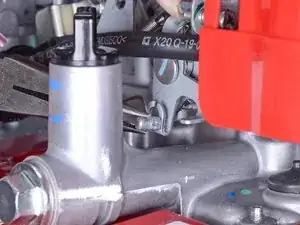

    • Lift the throttle cable straight up and slide it through the slot on the throttle control.

  10. es6rTsWGjR5hC5TD
    es6rTsWGjR5hC5TD
    hxxrpuCfDHFobhJB

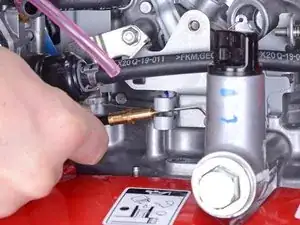

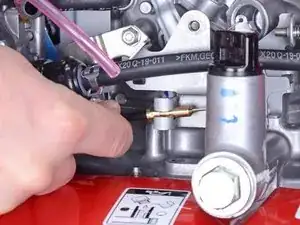

    • Slide the throttle cable housing out of its slot on the engine case.

  11. JRaHgovbytERZLw1

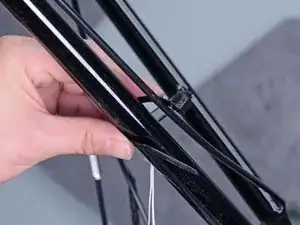

    • Remove any zip-ties securing the throttle cable.

  12. tYfhpKolO5ggsLev
    • Use a Phillips #2 screwdriver to remove the screw securing the throttle lever cover.

  13. AdjPIQZTWSQGoxoZ
    AdjPIQZTWSQGoxoZ
    qUtHxA5tG6F1Jaiv

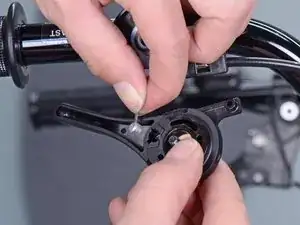

    • Remove the throttle lever cover.

    • Lift the throttle cable out of the throttle lever cover.

  14. 5RBSP15pMLYjX2CQ
    5RBSP15pMLYjX2CQ
    3QNP3dhthDtiOmqh

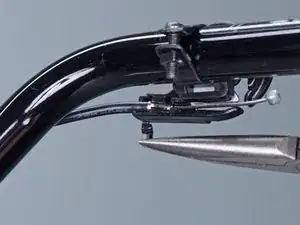

    • Slide the small clip securing the throttle cable housing out of its slot in the throttle lever.

  15. nnma2hVlQtP2Foau
    nnma2hVlQtP2Foau
    BIbgS6eBUnwORawb

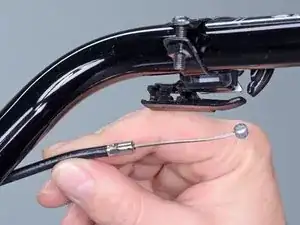

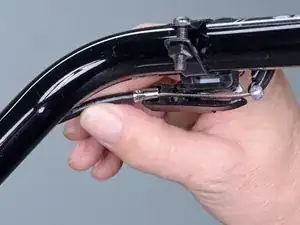

    • Slide the throttle cable housing out of the throttle lever.

    • Remove the throttle cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
