Honda Rear Tine Tiller FRC800K1A Inner Belt Cover Replacement

Geschrieben von: Carsten Frauenheim
  • Kommentare: 0
Honda Rear Tine Tiller FRC800K1A Inner Belt Cover Replacement

Schwierigkeitsgrad

Moderate

Schritte

19

Zeitaufwand

Keine Schätzung

Einleitung

Prerequisite only! This guide shows how to remove or replace the inner belt cover in a Honda FRC800K1A Rear Tine Tiller.

  1. W64s14UYWLflrhJu
    W64s14UYWLflrhJu
    VR5CMjfaIqSoDspN

    • Before you begin the repair, disconnect the spark plug wire.

    • Firmly grip the base of the connector and pull it away from the spark plug to disconnect it.

  2. KesuYQwmhQaDFSKY

    • Flip the fuel valve switch to the off position.

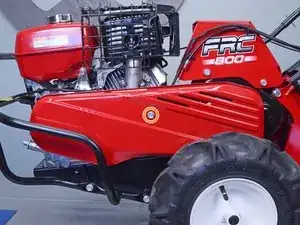

  3. Jo3621gfqkErQmHr

    • Use a 14 mm socket to remove the bolt securing the outer belt cover.

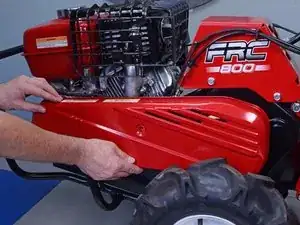

  4. Ho1bStsBJmWDyUWt
    Ho1bStsBJmWDyUWt
    hfDvvQNNhweqRRNt
    4vAZ5wT4FSa4FnWN

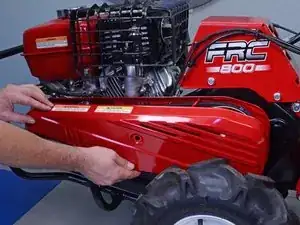

    • Tilt the outer belt cover down and pull it off of the lip on the inner belt cover to remove it.

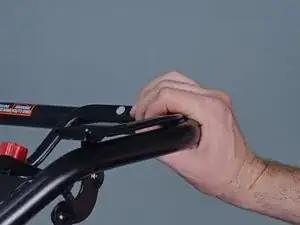

  5. 426MjaVGaXapGpiu
    426MjaVGaXapGpiu
    KDJXNbvacWlrc1hQ
    SVJm3FjbufqqJCij

    • This step may require two people.

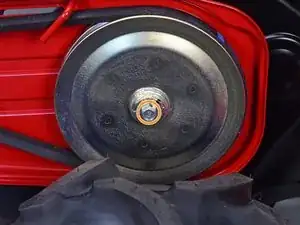

    • Pull the tine engagement lever to put belt tension on the transmission pulley.

    • With the belt taut, use a 12 mm socket to loosen the transmission pulley bolt without fully removing it.

    • The pulley will rotate with the bolt and the bolt will not be able to be removed if belt tension is not applied.

  6. u1aDgNVH1dXcIcvD
    u1aDgNVH1dXcIcvD
    jYjCdeLIvhUmXLf2
    CMFibNJsiKYhxCVa

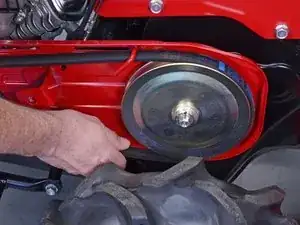

    • Push the V-belt towards the transmission pulley to release tension.

    • Slip the V-belt off of the groove in the pulley.

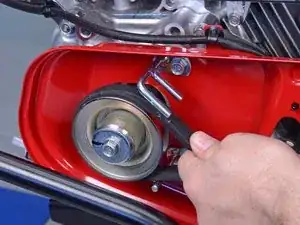

  7. R5GjvA3FWh3eXASM
    R5GjvA3FWh3eXASM
    MLUQRxYepdaVrgmi
    RUhFTYXHtPPs15Yv

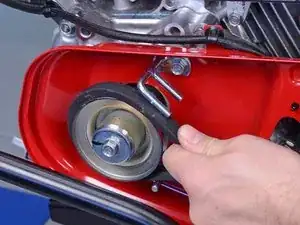

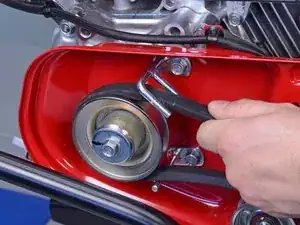

    • Pull the V-belt down and out of the way of the two-prong belt guide.

    • Push the V-belt around and off of the motor pulley to remove.

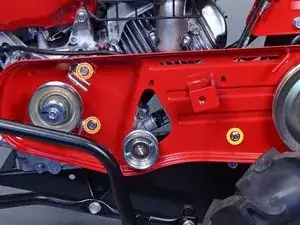

  8. oGaR2TOddbZTrQkr

    • Use a 12 mm socket to remove the two bolts securing the belt guides to the inner belt cover.

    • Use a 10 mm socket to remove the bolt securing the inner belt cover to the frame.

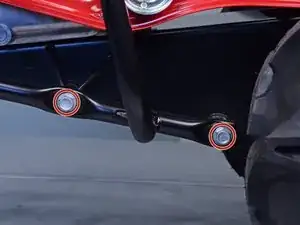

  9. WgTL2JoGAWqdpdcL
    WgTL2JoGAWqdpdcL
    tldONe5FAgGPxQlE

    • Use a 14 mm socket to loosen the two bolts securing the guard to the frame.

    • These bolts have corresponding 14 mm nuts on their opposite ends. You will need to keep the bolts steady with a wrench or socket for the nuts to become loose.

    • Remove both nuts, but do not remove the bolts yet.

  10. 1JHNrnoeHVnmhNWo
    1JHNrnoeHVnmhNWo
    sUvrxBAch1KmKaR4

    • Remove the frontmost guard bolt.

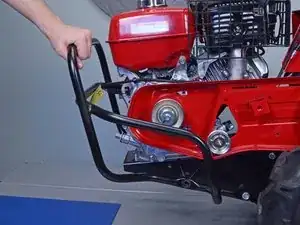

  11. hFmDVEPrHEAojaEl
    hFmDVEPrHEAojaEl
    E3o1RKJfQWCWBs1L

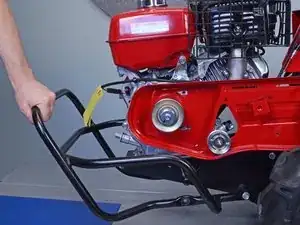

    • Grab the guard and lower it to the ground, pivoting it on the rear guard bolt.

  12. ee5LxiR1bD3GSOcW

    • Use a 12 mm socket to remove the motor and transmission pulley bolts.

    • Hold the pulleys steady to more easily remove the bolts.

  13. J2YxsDvVCynWtAf6
    J2YxsDvVCynWtAf6
    AkVP1s4SQELYOpMf

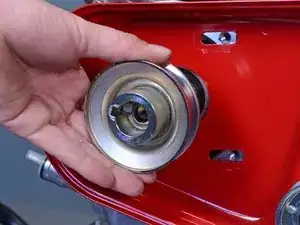

    • Remove the motor pulley.

    • Keep track of the key—which may fall out on its own—and keep it with the motor pulley.

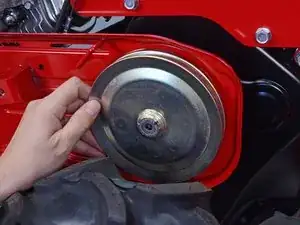

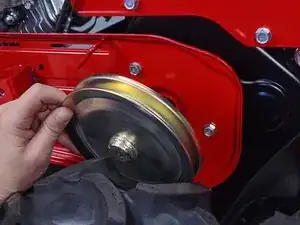

  14. TmNsHwwaPPyDH2Cg
    TmNsHwwaPPyDH2Cg
    SIwMVJNowq3y2Puf
    l5eKAFW5ugh5XRMB

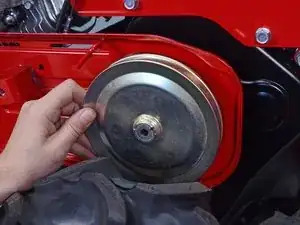

    • Pull the transmission pulley straight off of the splined shaft to remove.

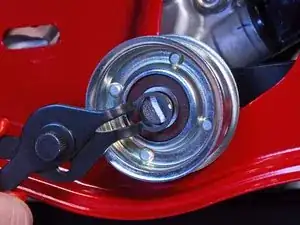

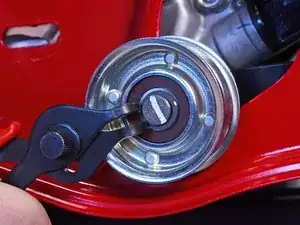

  15. xHQfvUaMMKgHAyRj
    xHQfvUaMMKgHAyRj
    SebBMvmOErOuKcWb
    PuK2RDJGxjh2VK3J

    • Use snap ring pliers to remove the snap ring securing the tensioner pulley to its shaft.

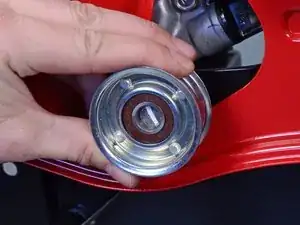

  16. N3DLOihP3WppZeIO
    N3DLOihP3WppZeIO
    Tsl3nEDohDQhMQBU

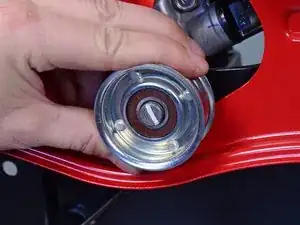

    • Remove the tensioner pulley.

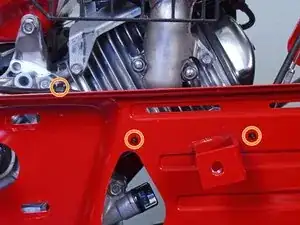

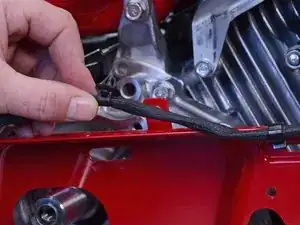

  17. UhBOZQNHNQFBMqsG
    UhBOZQNHNQFBMqsG
    towJUPUPkhHCuCEl
    GpgafUv1hVYkId1X

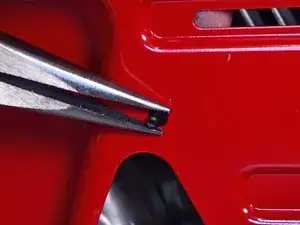

    • Use needle nose pliers to remove the three wire clips securing various cables to the back of the inner belt cover.

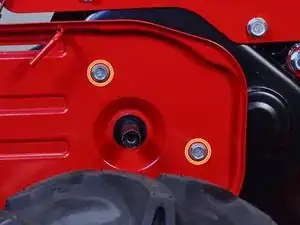

  18. EcQ5qMUe2yyhIgfS

    • Use a 12 mm socket to remove the two remaining inner belt cover bolts behind the transmission pulley.

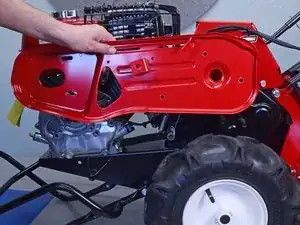

  19. qNgEgBcRAnYf5V4T
    qNgEgBcRAnYf5V4T
    xZWCLGp3uYEmuaqg
    1GfuJKHojufJrrGB

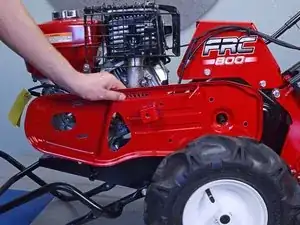

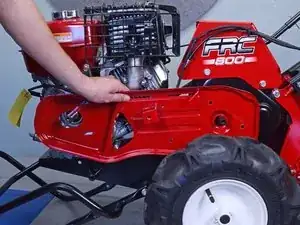

    • Pull the inner belt cover clear of the motor and transmission shafts.

    • Remove the inner belt cover.

Abschluss

To reassemble your device, follow these instructions in reverse order.
