Honda Rear Tine Tiller FRC800K1A Rotary Tine Oil Seals Replacement

Geschrieben von: Carsten Frauenheim
  • Kommentare: 0
Honda Rear Tine Tiller FRC800K1A Rotary Tine Oil Seals Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

This guide shows how to remove and replace the rotary tine oil seals on a Honda FRC800K1A Rear Tine Tiller.

Drain the oil from the transmission before beginning this process.

After completing this procedure, refill the transmission with 5.3 quarts of SAE 10W-30 oil.

  1. W64s14UYWLflrhJu
    W64s14UYWLflrhJu
    VR5CMjfaIqSoDspN

    • Before you begin the repair, disconnect the spark plug wire.

    • Firmly grip the base of the connector and pull it away from the spark plug to disconnect it.

  2. KesuYQwmhQaDFSKY

    • Flip the fuel valve switch to the off position.

  3. 1BPGFcfwJ1KOZiEM
    1BPGFcfwJ1KOZiEM
    HDxThvpElgsONgGI

    • Use a 12 mm socket and wrench to remove the six sets of side guard bolts and nuts, three on each side.

  4. y4FF4R6AfRKIGmXt
    y4FF4R6AfRKIGmXt
    SCmiC2wZlcSYjFDR

    • Slide the side guard off of the curved main guard to remove.

    • Repeat the same process on the opposite side.

  5. FATrjFqAJmeTYcgV

    • Use a 14 mm socket to remove the two rotary tine retaining bolts.

    • Repeat the same process on the opposite rotary tine.

  6. SR1WRHIPjBqcNxyp
    SR1WRHIPjBqcNxyp
    lAw2cnThFUlrBplf
    gufNjagTqvFpo1GY

    • Slide the rotary tine off its axle to remove it.

    • Repeat the same process on the opposite rotary tine.

  7. xmVCCVqFoc3kehip
    xmVCCVqFoc3kehip
    rR6JUu3hVccThSkS

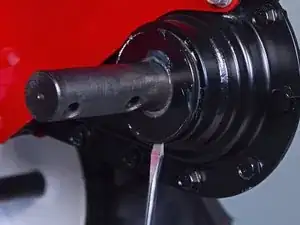

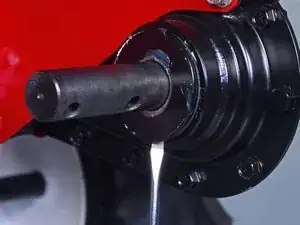

    • Wedge a large flathead screwdriver underneath the metal lip on the oil seal.

    • Firmly pry the seal away from the transmission.

  8. oOMWCK5sIhRMQPir
    oOMWCK5sIhRMQPir
    FTCCAvOsQBoWAIKa

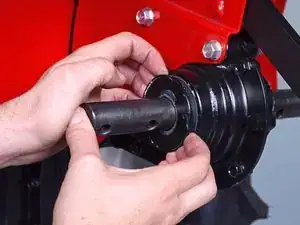

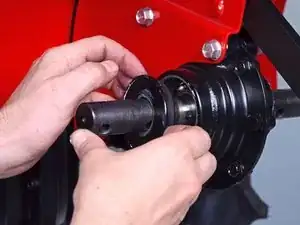

    • With enough room to grab the oil seal, pull it out of its housing.

    • Remove the oil seal.

    • Repeat the same process on the opposite rotary tine.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Refill the transmission with 5.3 quarts of SAE 10W-30 oil.
