This guide shows how to remove and replace the oil seals on the wheel shaft in a Honda FRC800K1A Rear Tine Tiller.

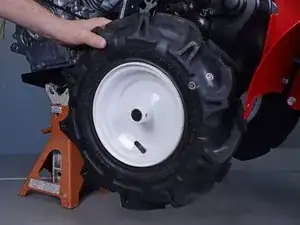

You will need to support the tiller during this process. Use jack stands, large pieces of wood, or other strong supports. Rock the tiller back and forth on its supports before beginning to ensure that it won’t fall or tip over during repairs.
Drain the oil from the transmission before beginning this process.
After completing this procedure, refill the transmission with 5.3 quarts of SAE 10W-30 oil.
Ersatzteile
-
-
Firmly grip the base of the connector and pull it away from the spark plug to disconnect it.
-
-
-

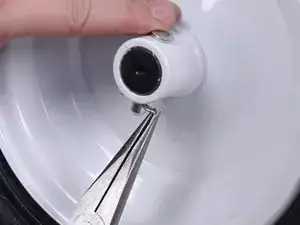

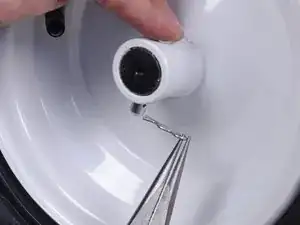

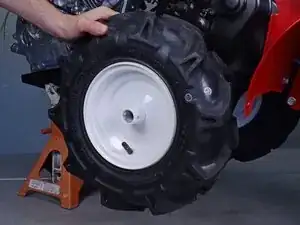

Use needle nose pliers to remove the cotter pin from the wheel lock pin.
-

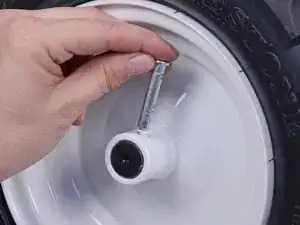

Remove the wheel lock pin.
-
-
-

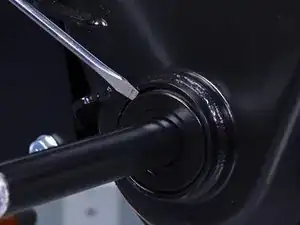

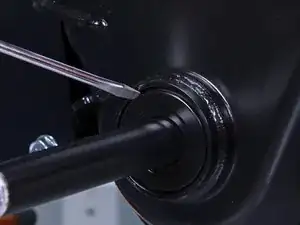

Wedge a large flathead screwdriver underneath the metal lip on the oil seal.
-

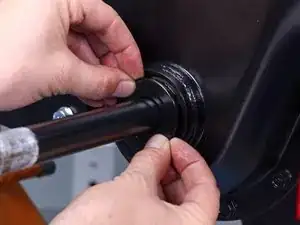

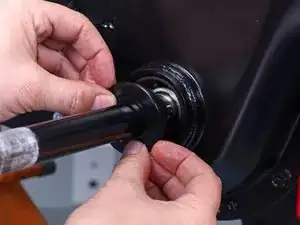

Firmly pry the seal away from the transmission.
-
To reassemble your device, follow these instructions in reverse order.
Refill the transmission with 5.3 quarts of SAE 10W-30 oil.
