Honeywell HY-204 Fan Motor Replacement

Geschrieben von: Armando Jacob Espinoza
  • Kommentare: 2
Honeywell HY-204 Fan Motor Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide will walk you through the removal of your fan motor. It should be fairly easy, although you will need to crimp the wires to remove the motor.

  1. nDZAsi3nLGqSO6oH
    nDZAsi3nLGqSO6oH
    EF2pENciU6pvCv2A

    • Before you begin, be sure to unplug the fan.

    • Remove the four 14 mm screws from the back of the device using the Phillips #0 Screwdriver.

  2. ZSHgxaWh3ZB3mxyn
    ZSHgxaWh3ZB3mxyn
    yAGOJE2ykBMMBMEL

    • Pull the front and back parts of the case away from each other until the back is free from the front. This may require a large amount of force.

  3. QG1hbZLAA56LrRVZ
    QG1hbZLAA56LrRVZ
    SHqCAYU2XwXSW2RW

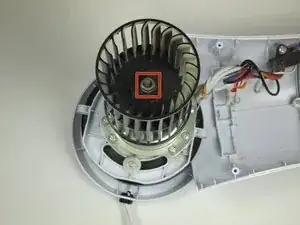

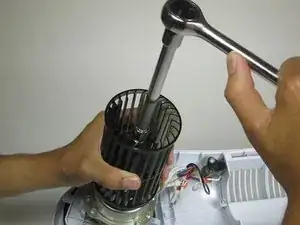

    • Remove the hex nut from the fan motor with a 10mm hexagonal ratcheting socket wrench.

    • The nut uses a left-handed thread.

  4. ArEAWdYS5lYQfXjQ
    ArEAWdYS5lYQfXjQ
    NgdhFuMa5Djef5yI

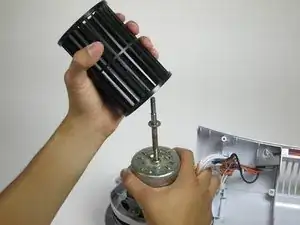

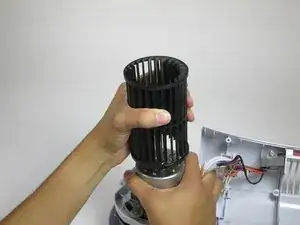

    • Grasp the fan blade firmly and pull upward to remove it from the center column of the fan.

    • The slots on the fan blades and center column need to be aligned for reassembly.

  5. ZGPAOSpxkZoEIOQ3
    ZGPAOSpxkZoEIOQ3
    3diMHqUTPD4SNVMx

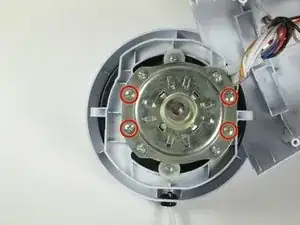

    • Remove the four 12.7mm screws using the Phillips #0 Screwdriver.

    • Once the screws are removed, lift the motor off its base.

  6. mW42FPwDtfNYrAvU
    mW42FPwDtfNYrAvU
    YxTFNQwgBLNil5TG

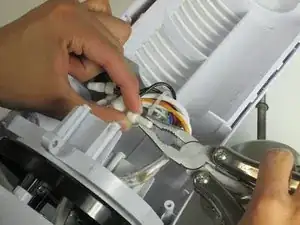

    • Remove the wire connectors from the black, brown, red, blue, white, grey, and green wires. To do this, grip each wire with your hand and use the pliers to de-crimp the heads of each wire connector by applying pressure to the wider ends of the connector until it falls free.

    • While reassembling, apply pressure to the more narrow ends of the wire connectors to re-crimp them onto the wires.

Abschluss

To reassemble your device, follow these instructions in reverse order.
