Honeywell HY-204 Rotation Button Replacement

Geschrieben von: Nolan Ernotte
  • Kommentare: 0
Honeywell HY-204 Rotation Button Replacement

Schwierigkeitsgrad

Difficult

Schritte

7

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide shows how to replace the rotation button that controls the oscillation of your fan. Replacing the rotation button requires soldering, so it may be a little tricky for those of you who are inexperienced with soldering.

  1. nDZAsi3nLGqSO6oH
    nDZAsi3nLGqSO6oH
    EF2pENciU6pvCv2A

    • Before you begin, be sure to unplug the fan.

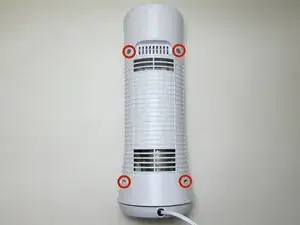

    • Remove the four 14 mm screws from the back of the device using the Phillips #0 Screwdriver.

  2. ZSHgxaWh3ZB3mxyn
    ZSHgxaWh3ZB3mxyn
    yAGOJE2ykBMMBMEL

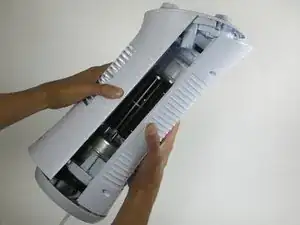

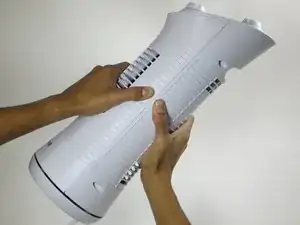

    • Pull the front and back parts of the case away from each other until the back is free from the front. This may require a large amount of force.

  3. ctapIrovjXyPjQQS
    ctapIrovjXyPjQQS
    lBYFVqFHHq5rqJXH

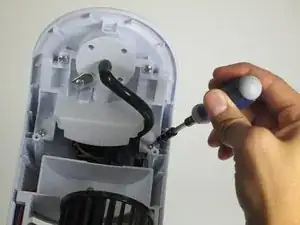

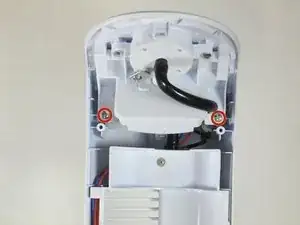

    • Remove the two 3mm screws found just below the top of the device using the Phillips #0 Screwdriver.

  4. JCuIaSO1QQkFXxM4

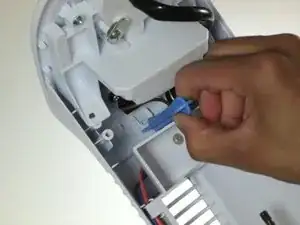

    • Pry off the control panel by forcefully lifting the tab located inside the front of the fan with the plastic opening tool.

  5. HxHQRqoM1qD3hAvl
    HxHQRqoM1qD3hAvl
    YDQCYLX3bFmI3HoU

    • Remove the two 10mm Phillips #0 screws that are located next to the rotation button.

  6. ikEDQmeCqgSFbuY6

    • Peel back the heat shrink tubing on both wires connecting to the button.

  7. NujeDfOCpDwpUcpN

    • Caution The soldering iron is very hot, be careful to avoid burns.

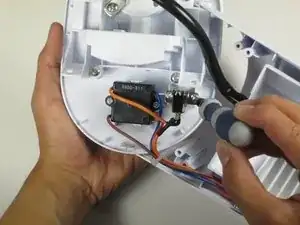

    • Desolder the two wires connected to the button and remove the button.

Abschluss

To reassemble your device, follow these instructions in reverse order.
