Honeywell HY-204 Rotation Motor Replacement

Geschrieben von: Armando Jacob Espinoza
  • Kommentare: 2
Honeywell HY-204 Rotation Motor Replacement

Schwierigkeitsgrad

Difficult

Schritte

5

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide will walk you through the steps to remove your rotation motor. Though disassembly is simple, it is a difficult process to put back together because you have to solder wires or use a wire connector to reattach a new rotation motor.

  1. IasZ1mLdUGlTpJCk

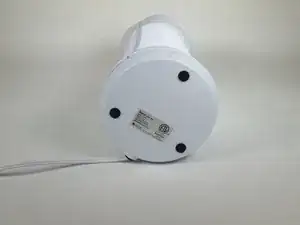

    • Before you begin, be sure to unplug the fan.

    • Lay fan on the ground and use your fingers peel the three feet off the bottom of the fan.

  2. a3ORCGpIG1oPK5Hf

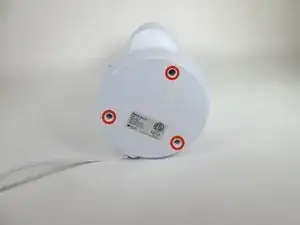

    • Remove the three 12mm screws using the Phillips #0 Screwdriver.

  3. kkKICRDDihDFjWCs
    kkKICRDDihDFjWCs
    BeZgEJAoiNxgExZG

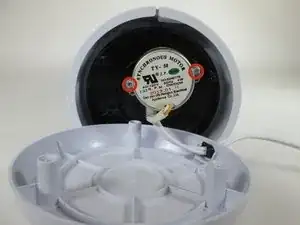

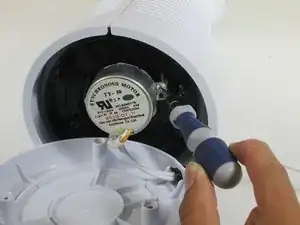

    • Remove the two 10mm screws using the Phillips #0 Screwdriver.

  4. 6ABUSWZ36qrP1rfW

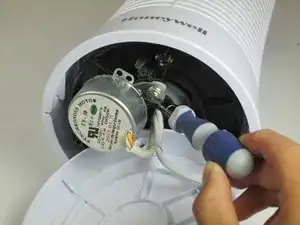

    • Move the rotation motor left and right to reveal the screw connecting it to the fan.

    • Remove the 18mm screw from the side of the motor using the Phillips #0 Screwdriver.

  5. yFZkJPSOdZOV3U5H

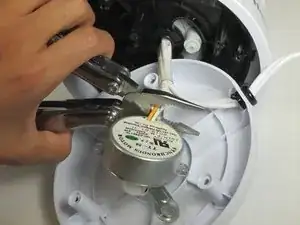

    • Using the wire cutters, severe the wires connecting the rotation motor to the fan.

    • To put back together you will need to resolder or use wire connectors to reattach motor.

Abschluss

To reassemble your device, follow these instructions in reverse order.
