Einleitung
Follow this guide to remove the fan blade to allow for cleaning or replacement.
Werkzeuge
-
-
Remove the two 3/4" wing screws on the bottom of the fan by rotating them counter-clockwise.
-
-
-
Twist the fan base counter-clockwise until the pins line up as shown.
-
Pull the base straight towards you to remove it, feeding the wire through the base.
-
-
-
Remove all of the marked 1/2" Phillips #02 screws on the backside of the fan
-
Remove the two marked 3/4" Phillips #02 screws in the middle.
-
-
-
Use a plastic opening tool or screwdriver to pry off the back of the fan, starting from the top down.
-
-
-

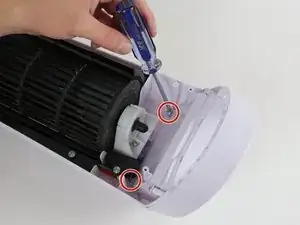

Unscrew the two 1/2" Phillips #02 screws.
-

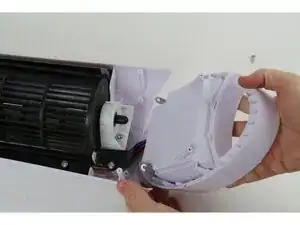

Upon doing so, the front panel of the fan can be leaned forward and set down.
-
-
-

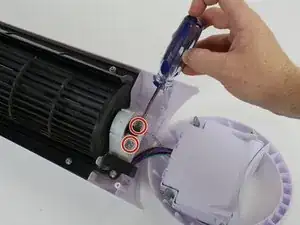

Unscrew the two marked 1/2" Phillips #02 screws on the part holding the fan blade.
-

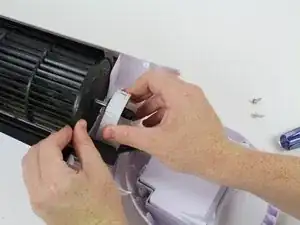

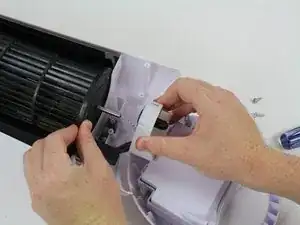

Slide the plastic fan cap off the fan while holding the fan blade to ensure it comes off smoothly.
-
-
-

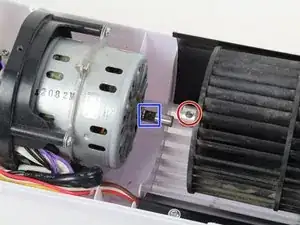

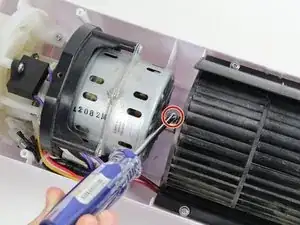

Remove the 1/4" Phillips #02 screw between the fan and the motor, located at the bottom of the fan.
-
-
-

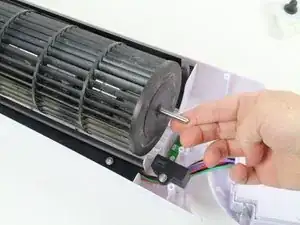

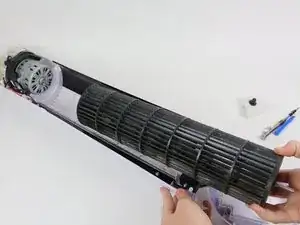

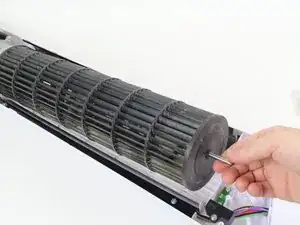

Return back to the top of the fan blade. Lift the fan blade to a slight angle and gently pull it towards you.
-
To reassemble your device, follow these instructions in reverse order.
