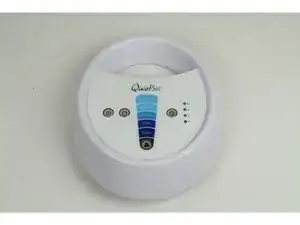

Honeywell HY-254-TGT Front Panel Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

10 - 15 Minuten

Einleitung

Follow this guide to remove or repair any of the parts related to the front panel.

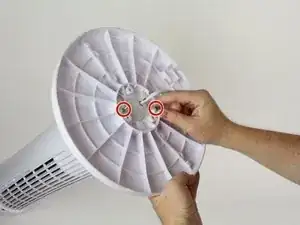

  1. gWwYC4FGFIJqXdsi

    • Remove the two 3/4" wing screws on the bottom of the fan by rotating them counter-clockwise.

  2. VUsSIphKkAHYZU5U
    VUsSIphKkAHYZU5U
    kqp6JPDHv4FesEt4
    NVV5MBGRVB6qFLqk

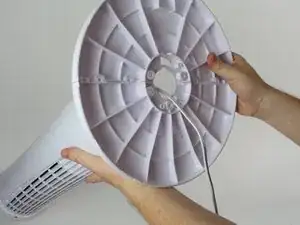

    • Twist the fan base counter-clockwise until the pins line up as shown.

    • Pull the base straight towards you to remove it, feeding the wire through the base.

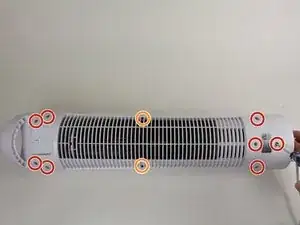

  3. wcxncFF3gFce4Ass

    • Remove all of the marked 1/2" Phillips #02 screws on the backside of the fan

    • Remove the two marked 3/4" Phillips #02 screws in the middle.

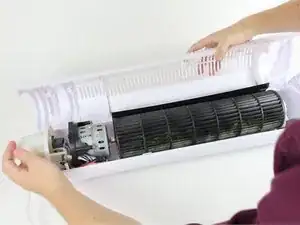

  4. FN3wRqlY2avBcXbF
    FN3wRqlY2avBcXbF
    1UPuuxNptuwb5XR5
    ZGMmdgduMqvLcjKr

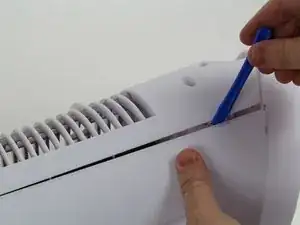

    • Use a plastic opening tool or screwdriver to pry off the back of the fan, starting from the top down.

    • Be aware of two clips inside the fan, towards the bottom third of the fan. If the back appears stuck on certain spots, push inward edges of the front casing around the problematic area.

    Please advise how I can order the part which locating on bottom of motor mount bracket. The white colour bracket for fan body diretion rotorying aid. The part as show on picture on left hand side holding. Thanks.

    jamescpleung -

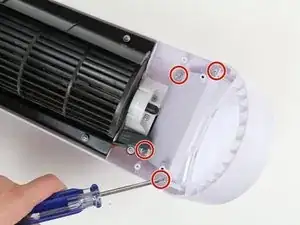

  5. BLvBLeJXIANL2Zua
    BLvBLeJXIANL2Zua
    4aTrFaXLXZOPkPSU

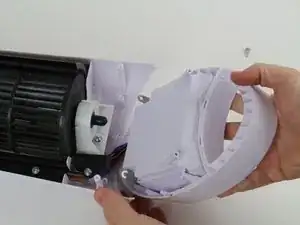

    • Remove the four 1/2" Phillips #02 screws, indicated by a red circle.

    • Lean the front panel forwards and set it down.

    • The front panel will not fully detach and cannot be removed. Do not try to forcibly remove it, as it may cause damage to the electronics.

  6. D31tIKpbfRK1WuFV
    D31tIKpbfRK1WuFV
    JXXfxoDYhLW1EB1q

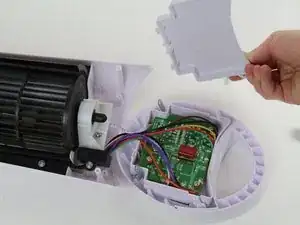

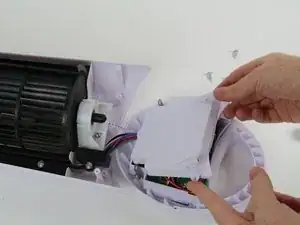

    • Gently lift and remove the panel covering the electronics assembly.

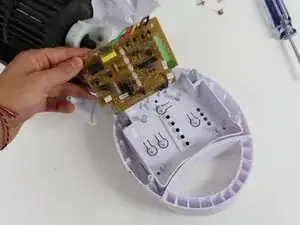

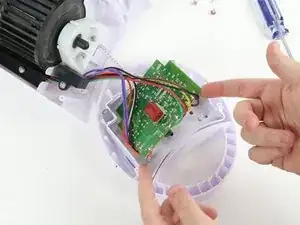

  7. cHIcSPr1TWbcYMsL
    cHIcSPr1TWbcYMsL
    EJmCjTuj2YHCZJEd
    vQQKBguDJYJWeSd1

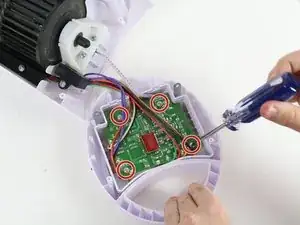

    • Remove the four 1/2" Phillips #01 screws in the circuit board.

    • Gently pull the circuit board off of the rest of the front panel assembly.

  8. M11ULqevkLXLgbnq
    M11ULqevkLXLgbnq
    erHFxJ3vayZvoIyo
    VEjYgxjBNvGU4Mrh

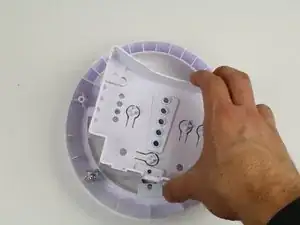

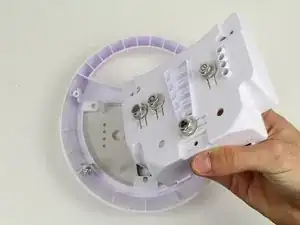

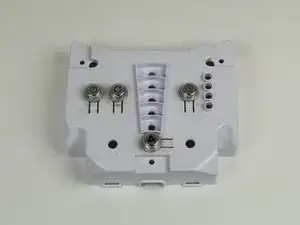

    • Lift out the internal part of the front panel to access the buttons.

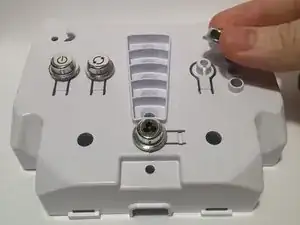

  9. OHqYbYN2CYtHp5HJ

    • If necessary, remove the buttons by grabbing them with two fingers and pulling up and away from the panel.

    • Upon reassembly, ensure buttons are placed in the correct location.

Abschluss

To reassemble your device, follow these instructions in reverse order.
