Hoover LiNX The Nozzle Prongs Replacement

Geschrieben von: Sara Vlhova
  • Kommentare: 2
Hoover LiNX The Nozzle Prongs Replacement

Schwierigkeitsgrad

Easy

Schritte

11

Zeitaufwand

10 Minuten

Einleitung

This guide will show you how to replace the nozzle prongs in the motor in the nozzle. This guide would be needed if the prongs on your device are bent out of shape or if they are not transmitting power to the brush roll motor. Remember to remove thee battery from the device before starting this guide.

  1. UKTPb5BkFDR6ygmT

    • Detach the rolling assembly from the body by pushing the button found at the base.

  2. yLT2cEcJZqC3jhAt

    • Remove the seven 7.5mm Phillips #1 screws from the brush retainer.

  3. PvpFcQkTZgMOZpkU
    PvpFcQkTZgMOZpkU
    AP6rsnLvNiD1GwjK

    • Remove the brush and retainer from the rolling assembly.

    • The brush will need to be disconnected from the belt.

  4. luZ2ltZU12W6MquQ

    • Remove the eight 4mm Phillips #1 screws from the bottom panel.

  5. sLUtPF2KlCUvJ1Cs

    • Remove the bottom panel.

  6. ZJyvBWKQp6XnAWLe

    • Remove the motor.

  7. GKpdT6DGMQ3EtAU5

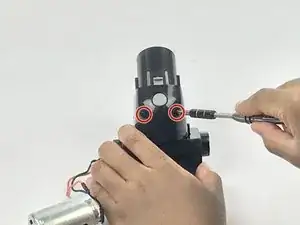

    • Remove the two 7.5mm Phillips #1 screws from the main body.

  8. hSTdYhRIpAvxfj15

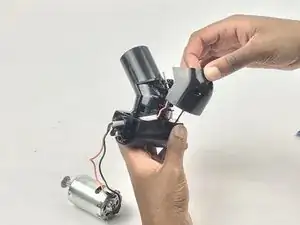

    • Remove the black covering from the air tube.

  9. eBjP6CeLuSV2wSgr

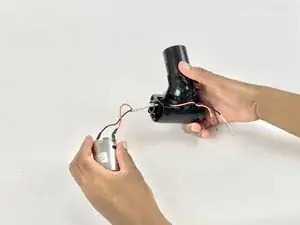

    • Slide the prongs out through their channels.

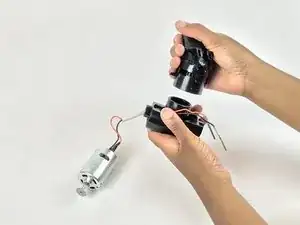

  10. nAPKOLP22PrWUwZv
    nAPKOLP22PrWUwZv
    3nZyYMH4Mmgu4KJ2

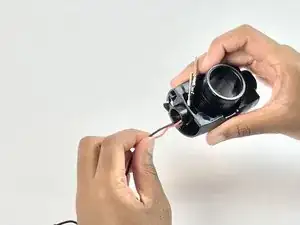

    • Remove the angled neck and feed the prongs out through their channels.

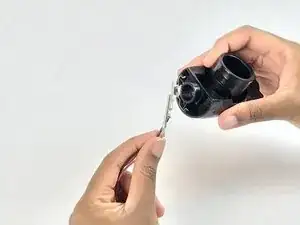

  11. KpXJrKSdoNQKAEIU
    KpXJrKSdoNQKAEIU
    QyRbAr4hEpPpoxqG

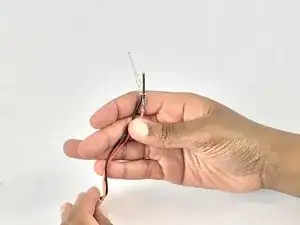

    • Replace the prongs.

Abschluss

To reassemble your device, follow these instructions in reverse order.
