Hoover LiNX Wheel Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

20 Minuten

Einleitung

This guide will show you how to replace the wheels of your device. This would be needed if your device fails to roll on the flooring or if they simply broke apart. Be sure to remove the battery from the device and switch the power off.

  1. UKTPb5BkFDR6ygmT

    • Detach the rolling assembly from the body by pushing the button found at the base.

  2. yLT2cEcJZqC3jhAt

    • Remove the seven 7.5mm Phillips #1 screws from the brush retainer.

  3. PvpFcQkTZgMOZpkU
    PvpFcQkTZgMOZpkU
    AP6rsnLvNiD1GwjK

    • Remove the brush and retainer from the rolling assembly.

    • The brush will need to be disconnected from the belt.

  4. luZ2ltZU12W6MquQ

    • Remove the eight 4mm Phillips #1 screws from the bottom panel.

  5. sLUtPF2KlCUvJ1Cs

    • Remove the bottom panel.

  6. ZJyvBWKQp6XnAWLe

    • Remove the motor.

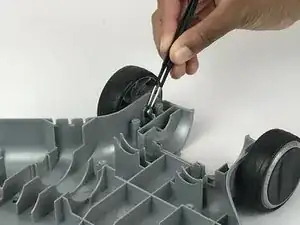

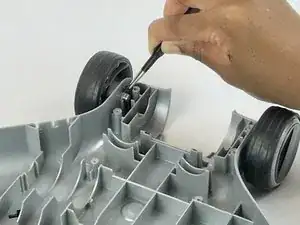

  7. wxrPCFxSjL1nZfso
    wxrPCFxSjL1nZfso
    U2Z5tacWTLuBZbYK

    • Remove the black plastic clamp from inside the wheel axle.

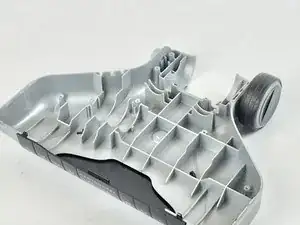

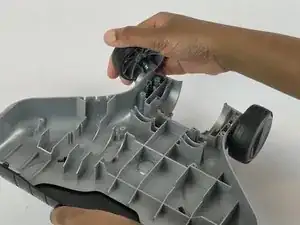

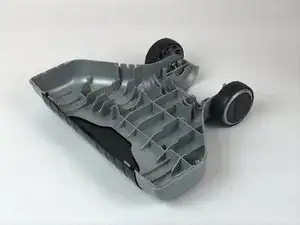

  8. hFk4KFihVaoraZic
    hFk4KFihVaoraZic
    QVLdLfScSaNIcqaC
    SEH3SEAOQeHxF3W4

    • Remove broken wheel and replace.

Abschluss

To reassemble your device, follow these instructions in reverse order.
