Einleitung
Instructions on how to replace the height adjustment wheels at the bottom of the vacuum.
Werkzeuge
-
-

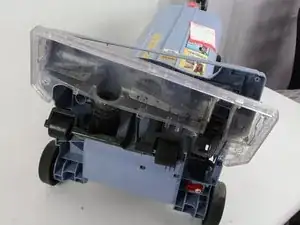

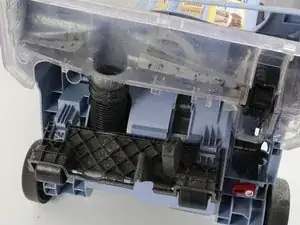

Place the vacuum on its back.
-
Push the red switch to the left.
-

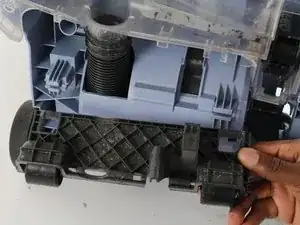

The black cover will then pop out. Remove the cover.
-
-
-

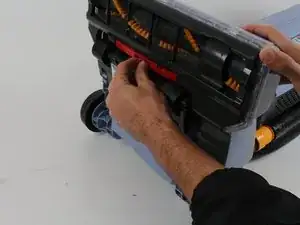

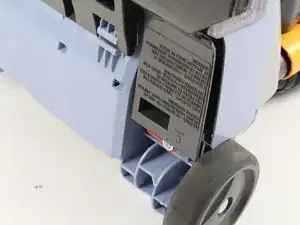

Locate the red switch near the head of the vacuum.
-
Push the switch left.
-

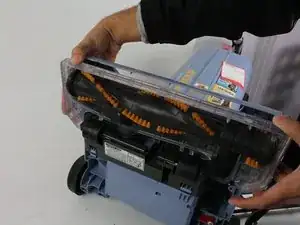

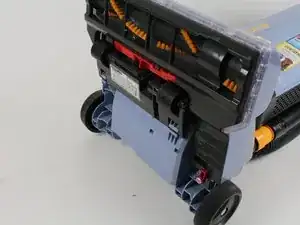

This will pop out the plastic base plate. Remove the plate from the vacuum.
-
-
-

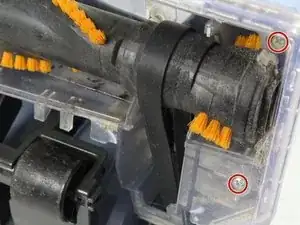

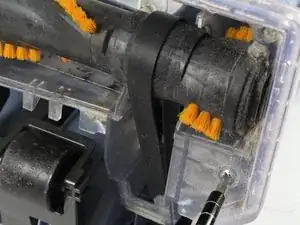

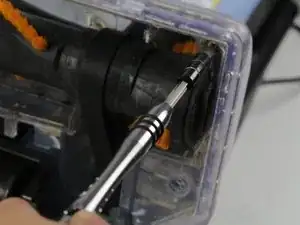

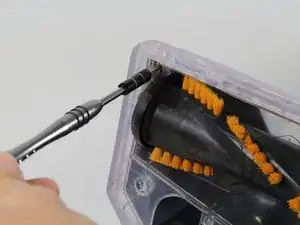

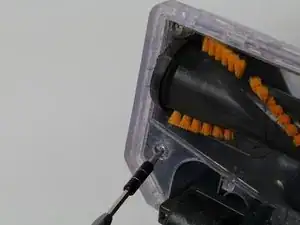

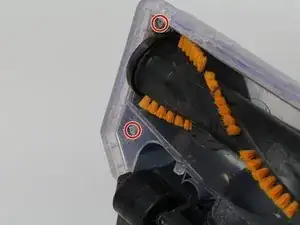

Use a Phillips #1 screwdriver to remove the screws from the right side of the white plastic frame.
-
-
-

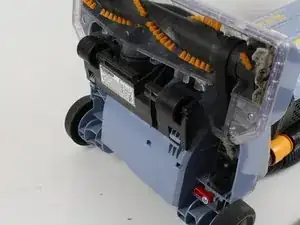

Pull the white plastic frame away from the vacuum.
-
Slide the vacuum belt off the metal rod.
-

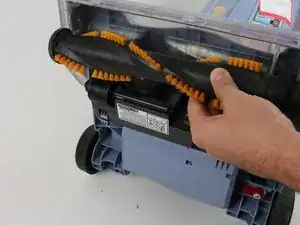

Pull the brush off the vacuum.
-
-
-

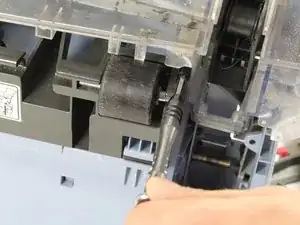

Pop off the right side of the white frame.
-

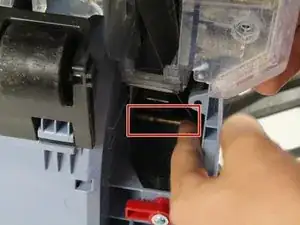

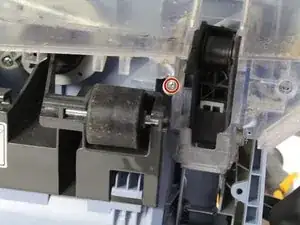

Pull down the blue hinge and roller.
-
Pull free the roller from the vacuum.
-
To reassemble your device, follow these instructions in reverse order.
