Einleitung

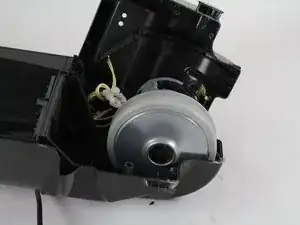

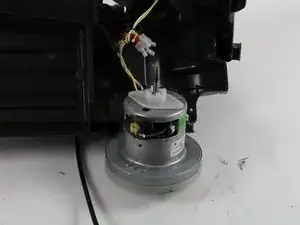

The motor is the most important part of the vacuum as without it, the vacuum cannot create suction. This is a walkthrough on how to replace the motor.
Werkzeuge
-
-

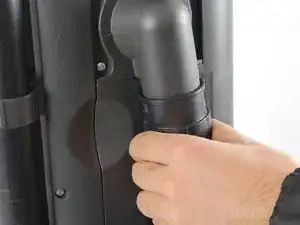

Next, remove the hose from the connector, near the top of the vacuum's rear. This can be achieved by twisting and then pulling down.
-
-
-

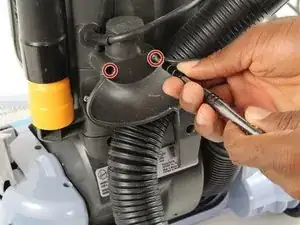

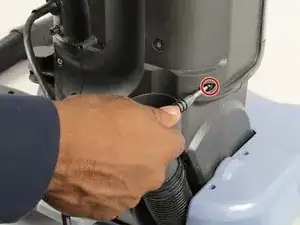

Use a Phillips #1 screwdriver to remove the two screws on the part holding the hose to the back of the vacuum.
-
-
-

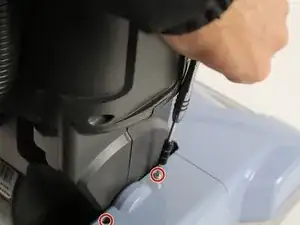

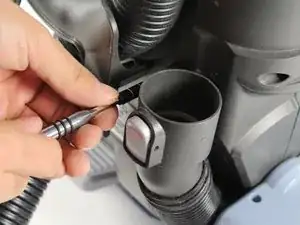

Use a Phillips #1 screwdriver to remove the two screws on the top of the vacuum holding the tab on the left of the vacuum.
-
-
-

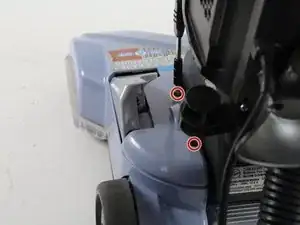

Use a Phillips #1 screwdriver to remove the two screws on the top of the vacuum head holding down the tab on the right.
-

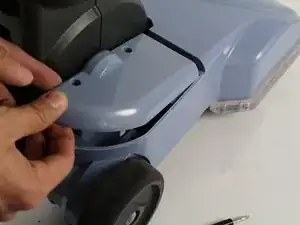

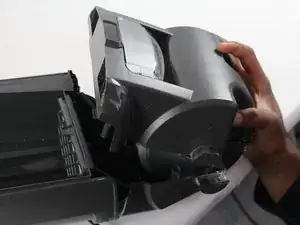

To remove the tab, slide backwards and then pull up. There is a tab holding the piece down so use force if necessary.
-
-
-

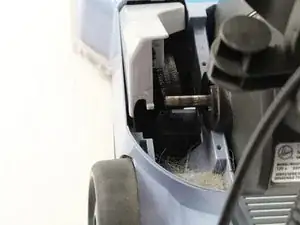

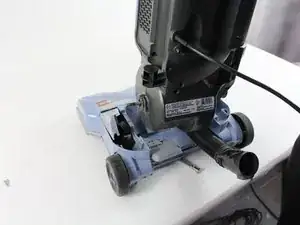

Slide the belt off of the metal rod on the left of the vacuum shaft. Pull the vacuum up and it should easily separate into two pieces.
-
-
-

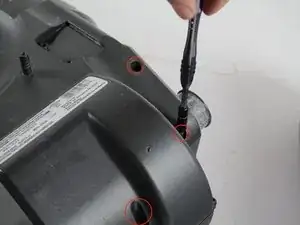

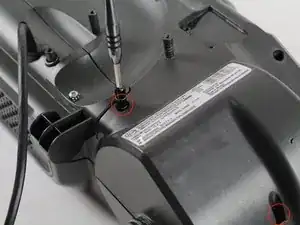

Use a Phillips #1 screwdriver to remove the 6 screws on the back and bottom of the vacuum shaft.
-
To reassemble your device, follow these instructions in reverse order.
