Einleitung
This guide will walk you through the process of replacing a malfunctioning motherboard in a Hott T725-8G.
Ersatzteile
-
-

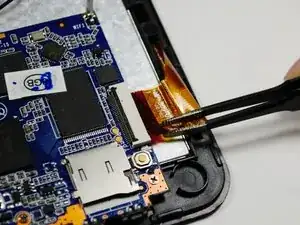

Squeeze both sides of the protector over the ribbon wire to release it.
-

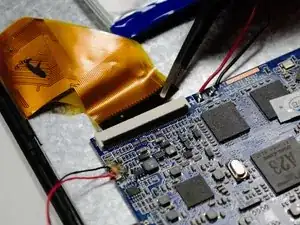

Use the tweezers to gently remove the ribbon wire from the holder.
-
Repeat steps for all three ribbon wires shown.
-
-
-

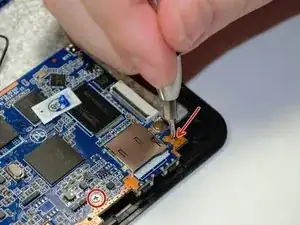

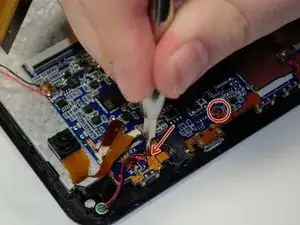

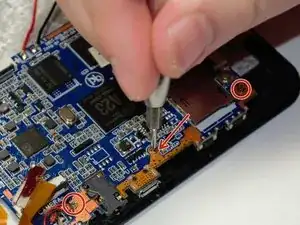

Use the #000 Phillips screw driver to remove all three 2.2mm screws attached to the mother board.
-
Abschluss

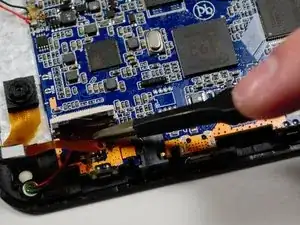

You are now able to remove the motherboard.
To reassemble your device, follow these instructions in reverse order.
