Hover-1 Charger LED Headlight Replacement

Geschrieben von: Benji Forest

Kommentare: 0

Hover-1 Charger LED Headlight Replacement

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

10 - 15 Minuten

Einleitung

If the LED headlights on your Hover-1 Charger (H1-COL) are not turning on, you may have to replace them. Before you begin disassembling your hoverboard, check out our troubleshooting page that addresses LED headlights. If the problem persists, this guide will help you replace your hoverboard’s right LED headlight. Removal of the left headlight will follow very similar steps.

Make sure to wear an anti-static wrist strap to protect the electronics against buildup of static electricity. Some screw housings are fragile; they may fall apart when the screw is removed.

Werkzeuge

Schritt 1

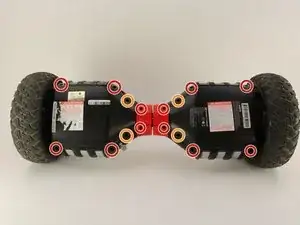

Flip the hoverboard over so that the warning label is facing up.
Remove the twelve 12 mm screws with a Phillips #2 screwdriver.
Remove the four 10 mm screws with a Phillips #2 screwdriver.
The screws nearest to the wheels may be hard to access. Be sure to use a long, thin screwdriver.

Schritt 2

Pull the right cover away from the hoverboard to expose the battery.

Schritt 3

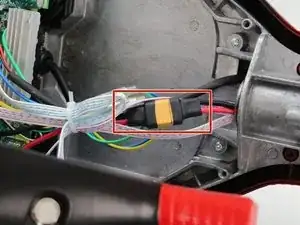

Disconnect the two pronged black and yellow cable.

Schritt 4

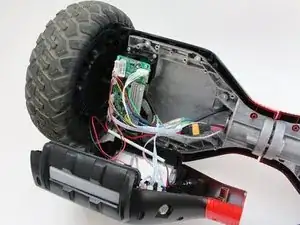

Pull the left cover away from the hoverboard.

Schritt 5

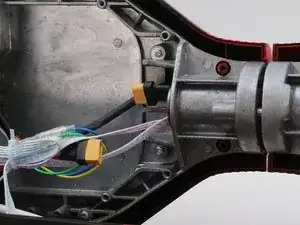

Disconnect the two pronged black and yellow cable. The battery is now fully disconnected.

Schritt 6

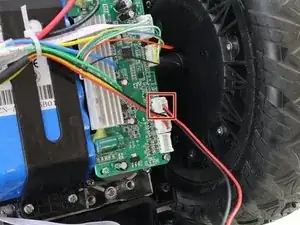

Remove the black and red two pin connector from the circuitboard.

Schritt 7

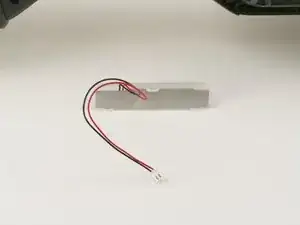

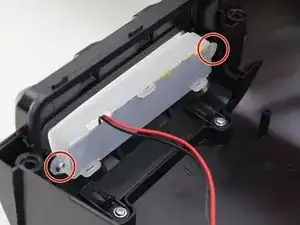

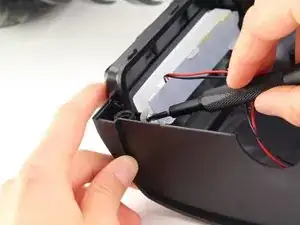

Remove the two 12mm screws holding the LED to the front cover with a Phillips #2 screwdriver.
Our Hoverboard was missing a screw in the LED housing. Yours may or may not be missing screws as well.
