Hover-1 Charger Outer Shell Replacement

Geschrieben von: Mark Rapiz
  • Kommentare: 1
Hover-1 Charger Outer Shell Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

45 Minuten

Einleitung

If the outer shell of your Hover-1 Charger (H1-COL) is damaged, it may have to be replaced. This guide details instructions to completely remove the outer shell.

In this guide, the right or left cover refers to the portion of the outer shell that contains the LED headlights. The right or left foot pad refers to the portion of the outer shell that the user places their foot on.

Make sure to wear an anti-static wrist strap to protect the electronics against buildup of static electricity. Some screw housings are fragile; they may fall apart when the screw is removed.

  1. ZwNKHPvuyA6f5fFB
    ZwNKHPvuyA6f5fFB
    y5iGqoLOtX1T6nrn

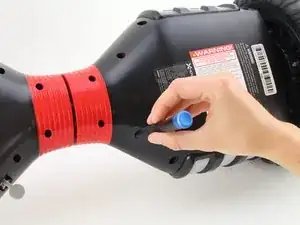

    • Flip the hoverboard over so that the warning label is facing up.

    • Remove the twelve 12 mm screws with a Phillips #2 screwdriver.

    • Remove the four 10 mm screws with a Phillips #2 screwdriver.

    • The screws nearest to the wheels may be hard to access. Be sure to use a long, thin screwdriver.

  2. M4nUFgBtJGRNCTki

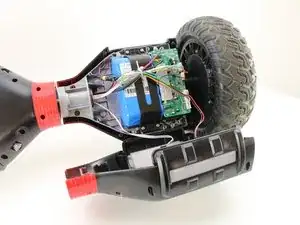

    • Pull the right cover away from the hoverboard.

  3. oZ5ftIKL3hPaZBcW
    oZ5ftIKL3hPaZBcW
    KMADwXxXPPXCXSeD

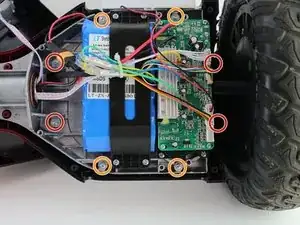

    • Unscrew four 12 mm screws that hold the right foot pad with a Philips #2 screwdriver.

    • Unscrew the four 18 mm screws with a Philips #2 screwdriver.

    • Use a long, thin screwdriver to access the two 12 mm screws nearest to the wheel.

  4. S4JVnZqsUGuqaHue
    S4JVnZqsUGuqaHue
    qgv4wkDEGhECigj2

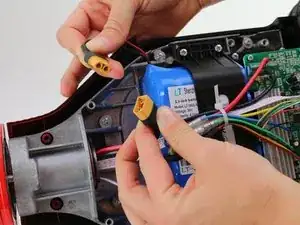

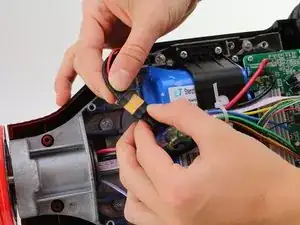

    • Unplug the battery by disconnecting the two pronged black and yellow cable.

  5. pLnxYoDixh3cbAJg
    pLnxYoDixh3cbAJg
    ScHtRkwCPwqPmlsN
    FMtxeW5laAXSBuld

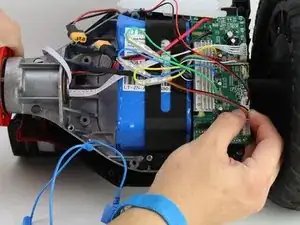

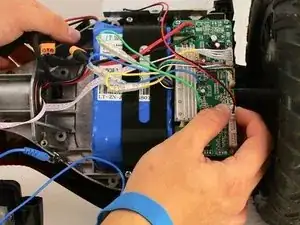

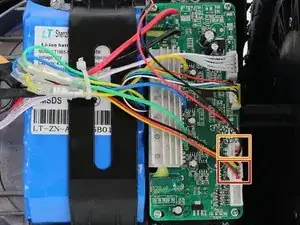

    • Unplug the black, yellow, green and red four pin connector from the circuit board.

    • Unplug the red and black two pin connector from the circuit board.

  6. gXMHPyfJPX2YVVfK
    gXMHPyfJPX2YVVfK
    aop3Bb4ADwJgcIAB

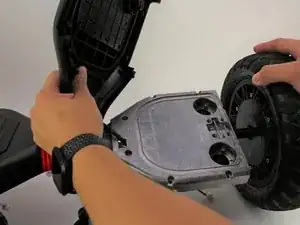

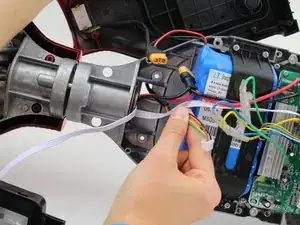

    • Thread the black, yellow, green, and red four pin connector through the opening to the left of the battery.

    • Remove the right foot pad from the hoverboard.

  7. DXevYYDIXShtwVHF

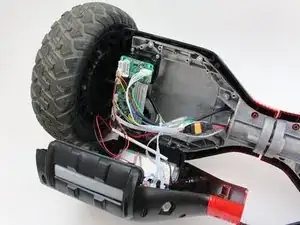

    • Pull the left cover away from the hoverboard.

  8. Y4BGQOhXRTww5v2F
    Y4BGQOhXRTww5v2F
    YTMkLtCZq1QuhISe

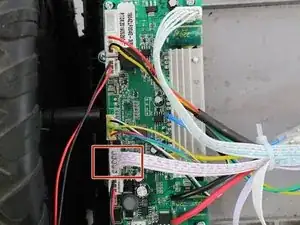

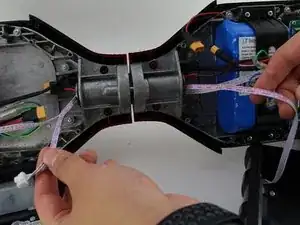

    • Unplug the red and white five pin connector from the circuit board.

    • Thread this connector through the middle cylinder.

    • Remove the right cover from the hoverboard.

  9. QDpHTLbX5CsJl5yD
    QDpHTLbX5CsJl5yD
    IgvmOjTQClZHyB5x

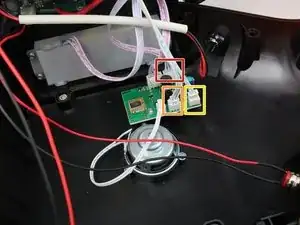

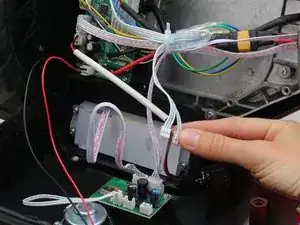

    • Unplug the red and white four pin connector from the speaker circuit board.

    • Unplug the blue and white three pin connector.

    • Unplug the blue and white two pin connector. This is photographed as an example.

  10. pLSNI4Ef4jjjfhRm

    • Remove the left cover from the hoverboard.

  11. ONOVx1qqBPNRxajM
    ONOVx1qqBPNRxajM
    5YUGqBRYCtiuXOsh

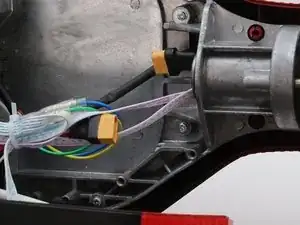

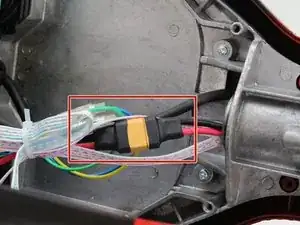

    • Disconnect the two pronged black and yellow cable.

  12. qOidNyHibdFYhSKU
    qOidNyHibdFYhSKU
    yDaUTNgOJoNY3KEg
    pHHnObEWNhggDnMR

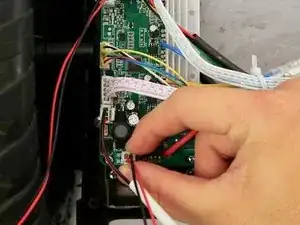

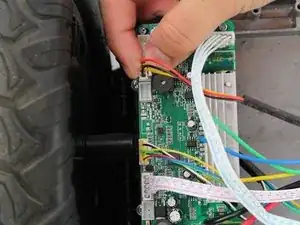

    • Remove three black and red two pin connectors from the left circuit board.

    • Remove the red, yellow, and black three pin connector.

    • Remove zip tie if present.

  13. SmlZnQ1UIO2Aoxxx

    • Unscrew four 12 mm screws from the sides holding the left foot pad with a Phillips #2 screwdriver.

    • Unscrew four 18 mm screws with a Phillips #2 screwdriver.

    • Use a long, thin screwdriver to access the two 12 mm screws nearest to the wheel.

  14. qrgi3CTQGjV4dhSK

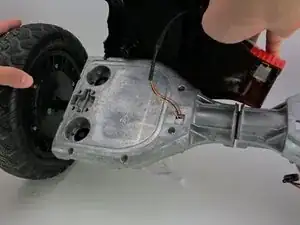

    • Remove the left foot pad from the hoverboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
