Hover-1 Chrome LED Headlights Replacement

Geschrieben von: Nick McGuire
  • Kommentare: 0
Hover-1 Chrome LED Headlights Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide will show you how to replace the LED headlights on the front of the Hover-1 Chrome. You will need a Phillips #2 screwdriver.

  1. 1YtBkwhTJRWbtsAr

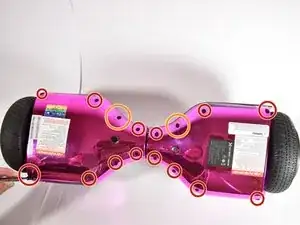

    • Flip the Hover-1 Chrome upside down.

    • Use a Phillips #2 screwdriver to remove the fourteen 14 mm screws from the bottom of the Hover-1.

    • Break the two black tape circles, and remove the two 15 mm Phillips screws underneath.

  2. JuSYdEgMUNvHf6nA

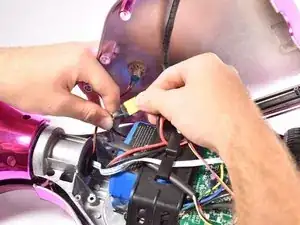

    • Lift the shell without the speaker grille and unplug the battery.

  3. E2ZIOTPvh6GDl6Xh
    E2ZIOTPvh6GDl6Xh
    X4uoYsckLZZL2f2N

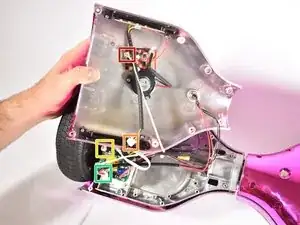

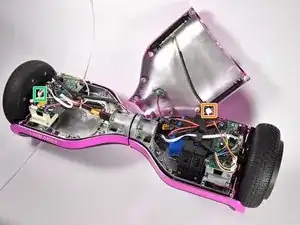

    • Lift the shell with the speaker grille.

    • Unplug the speaker.

    • Unplug the LEDs.

    • Unplug the power button

    • Unplug the charging port.

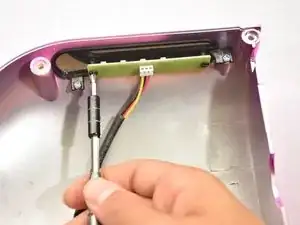

  4. bGQQgmeBw5WKQSli
    bGQQgmeBw5WKQSli
    LXkuWjaOMRn5Ivxl
    ij4iAVepVQWGoRvc

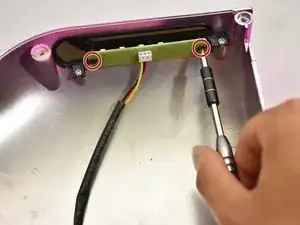

    • Use a Phillips #2 screwdriver to remove the two 2 mm screws on either side of the LEDs.

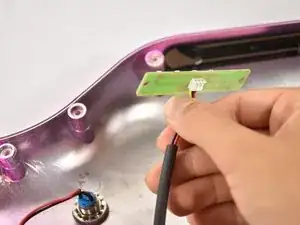

    • Remove the LED board.

    • The LEDs are not symmetrical. This step is for the right side of the board, next to the power button. The left side is covered next.

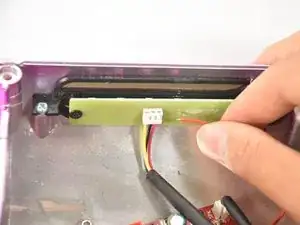

  5. EBi6LXhQ22kodW6D
    EBi6LXhQ22kodW6D
    CxcIBUUGvNTlMdH5

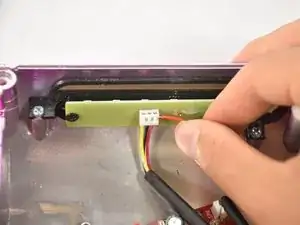

    • Locate the LED headlights on the left side of the board.

    • Pull the red wire attached to the LEDs perpendicular to the other wires to disconnect it.

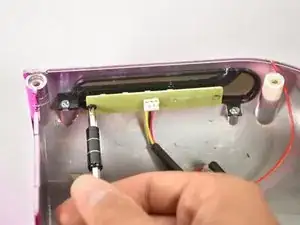

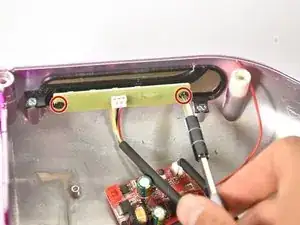

  6. OISC3x4YEEkZiLeR
    OISC3x4YEEkZiLeR
    WdisaisWNpUAqrNS
    pUZdFIIsWANkkfDb

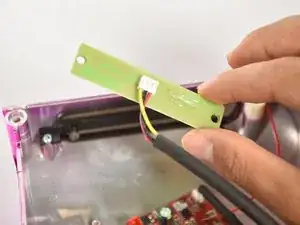

    • Use a Phillips #2 screwdriver to remove the two 2 mm screws on either side of the LEDs.

    • Remove the LED board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
