Hover-1 Eagle Front Wheel Replacement

Geschrieben von: Andrew Gaskell
  • Kommentare: 17

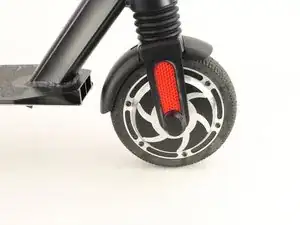

Hover-1 Eagle Front Wheel Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

20 - 30 Minuten

Einleitung

This guide will walk you through how to replace a faulty or worn-down front wheel on a Hover-1 Eagle scooter. You should replace your front wheel if your front wheel has been worn down or damaged. To determine if you need to replace your front wheel, refer to our Troubleshooting Guide.

  1. 1gXHSCv1ErIJDEBH

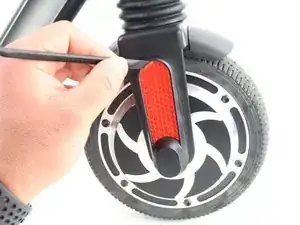

    • Wedge the spudger underneath the red reflective sticker and peel it back.

  2. Vwf2iChyd6u51bX3
    Vwf2iChyd6u51bX3
    3wV2lTDSBO2SI4oV

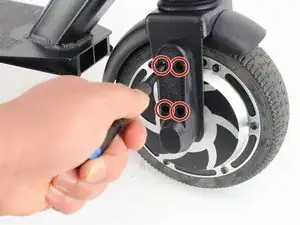

    • Remove the four 2mm screws with a Phillips #2 screwdriver.

  3. S4BpZ5tNRSlJrSaW

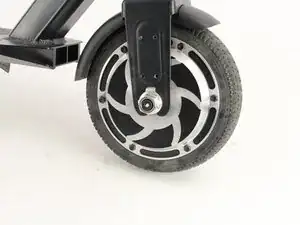

    • Remove the plastic axle cover by sliding the cover downwards.

  4. eDxYPEbrrHaThhPt

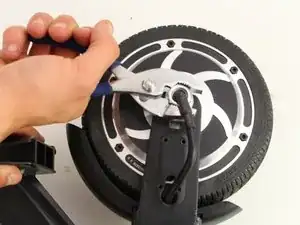

    • Use pliers to remove the locknut.

  5. Ik2WaJlKYUMdSBvg

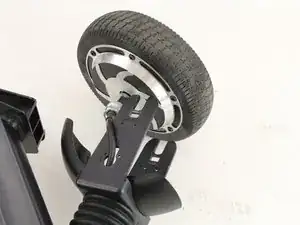

    • Slide the wheel out in a downwards motion to remove it from the fork.

    How to take the cable out?

    Chri Fodor -

    same thing i wanna know

    it'sluigiplays 87 -

    But how do you install it, you removed it ok cool . Now how do you connect the wires to replacement new wheel motor

    JAY -

    It’s a teardown. You need to take the control panel and handlebar assembly off, and then unplug the motor inputs and temperature sensor from the controller. There are four hex screws near the top that you need to remove, and then there is a cluster of wires above the control module, which is a silver trapezoid-ish metal box with connectors coming out of it. The shiethed black cable coming up past the controller and battery contains the motor and temp sensor cables, unplug them. You will probably have to remove the controller and battery to get the cable out anyway.

    sad town -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Andrew Gaskell

Mitglied seit: 23/01/20

903 Reputation

13 Kommentare

Good afternoon.

And how do you remove the cables?

Diogo Silva -

i would like to know the same thing

it'sluigiplays 87 -

where do i get the front wheel front i cant find where to buy a new front wheel

leon watts -

I would like to know as well how to take the cable out from harness. Do you have to remove everything from the battery and disconnect the throttle as well?

Mk Sub-zero -

Does anybody know how to fix the handlebar/front wheel alignment?

robandkim -

Did you ever get an answer to this question regarding the Handlebar/Front wheel Alignment ?

Joellen Burton -

Does anyone know where I can buy a replacement front wheel for a Hover-1 Alpha?

David -

Is it possible to swap the front tire to the rear tire so it's rear wheel drive

Eric Andersen -

Is it possible to change the front wheel drive tire to the back so it's rear wheel drive

Eric Andersen -

Can you swap the front tire with the rear tire so it's rear wheel drive

Eric Andersen -

I'm so sorry is there any way to manipulate the speed controller to get more excessive speed and I know this risk of burning things up but I would like to know if it's possible thank you

Eric Andersen -

This would be the older model pioneer hover one how to get more speed unplugged the temperature plug which would be the white one that I guess increase the speed but I don't see it I'm sorry if I'm wasting your time just trying to make this single faster and have it rear wheel drive I think it would be more fun

Eric Andersen -

Thanks for your help and time much appreciated

Eric Andersen -
