Hover-1 Eagle LED Headlight Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

20 - 30 Minuten

Einleitung

This guide will walk you through how to replace a faulty or non-functional LED headlight on a Hover-1 Eagle scooter. You should replace your headlight if your headlight no longer turns on or appears cracked or damaged. To determine if you need to replace your headlight, refer to our Troubleshooting Guide.

  1. sdpJ5KYDhYSWwwIp
    sdpJ5KYDhYSWwwIp
    e1Guf6dCuI1bn5NN
    gYEEGxUjTKVAZAWC

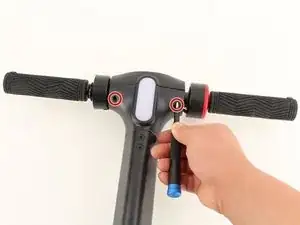

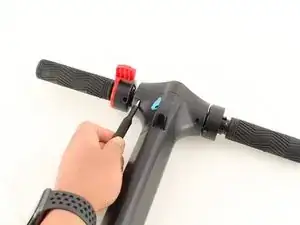

    • Remove the four screws from the bottom side of the display housing using a Phillips #2 screwdriver.

  2. sqcxNwWSkTFfTh2n
    sqcxNwWSkTFfTh2n
    cUQYrrOnhbnKoS1R
    csBZjBEk24ULqdQs

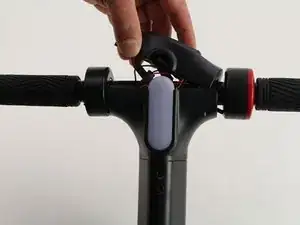

    • Carefully remove the top of the housing containing the display screen.

    • Remove the top of the housing slowly to avoid damaging the wires.

  3. NAOJjKO6MoRuwLTx
    NAOJjKO6MoRuwLTx
    CTRAPuwY3CPOEONB

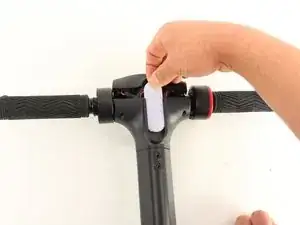

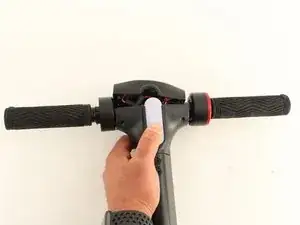

    • Slide the LED light cover upwards out of the display housing

    • Be gentle when removing the LED light cover to avoid damaging the LED's connecting wires.

    • The LED circuit board should slide out with the LED light cover.

    • To reassemble, align the prongs of the LED cover with the holes in the LED circuit board.

  4. hMal4SECXcB5snEA
    hMal4SECXcB5snEA
    Q1rFDCEn2FmguLg2
    KJG3JtyaNETg1LH1

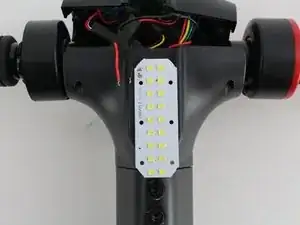

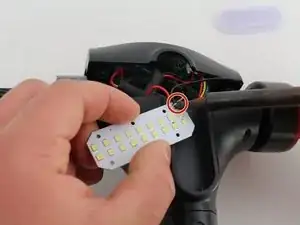

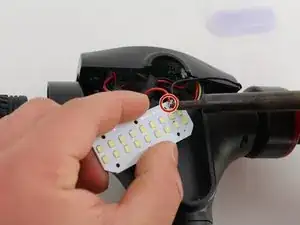

    • Using a soldering iron, desolder the black and red wires from the LED circuit board.

    • To reassemble, solder the same black and red wires onto the new LED circuit board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
