Hover-1 Folding E-Scooter Brake Switch Replacement

Geschrieben von: Brittani Kealoha

Kommentare: 8

Hover-1 Folding E-Scooter Brake Switch Replacement

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

9 - 15 Minuten

Einleitung

This guide is designed to help you replace a broken or damaged brake switch. All you will need is a #0 and #2 Phillips screwdriver to remove the screws in this guide

Werkzeuge

Schritt 1

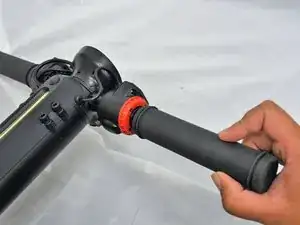

Twist the handle with the red level counterclockwise to remove it from the scooter's main body.
You will need to twist the handle clockwise reattach it to the scooter's main body.

Schritt 2

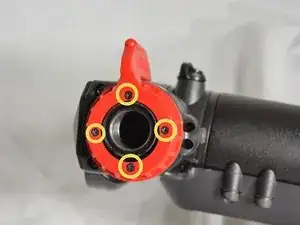

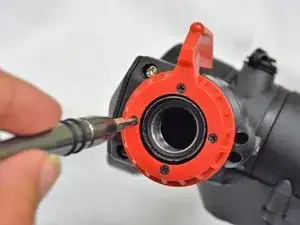

Remove the four 5 mm screws twisting counterclockwise with a Phillips #0 screwdriver.
These screws are small and easy to lose.
When inserting for reassembly the screws twist clockwise to secure.

My Hover-1 had a allen wrench screw in the side, When I losened that I could get the brake switch off. It did not have philips screws.

I still can’t locate parts to replace the brake. It’s a 3 wife connectorised part but can’t be found.

Jim Stack - 15/07/20

Schritt 3

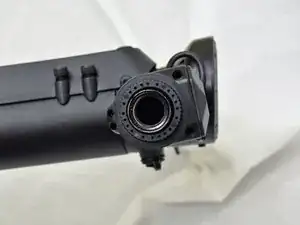

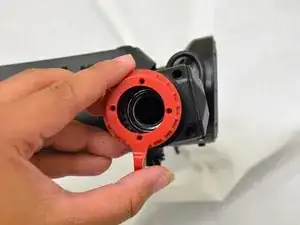

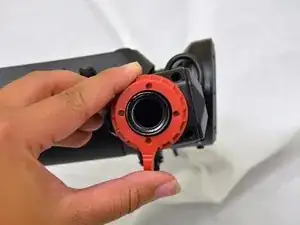

Remove the red brake switch by sliding it off the main body.
When putting the brake switch back make sure to align the tab with the throttle switch.

I need the part I broke my sis scooter

Captainkbp04 Gaming - 10/08/20

Abschluss

To reassemble your device, follow these instructions in reverse order.

6 Kommentare

Do you know where I can find just the handle? They sent me a L and R but the L was stripped and won't screw in and the R will screw into both sides so I need either a L or R at this point I don't care i just can't find one and its “out of warranty”

Angela Renteria - 13/05/20

Hi, I’m looking for a Hover-1 Eagle left handle? Do you where can I find it? Thanks

Keila Talarico - 10/06/20

looking for a new brake switch a hover-1 scooter,my grandson crashed and broke the brake switch. please help

Neal Weeks - 09/08/20
