Hover-1 Folding E-Scooter Rear Wheel Replacement

Geschrieben von: Luke Imai
  • Kommentare: 2
Hover-1 Folding E-Scooter Rear Wheel Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 25 Minuten

Einleitung

This guide is created to replace a damaged or broken back wheel. Tools required are a Hex Bit 4.0 tool, a bit extender, and an allen key.

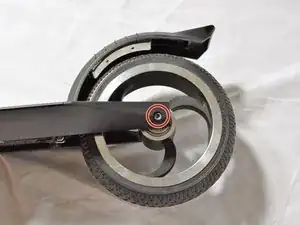

  1. 1mjfeAVWE3xPQoU3
    1mjfeAVWE3xPQoU3
    ZnAN2xCVbsIGhSSx

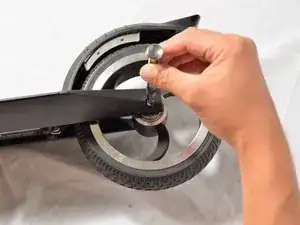

    • Remove either of the two 0.2 mm axle screws by using a hex bit 4.0 by turning clockwise.

    • The two screws are the same thread so find the screw that has the least torque. Only that screw will be able to removed in this step.

    • Turn the hex bit 4.0 counterclockwise to reassemble the axle screws.

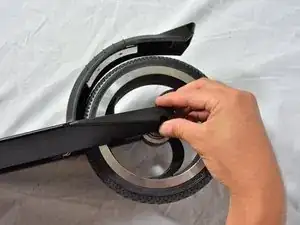

  2. 4s5RWN5vRnJLpSP3
    4s5RWN5vRnJLpSP3

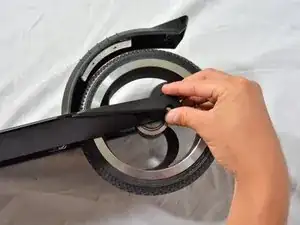

    tAZYD32KHU6jNfTF

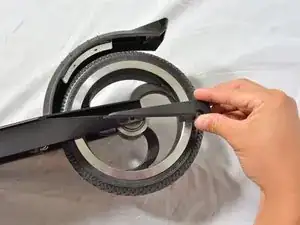

    VGx22kUTTphCeqos

    • Slide off the plastic side panel.

    What is the Pat number of this plastic side panel?

    bobdub -

  3. MBWbBg3s4trjfhEv

    • Use a hex bit 4.0 to screw back in the 0.2 mm screw as tightly as possible by turning clockwise.

    • You will need to hold the other screw you are not replacing with an additional hex bit 4.0, so that the screws don't spin freely.

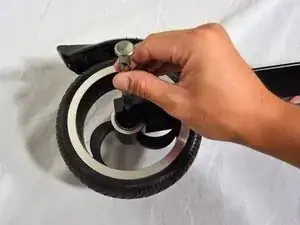

  4. OANoFASwOVUsgXDN

    • Flip over the scooter and use the hex bit 4.0 to remove the other 0.2 mm screw.

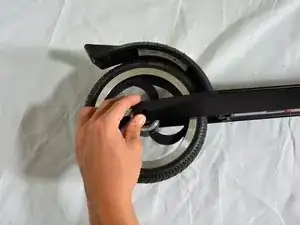

  5. 3qJ5B6mFOUiPmCrf
    3qJ5B6mFOUiPmCrf

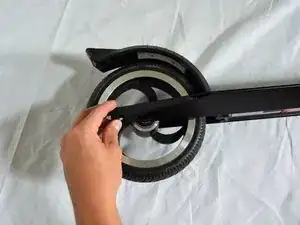

    AbnChPKh3WYJGigs
    mXfrHDqIjevkf522

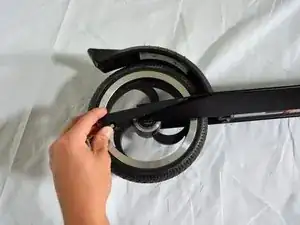

    • Slide off the other plastic side panel.

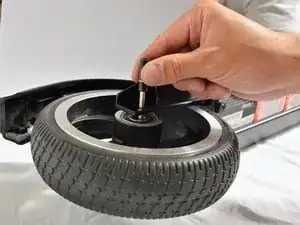

  6. AMIL5eV1TTnLBIqA

    • On the same side you removed the screw, use the bit extender to push down on the axle inside the wheel.

    • The axle pops out and the wheel easily comes off.

    • Two washers will pop out with the axle.

Abschluss

To reassemble your device, follow these instructions in reverse order.
